MRF89XAM9A Series

Catalog

SUB-GHZ TRANSCEIVER MODULE, SPI, 2.1 V TO 3.6 V

Part	Current - Transmitting [Max]	Current - Transmitting [Min]	Power - Output	Serial Interfaces	Utilized IC / Part	Frequency	Voltage - Supply [Min]	Voltage - Supply [Max]	Data Rate	Current - Receiving	Package / Case	Sensitivity	Operating Temperature [Max]	Operating Temperature [Min]	RF Family/Standard	Modulation	Mounting Type	Antenna Type	Frequency [Min]	Frequency [Max]

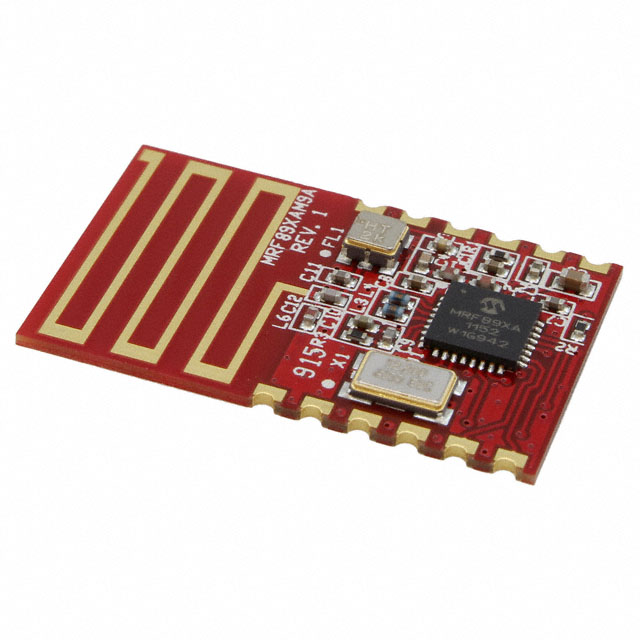

Microchip Technology MRF89XAM9A-I/RM	25 mA	16 mA	12.5 dBm	SPI	MRF89XAM9A	915 MHz	2.1 V	3.6 V	200 kbps	3 mA	Module	-111 dBm	85 °C	-40 °C	General ISM < 1GHz	FSK OOK	Surface Mount	Integrated Trace

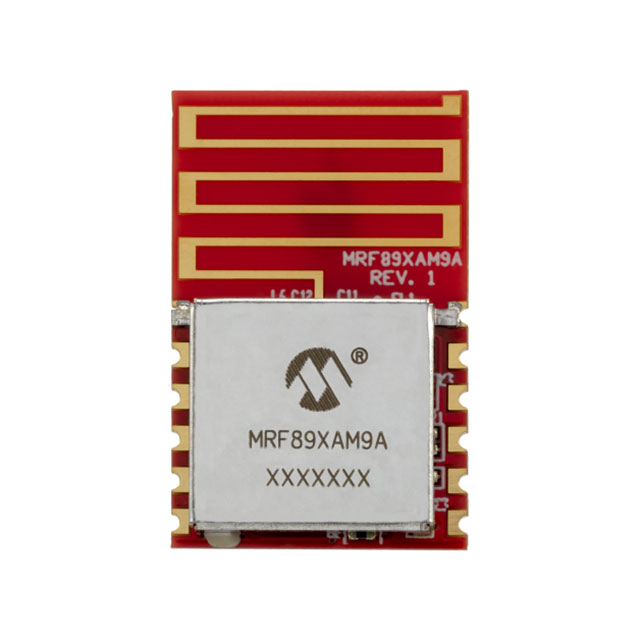

Microchip Technology MRF89XAM9AT-I/RM	25 mA	16 mA	12.5 dBm	SPI	MRF89XAM9A		2.1 V	3.6 V	200 kbps	3 mA	12-SMD Module	-111 dBm	85 °C	-40 °C	General ISM < 1GHz	FSK OOK	Surface Mount	Integrated Trace	902 MHz	928 MHz

Catalog

Key Features

• * Module designed from the MRF89XA integrated ultra low-power, Sub-GHz transceiver IC

• * Supports proprietary Sub-GHz wireless protocols

• * Simple, SPI Interface with Interrupts

• * Small size: 0.7" x 1.1" (17.8 mm x 27.9 mm), surface mountable

• * Integrated crystal, internal voltage regulator, matching circuitry and Printed Circuit Board (PCB) antenna

• * Easy integration into final product: minimize product development, quicker time to market

• * Compatible with Microchip’s Microcontroller families (PIC16, PIC18, PIC24, dsPIC33 and PIC32)

• * End equipment using this module must be Regulatory certified for RF Emissions compliance

Description

MRF89XAM9A is a 915MHz radio transceiver module. The MRF89XAM9A has an integrated PCB antenna, matching circuitry, and supports Microchip's proprietary protocol MiWi™ Development Environment. The MRF89XAM9A module connects to hundreds of PIC® microcontrollers via a 4-wire SPI interface and is an ideal solution for low power wireless sensor networks, home automation, building automation and consumer applications.
