FP35R12 Series

Manufacturer: INFINEON

Catalog

THE FP35R12W2T7_B11 IS A PIM IGBT7 - T7 MODULE IN A EASYPIM™ 2B HOUSING FOR INDUSTRIAL APPLICATIONS UP TO 1200 V AND 35 A.

Part	Package / Case	Vce(on) (Max) @ Vge, Ic	Mounting Type	Power - Max [Max]	IGBT Type	Current - Collector (Ic) (Max) [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]	Input	Supplier Device Package	Current - Collector Cutoff (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Input Capacitance (Cies) @ Vce	Configuration
INFINEON FP35R12W2T7B11BOMA1	Module	1.6 V	Chassis Mount	20 mW	Trench Field Stop	35 A	1200 V	Three Phase Bridge Rectifier	AG-EASY2B-2	5.8 µA	175 °C	-40 °C	6.62 nF 25 V	Three Phase Inverter

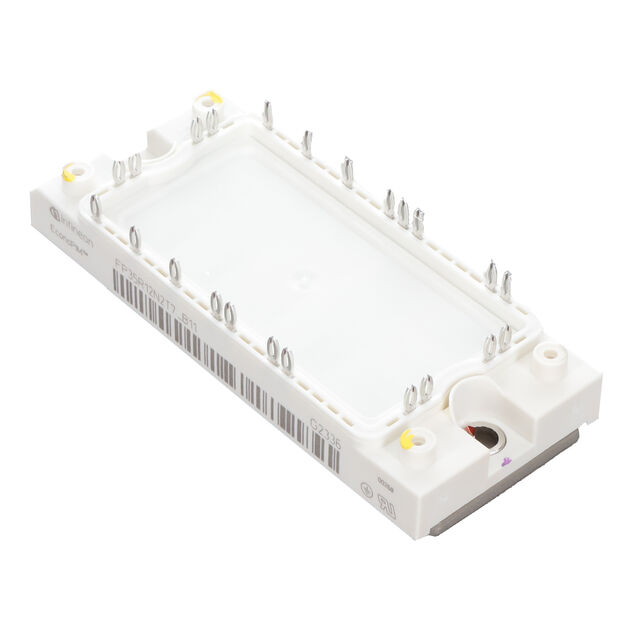

INFINEON FP35R12N2T7B11BPSA2	Module	1.6 V	Chassis Mount	20 mW	Trench Field Stop	35 A	1200 V	Three Phase Bridge Rectifier	AG-ECONO2B	7 µA	175 °C	-40 °C	6.62 nF 25 V	Three Phase Inverter

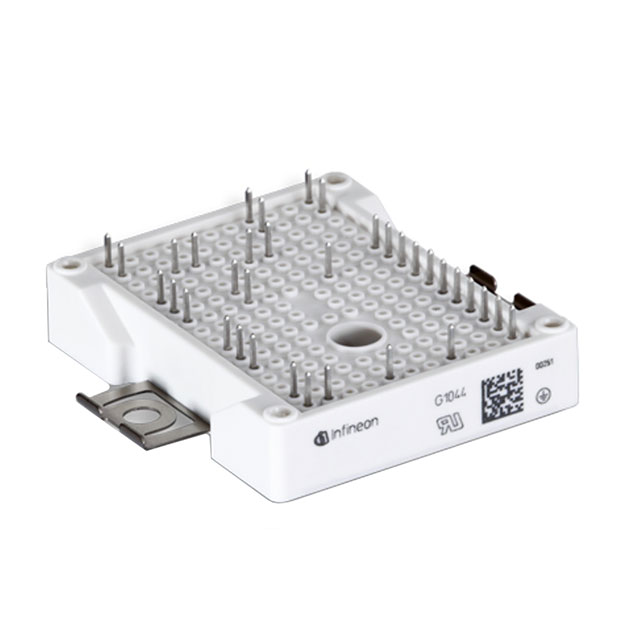

INFINEON FP35R12W2T4BOMA1	Module	2.25 V	Chassis Mount	215 W	Trench Field Stop	54 A	1200 V	Standard	Module	1 mA	150 °C	-40 C	2 nF	Three Phase Inverter
INFINEON FP35R12W2T4B11BOMA1	Module	2.25 V	Chassis Mount	215 W	Trench Field Stop	54 A	1200 V	Standard	Module	1 mA	150 °C	-40 °C	2 nF	Three Phase Inverter
INFINEON FP35R12KT4B11BOSA1	Module	2.15 V	Chassis Mount	210 W	Trench Field Stop	35 A	1200 V	Standard	Module	1 mA	150 °C	-40 C	2 nF	Three Phase Inverter
INFINEON FP35R12W2T4PB11BPSA1	Module	2.2 V	Chassis Mount	20 mW	Trench Field Stop	70 A	1200 V	Three Phase Bridge Rectifier	Module	1 mA	150 °C	-40 C	2 nF	Three Phase Inverter

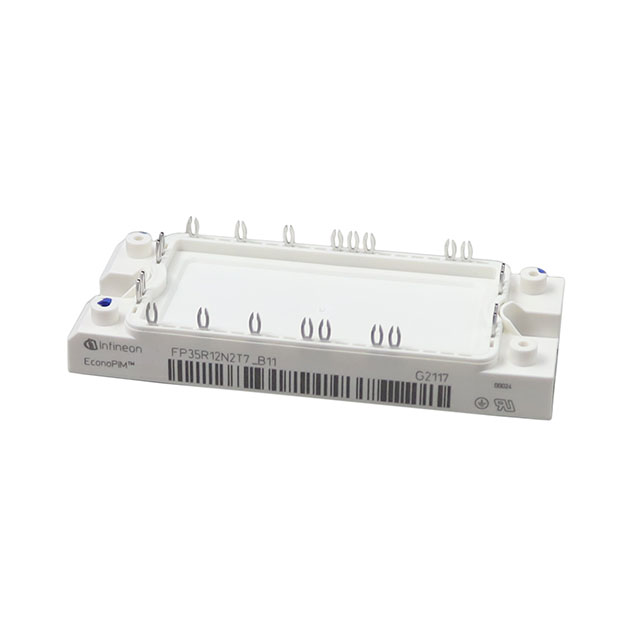

INFINEON FP35R12N2T7B11BPSA1	Module	1.6 V	Chassis Mount	20 mW	Trench Field Stop	35 A	1200 V	Three Phase Bridge Rectifier	AG-ECONO2B	7 µA	175 °C	-40 °C	6.62 nF 25 V	Three Phase Inverter
INFINEON FP35R12KT4BPSA1	Module	2.25 V	Chassis Mount	210 W	Trench Field Stop	25 A	1200 V	Three Phase Bridge Rectifier	AG-ECONO2-8	1 mA	150 °C	-40 °C	2 nF	Three Phase Inverter
INFINEON FP35R12W2T4PBPSA1	Module	2.25 V	Chassis Mount	20 mW	Trench Field Stop	70 A	1200 V	Three Phase Bridge Rectifier	Module	1 mA	150 °C	-40 C	2 nF	Three Phase Inverter
INFINEON FP35R12N2T7BPSA2	Module	1.6 V	Chassis Mount	20 mW	Trench Field Stop	35 A	1200 V	Three Phase Bridge Rectifier	AG-ECONO2B	7 µA	175 °C	-40 °C	6.62 nF 25 V	Three Phase Inverter
