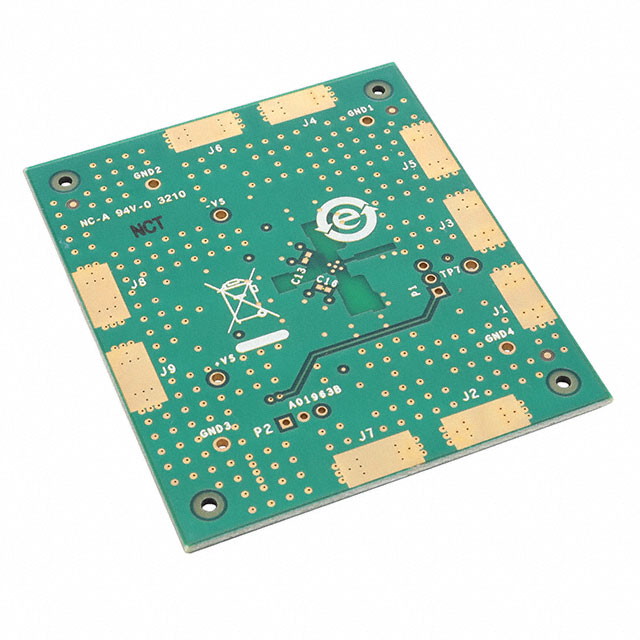

ADA4855-3 Series
Single Supply, High Speed, Rail-to-Rail Output, Triple Op Amp
Manufacturer: Analog Devices
Catalog
Single Supply, High Speed, Rail-to-Rail Output, Triple Op Amp
Key Features
• Voltage feedback architecture
• Rail-to-rail output swing: 0.1 V to 4.9 V
• High speed amplifiers410 MHz, −3 dB bandwidth, G = 1210 MHz, −3 dB bandwidth, G = 2Slew rate: 870 V/μs53 MHz, 0.1 dB large signal flatness5.3 ns settling time to 0.1% with 2 V step
• High input common-mode voltage range−VS− 0.2 V to +VS− 1 V
• Supply range: 3 V to 5.5 V
• Differential gain error: 0.01%
• Differential phase error: 0.01°
• Low power7.8 mA/amplifier typical supply currentPower-down feature
• Available in 16-lead LFCSP
Description
AI
The ADA4855-3 (triple) is a single-supply, rail-to-rail output operational amplifier. It provides excellent high speed performance with 410 MHz, −3 dB bandwidth and a slew rate of 870 V/μs. It has a wide input common-mode voltage range that extends from 0.2 V below ground to 1 V below the positive rail.In addition, the output voltage swings within 100 mV of either supply rail, making this rail-to-rail operational amplifier easy to use on single-supply voltages as low as 3.3 V.The ADA4855-3 offers a typical low power of 7.8 mA per amplifier and is capable of delivering up to 57 mA of load current. It also features a power-down function for power sensitive applications that reduces the supply current down to 1 mA.The ADA4855-3 is available in a 16-lead LFCSP and is designed to work over the extended industrial temperature range of −40°C to +105°C.ApplicationsProfessional videoConsumer videoImagingInstrumentationBase stationsActive filtersData Sheet, Rev. 0, 11/2008
