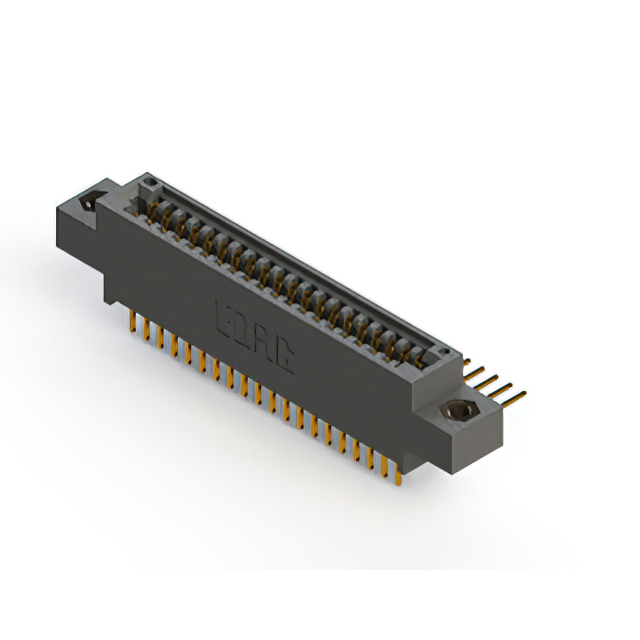

395-040 Series
Manufacturer: EDAC Inc.
Beta
⌘K
.100" (2.54MM) PITCH CARD EDGE CONNECTOR ROHS COMPLIANT: YES
| Part | Termination Rows [custom] | Material - Insulation | Contact Material | Pitch | Pitch | Operating Temperature [Min] | Operating Temperature [Max] | Card Thickness [Max] | Card Thickness [Min] | Mounting Type | Flange Feature [diameter] | Flange Feature [diameter] | Number of Positions/Bay/Row | Number of Positions | Termination | Gender | Number of Rows [custom] | Contact Finish | Card Type | Read Out | Contact Type | Contact Finish Thickness | Contact Finish Thickness | Color | Termination Rows | Number of Rows | Number of Positions/Bay/Row [custom] | Flange Feature | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 2 | Polyester Thermoplastic | Copper Alloy | 0.1 " | 2.54 mm | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | 0.156 " | 3.96 mm | 20 Bay/Row | 40 | Wire Wrap | Female | 2 | Gold | Non Specified - Dual Edge | Dual | Cantilever | 0.25 Ám | 10 Áin | Black | |||||
 EDAC Inc. | Polyester Thermoplastic | Copper Alloy | 0.1 " | 2.54 mm | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | 0.128 " | 3.25 mm | 40 | Wire Wrap | Female | Gold | Non Specified - Single Edge | Single | Cantilever | 0.25 Ám | 10 Áin | Black | 1 | 1 | 40 | Side Mount Opening Unthreaded | ||||
 EDAC Inc. | 2 | Polyester Thermoplastic | Copper Alloy | 0.1 " | 2.54 mm | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | 20 Bay/Row | 40 | Solder | Female | 2 | Gold | Non Specified - Dual Edge | Dual | Cantilever | 0.25 Ám | 10 Áin | Black | 4-40 Threaded Insert Top Mount Opening | Card Guides | |||||
 EDAC Inc. | 2 | Polyester Thermoplastic | Copper Alloy | 0.1 " | 2.54 mm | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | 20 Bay/Row | 40 | Wire Wrap | Female | 2 | Gold | Non Specified - Dual Edge | Dual | Cantilever | 0.25 Ám | 10 Áin | Black | |||||||
 EDAC Inc. | Polyester Thermoplastic | Copper Alloy | 0.1 " | 2.54 mm | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | 40 | Wire Wrap | Female | Gold | Non Specified - Single Edge | Single | Cantilever | 0.25 Ám | 10 Áin | Black | 1 | 1 | 40 | 4-40 Threaded Insert Top Mount Opening | Card Guides | |||||
 EDAC Inc. | 2 | Polyester Thermoplastic | Copper Alloy | 0.1 " | 2.54 mm | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Right Angle Through Hole | 20 Bay/Row | 40 | Solder | Female | 2 | Gold | Non Specified - Dual Edge | Dual | Cantilever | 0.25 Ám | 10 Áin | Black | 4-40 Threaded Insert Top Mount Opening | Card Guides | |||||
 EDAC Inc. | 2 | Polyester Thermoplastic | Copper Alloy | 0.1 " | 2.54 mm | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | 20 Bay/Row | 40 | Wire Wrap | Female | 2 | Gold | Non Specified - Dual Edge | Dual | Cantilever | 0.25 Ám | 10 Áin | Black | 4-40 Threaded Insert Top Mount Opening | Card Guides | |||||
 EDAC Inc. | 2 | Polyester Thermoplastic | Copper Alloy | 0.1 " | 2.54 mm | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | 0.128 " | 3.25 mm | 20 Bay/Row | 40 | Wire Wrap | Female | 2 | Gold | Non Specified - Dual Edge | Dual | Cantilever | 0.25 Ám | 10 Áin | Black | Side Mount Opening Unthreaded | ||||
 EDAC Inc. | Polyester Thermoplastic | Copper Alloy | 0.1 " | 2.54 mm | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | 0.116 " | 2.95 mm | 40 | Solder | Female | Gold | Non Specified - Single Edge | Single | Cantilever | 0.25 Ám | 10 Áin | Black | 1 | 1 | 40 | Floating Bobbin Flush Mount | ||||
 EDAC Inc. | 2 | Polyester Thermoplastic | Copper Alloy | 0.1 " | 2.54 mm | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Right Angle Through Hole | 20 Bay/Row | 40 | Solder | Female | 2 | Gold | Non Specified - Dual Edge | Dual | Cantilever | 0.25 Ám | 10 Áin | Black | M3 Threaded Insert Top Mount Opening |
