HZ Series

Catalog

FERRITE BEADS BROADBAND,1LN 0603,HZ

Part	Impedance @ Frequency	Height (Max) [z]	Height (Max) [z]	Package / Case	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Filter Type	Current Rating (Max) [Max]	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Number of Lines	DC Resistance (DCR) (Max)	Current Rating (Max)	DC Resistance (DCR) (Max) [Max]	Height (Max) [Max] [z]	Size / Dimension [y]

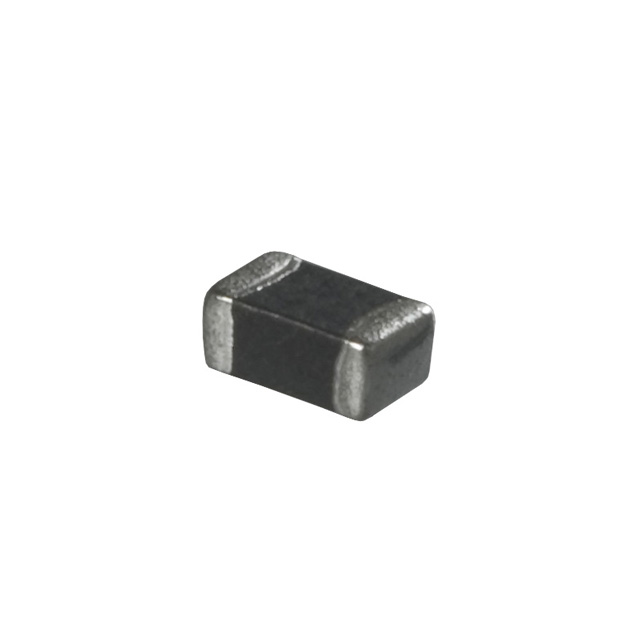

Laird Technologies EMI HZ0603A102R-10	1 kOhms	0.031 in	0.8 mm	1608 Metric	0603	125 °C	-40 C	Power Signal Line	100 mA	Surface Mount	0.031 in	1.6 mm	0.8 mm	0.063 "	1	1 Ohm
Laird Technologies EMI HZ0603A252R-10	2500 Ohms	0.031 in	0.8 mm	1608 Metric	0603	125 °C	-40 C	Signal Line		Surface Mount	0.031 in	1.6 mm	0.8 mm	0.063 "	1		50 mA	1.5 Ohm
Laird Technologies EMI HZ1206D102R-10	1 kOhms		1.1 mm		1206 (3216 Metric)	125 °C	-40 C	Power Signal Line	400 mA	Surface Mount	0.063 "	3.2 mm		0.126 "	1			400 mOhm	0.043 in	1.6 mm
