TLS805 Series

Manufacturer: INFINEON

Catalog

TLS805B1LDV BOARD

Part	Supplied Contents	Utilized IC / Part	Board Type	Contents	Voltage - Input [Max]	Voltage - Input [Min]	Channels per IC	Regulator Type	Current - Output	Output Configuration	Mounting Type	Supplier Device Package	Current - Supply (Max)	Operating Temperature [Min]	Operating Temperature [Max]	Control Features	PSRR	Protection Features	Voltage - Input (Max) [Max]	Voltage - Output (Min/Fixed)	Grade	Current - Quiescent (Iq)	Qualification	Voltage Dropout (Max) [Max]	Package / Case	Number of Regulators	Current - Supply (Max) [Max]	Output Type	Voltage - Output (Max) [Max]	Voltage - Output

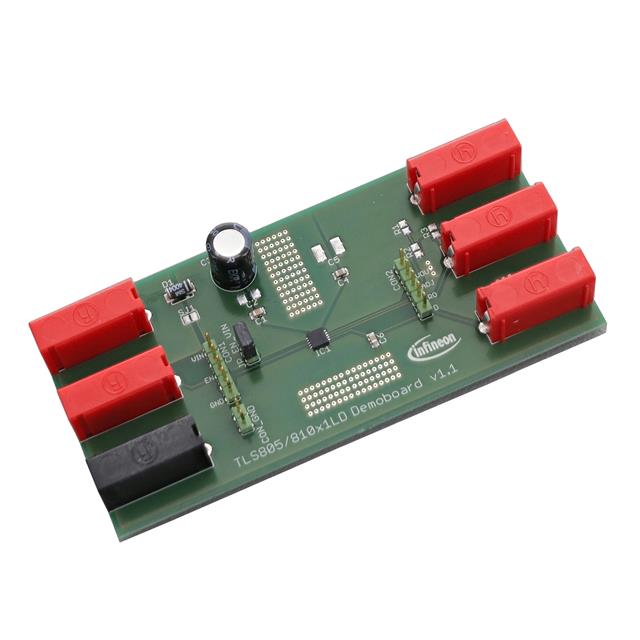

INFINEON TLS805B1LDVBOARDTOBO1	Board(s)	TLS805B1 TLS805B1LDV	Fully Populated	Board(s)	42 V	3 V	1	Positive Adjustable	50 mA
INFINEON TLS805B1LDV33XUMA1									50 mA	Positive	Surface Mount Wettable Flank	PG-TSON-10-2	12 µA	-40 °C	150 °C	Enable	60 dB	Over Current Over Temperature	42 V	3.3 V	Automotive	8 ÁA	AEC-Q100	0.35 V	10-TFDFN Exposed Pad	1
INFINEON TLS805B1LDVXUMA1									50 mA	Positive	Surface Mount	PG-TSON-10		-40 °C	150 °C	Enable	60 dB	Over Current Over Temperature Short Circuit	42 V	1.2 V	Automotive	1 µA	AEC-Q100	0.3 V	10-TFDFN Exposed Pad	1	11 µA	Adjustable	41.7 V

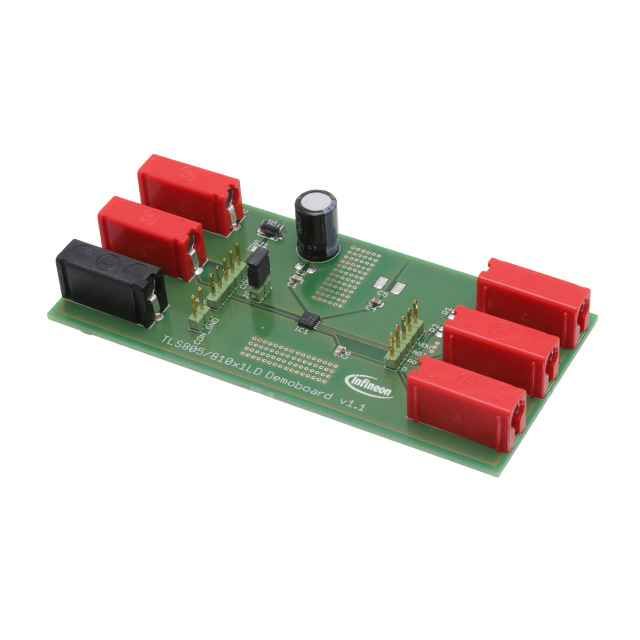

INFINEON TLS805D1LDV50BOARDTOBO1	Board(s)	TLS805D1 TLS805D1LDV50	Fully Populated	Board(s)	40 V	3 V	1	Positive Fixed	50 mA																					5 V

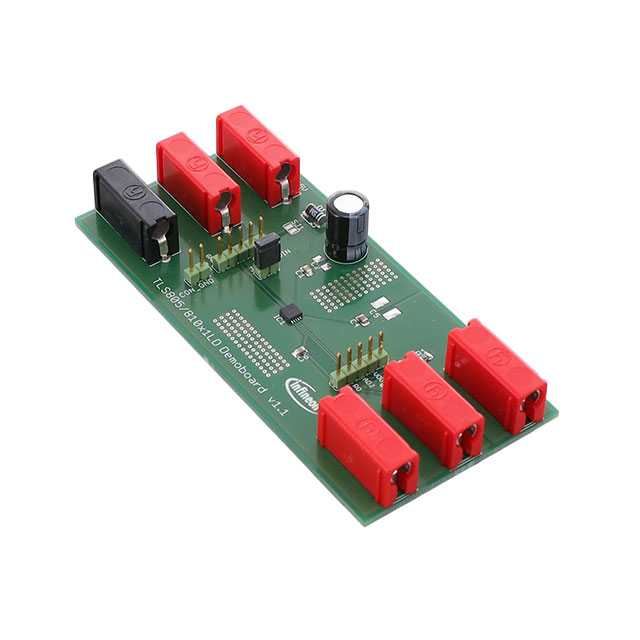

INFINEON TLS805B1LDV50BOARDTOBO1	Board(s)	TLS805B1 TLS805B1LDV50	Fully Populated	Board(s)	42 V	3 V	1	Positive Fixed	50 mA																					5 V
