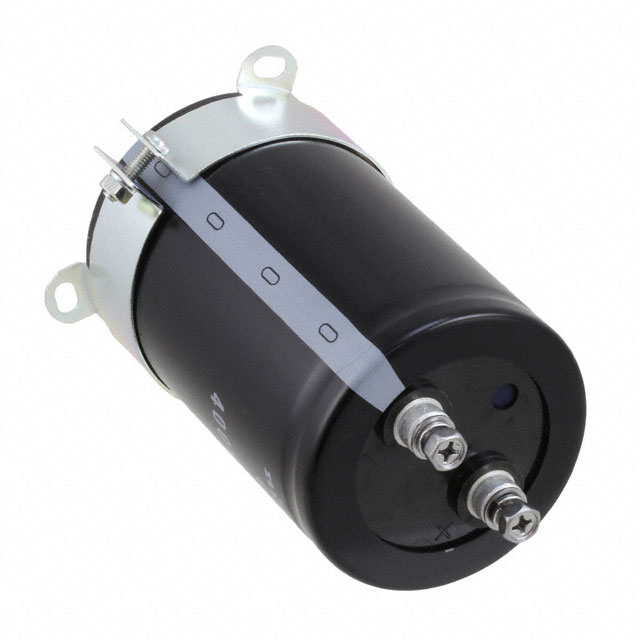

LNY Series

Manufacturer: Nichicon

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - SCREW TERMINAL 6800UF 350VOLTS 0.2

Part	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Mounting Type	Voltage - Rated	Tolerance	Size / Dimension [diameter]	Size / Dimension [diameter]	Applications	Lifetime @ Temp.	Polarization	Capacitance	Lead Spacing	Lead Spacing	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Ripple Current @ High Frequency	Ripple Current @ Low Frequency	Height - Seated (Max)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max)
Nichicon LNY2V682MSEG	85 °C	-40 C	Radial Can - Screw Terminals	Chassis Mount	350 V	20 %	63.5 mm	2.5 in	General Purpose	2000 Hrs	Polar	6800 µF	28.6 mm	1.126 "	125 mm	4.921 "	26.88 A
Nichicon LNY2W682MSEHBB	85 °C	-40 C	Radial Can - Screw Terminals	Chassis Mount	450 V	20 %	76.2 mm	3 in	General Purpose	2000 Hrs	Polar	6800 µF	31.8 mm	1.252 in		6.024 in	27.44 A	19.6 A	153 mm
Nichicon LNY2W152MSEF	85 °C	-40 C	Radial Can - Screw Terminals	Chassis Mount	450 V	20 %	51 mm	2.008 in	General Purpose	2000 Hrs	Polar	1.5 mF	22 mm	0.866 "			9.52 A	6.8 A		3.346 in	85 mm
Nichicon LNY2G822MSEH	85 °C	-40 C	Radial Can - Screw Terminals	Chassis Mount	400 V	20 %	76.2 mm	3 in	General Purpose	2000 Hrs	Polar		31.8 mm	1.252 in			29.68 A	21.2 A			5.906 in	150 mm
Nichicon LNY2G222MSEFBN	85 °C	-40 C	Radial Can - Screw Terminals	Chassis Mount	400 V	20 %	51 mm	2.008 in	General Purpose	2000 Hrs	Polar	2200 µF	22 mm	0.866 "	98 mm	3.858 in	13.44 A	9.6 A
Nichicon LNY2G392MSEG	85 °C	-40 C	Radial Can - Screw Terminals	Chassis Mount	400 V	20 %	63.5 mm	2.5 in	General Purpose	2000 Hrs	Polar	3900 µF	28.6 mm	1.126 "	105 mm	4.134 "	19.88 A	14.2 A
Nichicon LNY2W392MSEHBN	85 °C	-40 C	Radial Can - Screw Terminals	Chassis Mount	450 V	20 %	76.2 mm	3 in	General Purpose	2000 Hrs	Polar	3900 µF	31.8 mm	1.252 in	98 mm	3.858 in	19.6 A	14 A
Nichicon LNY2W821MSEFBB	85 °C	-40 C	Radial Can - Screw Terminals	Chassis Mount	450 V	20 %	51 mm	2.008 in	General Purpose	2000 Hrs	Polar	820 µF	22 mm	0.866 "			6.86 A	4.9 A		2.48 in	63 mm
Nichicon LNY2V272MSEFBN	85 °C	-40 C	Radial Can - Screw Terminals	Chassis Mount	350 V	20 %	51 mm	2.008 in	General Purpose	2000 Hrs	Polar	2700 µF	22 mm	0.866 "			17.08 A	12.2 A		3.661 in	93 mm
Nichicon LNY2G153MSEJBB	85 °C	-40 C	Radial Can - Screw Terminals	Chassis Mount	400 V	20 %	90 mm	3.543 in	General Purpose	2000 Hrs	Polar		31.8 mm	1.252 in			39.62 A	28.3 A		7.598 in	193 mm
