03010SS Series

DC Fans DC Axial Fan, 30x30x10mm, 12VDC, 4.2CFM, Rib Mount, Sleeve Bearing, Lead Wires

Catalog

DC Fans DC Axial Fan, 30x30x10mm, 12VDC, 4.2CFM, Rib Mount, Sleeve Bearing, Lead Wires

Part	Material - Blade	Material - Frame	Voltage Range [Min]	Voltage Range [Max]	Current Rating (Amps)	Lifetime @ Temp.	Width [y]	Size / Dimension [x]	Size / Dimension [z]	Operating Temperature [Max]	Operating Temperature [Min]	Bearing Type	Noise	Voltage - Rated	Air Flow	Air Flow	RPM	Features	Termination	Power (Watts)	Fan Type	Static Pressure	Static Pressure	Weight	Weight
NMB TECHNOLOGIES 03010SS-12L-AA-00	Plastic	Plastic	7 V	13.2 VDC	60 mA	30000 Hrs	10 mm	30 mm	30 mm	70 °C	-10 °C	Sleeve	26 dB	12 VDC	0.098 mł/min	3.5 CFM	8500 RPM	Auto Restart	2 Wire Leads	720 mW	Tubeaxial
NMB TECHNOLOGIES 03010SS-05M-AT-00	Plastic	Plastic	4.5 V	5.5 V		30000 Hrs	10 mm	30 mm	30 mm	70 °C	-10 °C	Sleeve	26 dB	5 V	0.109 m³/min	3.9 CFM	9500 RPM	Auto Restart Speed Sensor (Tach)	3 Wire Leads	0.8 W	Tubeaxial	47.3 Pa	0.19 in H2O

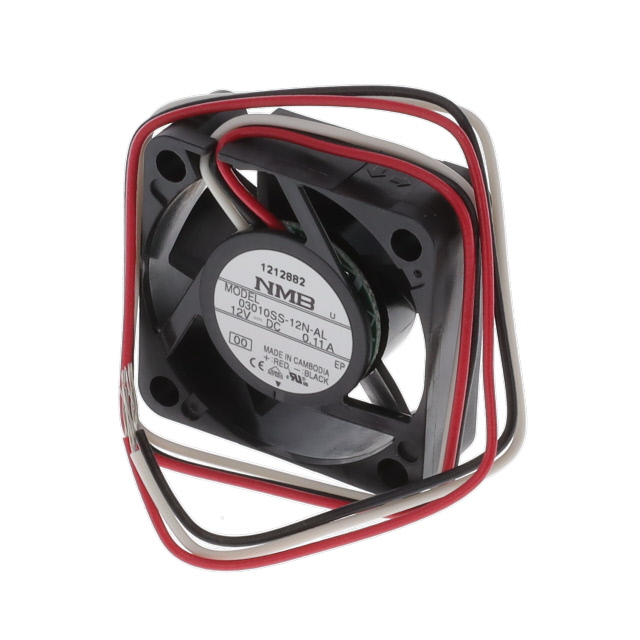

NMB TECHNOLOGIES 03010SS-12N-AL-00	Plastic	Plastic				30000 Hrs	10 mm	30 mm	30 mm	70 °C	-10 °C	Sleeve	28 dB	12 VDC	0.118 m³/min	4.2 CFM	10500 RPM	Auto Restart Locked Rotor Sensor	3 Wire Leads	960 mW	Tubeaxial	59.8 Pa	0.24 in H2O
NMB TECHNOLOGIES 03010SS-12N-AT-00	Plastic	Plastic					10 mm	30 mm	30 mm	70 °C	-10 °C	Sleeve	28 dB	12 VDC	0.118 m³/min	4.2 CFM	10500 RPM	Speed Sensor (Tach)	3 Wire Leads	960 mW	Tubeaxial	59.8 Pa	0.24 in H2O	8.62 g	0.019 lb
NMB TECHNOLOGIES 03010SS-12L-AL-00	Plastic	Plastic	7 V	13.2 VDC	60 mA	30000 Hrs	10 mm	30 mm	30 mm	70 °C	-10 °C	Sleeve	26 dB	12 VDC	0.098 mł/min	3.5 CFM	8500 RPM	Auto Restart Locked Rotor Sensor	3 Wire Leads	720 mW	Tubeaxial
NMB TECHNOLOGIES 03010SS-05M-AL-00	Plastic	Plastic	4.5 V	5.5 V		30000 Hrs	10 mm	30 mm	30 mm	70 °C	-10 °C	Sleeve	26 dB	5 V	0.109 m³/min	3.9 CFM	9500 RPM	Auto Restart Locked Rotor Sensor	3 Wire Leads	0.8 W	Tubeaxial	47.3 Pa	0.19 in H2O
NMB TECHNOLOGIES 03010SS-12M-AL-00	Plastic	Plastic	7 V	13.2 VDC	70 mA	30000 Hrs	10 mm	30 mm	30 mm	70 °C	-10 °C	Sleeve	30 dB	12 VDC	0.109 m³/min	3.9 CFM	9500 RPM	Auto Restart Locked Rotor Sensor	3 Wire Leads	840 mW	Tubeaxial	47.3 Pa	0.19 in H2O
NMB TECHNOLOGIES 03010SS-12L-AT-00	Plastic	Plastic	7 V	13.2 VDC	60 mA	30000 Hrs	10 mm	30 mm	30 mm	70 °C	-10 °C	Sleeve	26 dB	12 VDC	0.098 mł/min	3.5 CFM	8500 RPM	Auto Restart Speed Sensor (Tach)	3 Wire Leads	720 mW	Tubeaxial

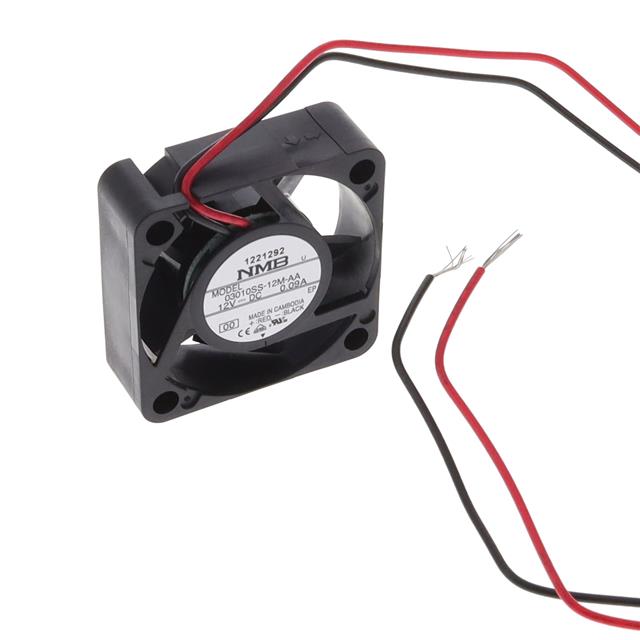

NMB TECHNOLOGIES 03010SS-12M-AA-00	Plastic	Plastic	7 V	13.2 VDC	70 mA	30000 Hrs	10 mm	30 mm	30 mm	70 °C	-10 °C	Sleeve	30 dB	12 VDC	0.109 m³/min	3.9 CFM	9500 RPM	Auto Restart	2 Wire Leads	840 mW	Tubeaxial	47.3 Pa	0.19 in H2O
NMB TECHNOLOGIES 03010SS-12N-AA-00	Plastic	Plastic				30000 Hrs	10 mm	30 mm	30 mm	70 °C	-10 °C	Sleeve	34 dB(A)	12 VDC	0.118 m³/min	4.2 CFM	10500 RPM	Auto Restart	2 Wire Leads	960 mW	Tubeaxial	59.8 Pa	0.24 in H2O
