JR25PK Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K
CONN PLUG HSG MALE 24POS INLINE
| Part | Mounting Type | Note | Insert Material | Type | Housing Color | Connector Type | Shell Size - Insert | Shell Material | Shell Finish | Contact Shape | Contact Type | Features | Material Flammability Rating | Operating Temperature [Max] | Operating Temperature [Min] | Fastening Type | Number of Positions | Contact Size | Orientation | Shielding | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Backshell Material, Plating | Cable Opening | Cable Opening | Color | Voltage Rating | Contact Finish - Mating | Primary Material | Contact Material | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Hirose Electric Co Ltd | Free Hanging (In-Line) | Contacts Not Included | Polycarbonate (PC) | For Male Pins | Silver | Plug Housing | 25 | Aluminum Alloy | Nickel | Circular | Crimp | Backshell Cable Clamp Coupling Nut | UL94 V-0 | 85 °C | -25 °C | Threaded | 24 | 1 mm | Keyed | Unshielded | |||||||||||

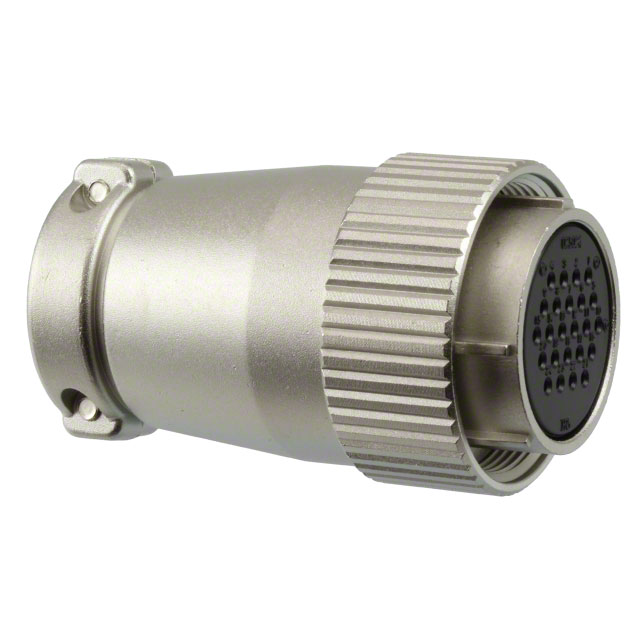

 Hirose Electric Co Ltd | Free Hanging (In-Line) | Phenol Formaldehyde (PF) | Plug Female Sockets | 25 | Aluminum Alloy | Nickel | Backshell Cable Clamp Coupling Nut | UL94 V-0 | 85 °C | -25 °C | Threaded | 24 | Keyed | Unshielded | 78.7 µin | 2 µm | Aluminum Alloy Nickel | 0.709 " | 18 mm | Silver | 250 VAC 350 VDC | Silver | Metal | Copper Alloy | 5 A | ||||||
Hirose Electric Co Ltd | Aluminum Alloy | Nickel | Metal | ||||||||||||||||||||||||||||
Hirose Electric Co Ltd | Aluminum Alloy | Nickel | Metal | ||||||||||||||||||||||||||||

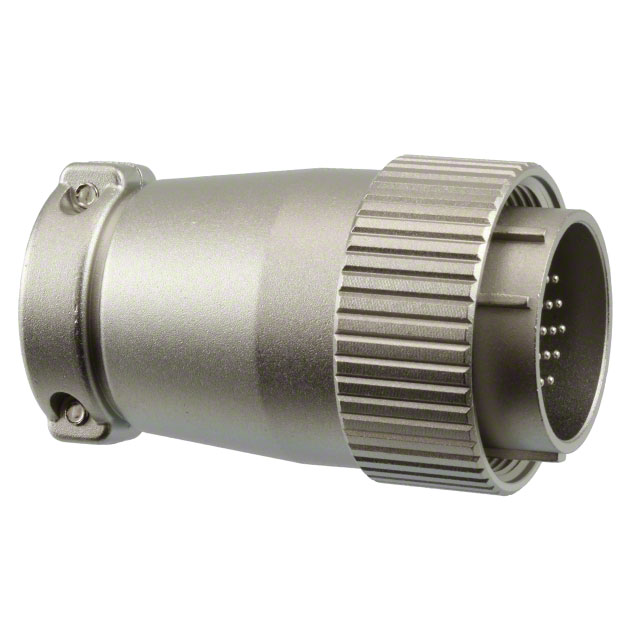

 Hirose Electric Co Ltd | Free Hanging (In-Line) | Phenol Formaldehyde (PF) | Plug Male Pins | 25 | Aluminum Alloy | Nickel | Backshell Cable Clamp Coupling Nut | UL94 V-0 | 85 °C | -25 °C | Threaded | 24 | Keyed | Unshielded | 118.1 µin | 3 µm | Aluminum Alloy Nickel | 0.709 " | 18 mm | Silver | 250 VAC 350 VDC | Silver | Metal | Copper Alloy | 5 A |
