SI8497 Series

Catalog

MOSFET P-CH 30V 13A 6MICROFOOT

Part	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Technology	Mounting Type	FET Type	Vgs(th) (Max) @ Id	Vgs (Max)	Gate Charge (Qg) (Max) @ Vgs	Current - Continuous Drain (Id) @ 25°C	Power Dissipation (Max)	Input Capacitance (Ciss) (Max) @ Vds	Drive Voltage (Max Rds On, Min Rds On) [Max]	Drive Voltage (Max Rds On, Min Rds On) [Min]	Supplier Device Package	Rds On (Max) @ Id, Vgs	Drain to Source Voltage (Vdss)

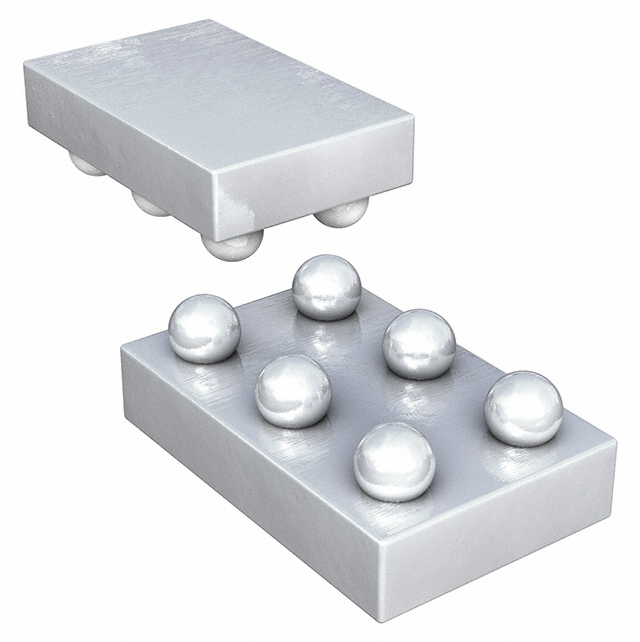

Vishay General Semiconductor - Diodes Division SI8497DB-T2-E1	6-UFBGA	-55 °C	150 °C	MOSFET (Metal Oxide)	Surface Mount	P-Channel	1.1 V	12 V	10 V 49 nC	13 A	2.77 W 13 W	1320 pF	2 V	4.5 V	6-microfoot	53 mOhm	30 V
