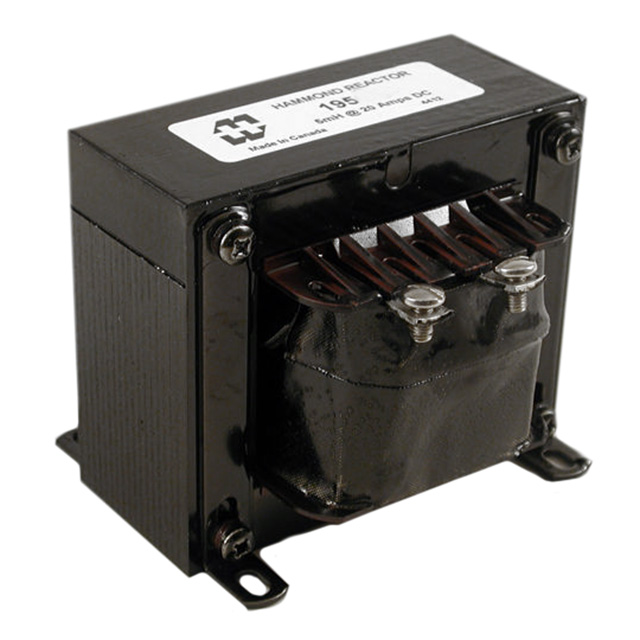

195-196 Series Series
Manufacturer: Hammond Manufacturing
Beta
⌘K
POWER INDUCTORS - LEADED CHOKE, HEAVY CURRENT CHASSIS MOUNT, SINGLE COIL, 1MH @ 30A
| Part | Inductance | Package / Case | Current Rating (Amps) | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [z] | Tolerance | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Shielding | DC Resistance (DCR) | Mounting Type | Inductance - Connected In Parallel | Current Rating - Parallel | Inductance - Connected In Series | Number of Coils | Height [z] | Height [z] | Current Rating - Series | Height - Seated (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hammond Manufacturing | 1 mH | Nonstandard | 30 A | 3.13 in | 79.5 mm | 15 % | 97.79 mm | 3.85 " | 95.25 mm | 3.75 " | Unshielded | 9 mOhm | Chassis Mount | ||||||||
Hammond Manufacturing | 2.5 mH | Nonstandard | 20 A | 3.13 in | 79.5 mm | 15 % | 106.68 mm | 4.2 in | 95.25 mm | 3.75 " | Unshielded | 22 mOhm | Chassis Mount | ||||||||
 Hammond Manufacturing | Nonstandard | 15 % | 50.8 mm | 2 in | 50.8 mm | 2 in | Unshielded | Chassis Mount | 18 mH | 2 A | 72 mH | 2 | 58.7 mm | 2.311 in | 1 A | ||||||
 Hammond Manufacturing | 50 mH | Nonstandard | 10 A | 4.47 in | 15 % | 139.7 mm | 5.5 in | 133.35 mm | 5.25 in | Unshielded | 165 mOhm | Chassis Mount | 113.54 mm |
