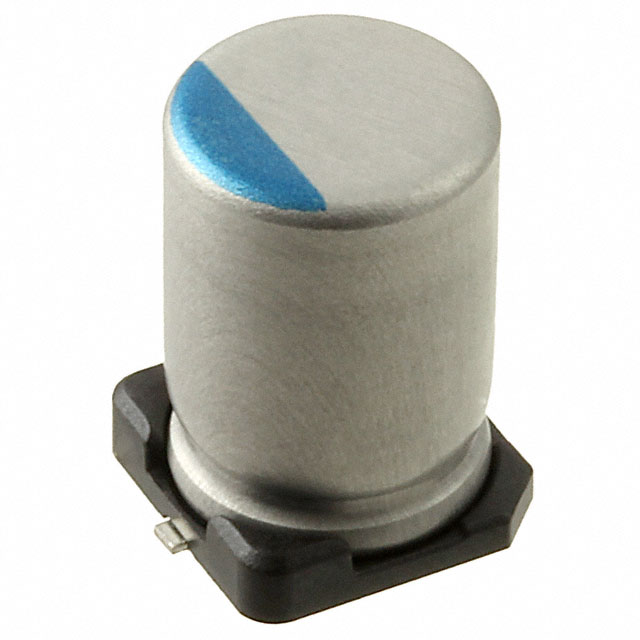

PCR Series

Manufacturer: Nichicon

Catalog

ALUMINUM ORGANIC POLYMER CAPACITORS 63V 68UF 20% AEC-Q200

Part	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Tolerance	Mounting Type	Ratings	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [diameter]	Size / Dimension [diameter]	Ripple Current @ High Frequency	Applications	ESR (Equivalent Series Resistance)	Capacitance	Voltage - Rated	Operating Temperature [Min]	Operating Temperature [Max]	Type	Package / Case	Lifetime @ Temp.	Height - Seated (Max)	Ripple Current @ Low Frequency
Nichicon PCR1J680MCL1GS	0.406 "	0.406 in	10.3 mm	10.3 mm	20 %	Surface Mount	AEC-Q200	10 mm	0.394 in	0.394 in	10 mm	2.8 A	Automotive	28 mOhm	68 µF	63 V	-55 C	125 °C	Polymer	Radial Can - SMD	4000 Hrs
Nichicon PCR1E271MCL1GS	0.327 in	0.327 in	8.3 mm	8.3 mm	20 %	Surface Mount	AEC-Q200		0.472 in	0.315 in	8 mm	3.3 A	Automotive	19 mOhm	270 µF	25 VDC	-55 C	125 °C	Polymer	Radial Can - SMD	4000 Hrs	12 mm
Nichicon PCR1H820MCS6GS
Nichicon PCR1D331MCL1GS	0.406 "	0.406 in	10.3 mm	10.3 mm	20 %	Surface Mount	AEC-Q200	8 mm	0.315 in	0.394 in	10 mm	2.1 A	Automotive	23 mOhm	330 µF	20 V	-55 C	125 °C	Polymer	Radial Can - SMD	4000 Hrs
Nichicon PCR1D151MCL1GS	0.327 in	0.327 in	8.3 mm	8.3 mm	20 %	Surface Mount	AEC-Q200	7 mm	0.276 in	0.315 in	8 mm	1.2 A	Automotive	39 mOhms	150 µF	20 V	-55 C	125 °C	Polymer	Radial Can - SMD	4000 Hrs
Nichicon PCR1V271MCL1GS	0.406 "	0.406 in	10.3 mm	10.3 mm	20 %	Surface Mount	AEC-Q200	10 mm	0.394 in	0.394 in	10 mm	3.1 A	Automotive	20 mOhms	270 µF	35 V	-55 C	125 °C	Polymer	Radial Can - SMD	4000 Hrs		155 mA
