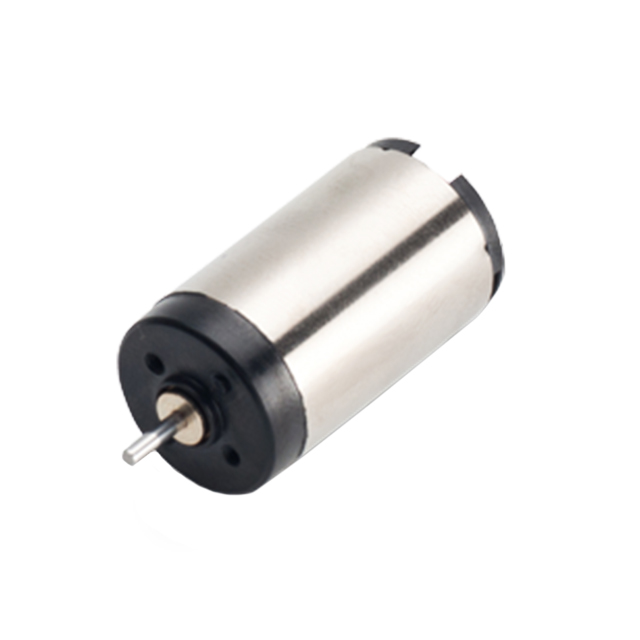

17S78 Series
Manufacturer: Portescap
Beta
⌘K
STANDARD MOTOR 10000 RPM 12V
| Part | Weight | Weight | Diameter - Shaft [diameter] | Diameter - Shaft [diameter] | Size / Dimension | Size / Dimension [diameter] | Size / Dimension [diameter] | Voltage - Rated | RPM | Termination Style | Length - Shaft and Bearing | Length - Shaft and Bearing [x] | Type | Power - Rated | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Hole Spacing [custom] | Mounting Hole Spacing [custom] | Torque - Rated (oz-in / mNm) | Torque - Rated (oz-in / mNm) | Function | Motor Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Portescap | 0.042 lb | 19.05 g | 1.5 mm | 0.059 in | Round | 0.669 in | 17 mm | 12 VDC | 10000 RPM | Solder Tab | 7.5 mm | 0.295 " | DC Motor | 2.4 W | 85 °C | -30 ░C | 10 mm | 0.394 in | 0.41 oz-in | 2.9 mNm | Standard | Brushed |
