AME3 Series

Manufacturer: aimtec

Catalog

AC/DC CONVERTER 12V 3W

Part	Line Regulation	Weight [custom]	Weight [custom]	Load Regulation	Approval Agency	Power (Watts)	Current - Output (Max) [Max]	Features	Efficiency	Number of Outputs	Package / Case	Applications	Voltage - Output 1	Mounting Type	Type	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Input [Max]	Voltage - Input [Min]	Load Regulation	Standard Number
aimtec AME3-12SHAVZ	0.3 %	25 g	0.055 lb	0.5 %	CE	3 W	250 mA	Universal Input	74 %	1	9-DIP Module 4 Leads	Household Appliances ITE (Commercial)	12 V	Through Hole	Enclosed	70 °C	-40 C	32.3 mm	21.8 mm	0.85 "	1.07 in	1.27 in	27.3 mm

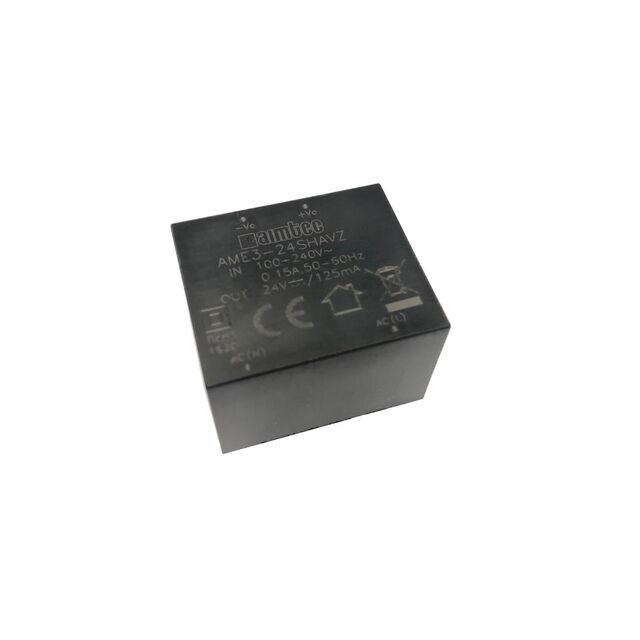

aimtec AME3-24SHAVZ	0.3 %	25 g	0.055 lb	0.5 %	CE	3 W	125 mA	Universal Input	75 %	1	9-DIP Module 4 Leads	Household Appliances ITE (Commercial)	24 V	Through Hole	Enclosed	70 °C	-25 °C	32.3 mm	21.8 mm	0.86 in	1.07 in	1.27 in	27.3 mm	264 VAC 373 VDC	85 VAC 120 VDC
aimtec AME3-24SAZ	3 %				CB CE cULus cURus FCC UL	3 W	125 mA		81 %	1	4-DIP Module	ITE (Commercial)	24 V	Through Hole	Enclosed	80 ¯C	-40 °C	35.6 mm	19.3 mm	0.76 "	0.92 "	1.4 in	23.3 mm	305 VAC 430 VDC	90 VAC 130 VDC	±5%	60950-1
aimtec AME3-05SHAVZ	0.3 %	25 g	0.055 lb	0.5 %	CE	3 W	600 mA	Universal Input	72 %	1	9-DIP Module 4 Leads	Household Appliances ITE (Commercial)	5 V	Through Hole	Enclosed	70 °C	-40 C	32.3 mm	21.8 mm	0.85 "	1.07 in	1.27 in	27.3 mm

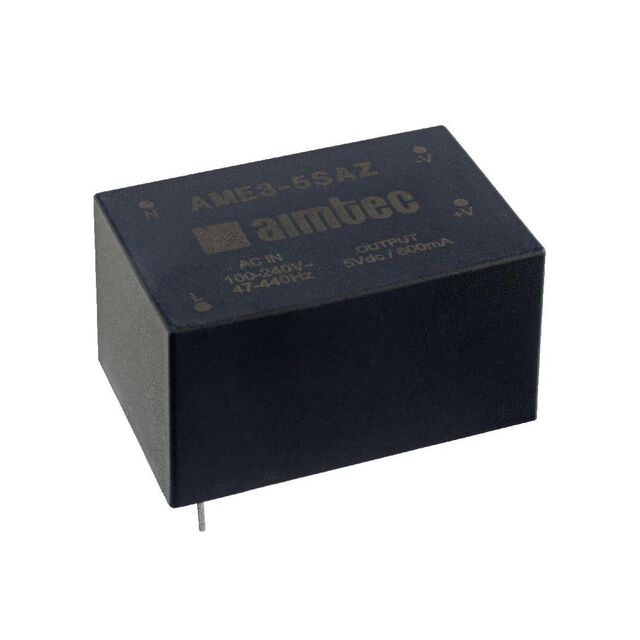

aimtec AME3-5SAZ	3 %				CB CE cULus cURus FCC UL	3 W	600 mA		67 %	1	4-DIP Module	ITE (Commercial)	5 V	Through Hole	Enclosed	80 ¯C	-40 °C	35.6 mm	19.3 mm	0.76 "	0.92 "	1.4 in	23.3 mm	305 VAC 430 VDC	90 VAC 130 VDC	±5%	60950-1
aimtec AME3-12SAZ	3 %	25 g	0.055 lb	3 %	CB CE cULus cURus FCC UL	3 W	250 mA		73 %	1	4-DIP Module	ITE (Commercial)	12 V	Through Hole	Enclosed	80 ¯C	-40 °C	35.6 mm	19.3 mm	0.76 "	0.92 "	1.4 in	23.3 mm	305 VAC	90 VAC		60950-1
aimtec AME3-24SBAZ	3 %				CE cURus FCC	3 W	125 mA		71 %	1	4-DIP Module	ITE (Commercial)	24 V	Through Hole	Enclosed	80 ¯C	-40 °C	35.6 mm	19.3 mm	0.76 "	0.92 "	1.4 in	23.3 mm	528 VAC 745 VDC	90 VAC 130 VDC	±5%
aimtec AME3-24SCJZ						3 W	125 mA	Universal Input	78 %	1	26-DIP Module 5 Leads	ITE (Commercial)	24 V	Through Hole	Enclosed	70 °C	-25 °C	37 mm	18 mm	0.71 in	0.96 in	1.46 in	24.5 mm	264 VAC 370 VDC	85 VAC 100 V
aimtec AME3-24SBJZ	1.5 %			2.5 %		3 W	125 mA		76 %	1	4-DIP Module	ITE (Commercial)	24 V	Through Hole	Enclosed			50.8 mm	15.2 mm	0.6 "	1 "	2 in	25.4 mm	528 VAC 745 VDC	90 VAC 100 V
