JRC16WPQ Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K

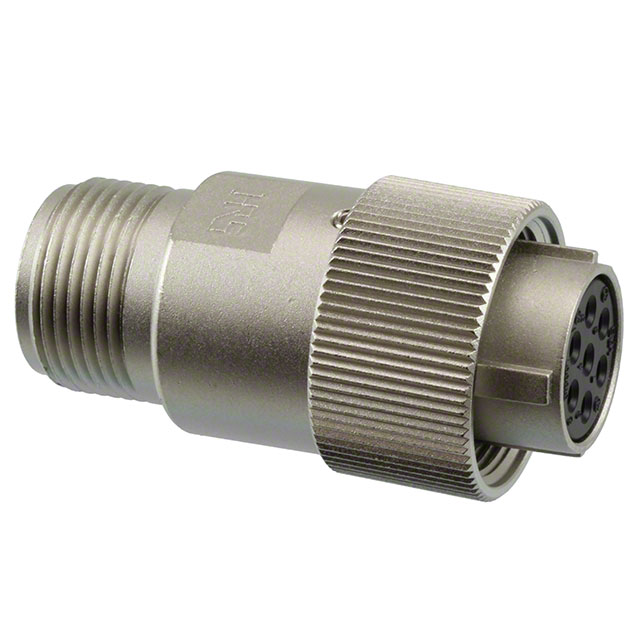

CONN PLUG FMALE 7POS SOLDER CUP
| Part | For Use With/Related Products | Type | Cable Exit | Shell Size - Insert | Orientation | Ingress Protection | Shell Finish | Contact Finish - Mating | Material Flammability Rating | Backshell Material, Plating | Color | Insert Material | Operating Temperature [Max] | Operating Temperature [Min] | Primary Material | Contact Material | Connector Type | Mounting Type | Applications | Current Rating (Amps) | Fastening Type | Shell Material | Shielding | Features | Voltage Rating | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | ||||||||||||||||||||||||||
 Hirose Electric Co Ltd | JR-W Series Connectors | Backshell | 180 ° | 16 | ||||||||||||||||||||||
Hirose Electric Co Ltd | 16 | Keyed | IP67/IP68 | Black Chromium | Silver | UL94 V-0 | Black Chrome Brass | Black | Phenol Formaldehyde (PF) | 85 °C | -25 °C | Metal | Copper Alloy | Plug Female Sockets | Free Hanging (In-Line) | Automotive Industrial Telecommunications | 10 A | Threaded | Aluminum Alloy | Unshielded | Backshell Coupling Nut | 100 VAC 140 VDC | 7 |
