LNR Series

Manufacturer: Nichicon

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - SCREW TERMINAL 47000 UF 200 VDC 20 %

Part	Polarization	Ripple Current @ High Frequency	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Ripple Current @ Low Frequency	Operating Temperature [Max]	Operating Temperature [Min]	Capacitance	Voltage - Rated	Package / Case	Applications	Lead Spacing	Lead Spacing	Size / Dimension [diameter]	Size / Dimension [diameter]	Mounting Type	Tolerance	Lifetime @ Temp.	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Nichicon LNR2D473MSEB	Polar	25.08 A	223 mm	8.78 in	20.9 A	85 °C	-25 °C	47 mF	200 VDC	Radial Can - Screw Terminals	General Purpose	1.252 in	31.8 mm	3.543 in	90 mm	Chassis Mount	20 %	5000 Hrs

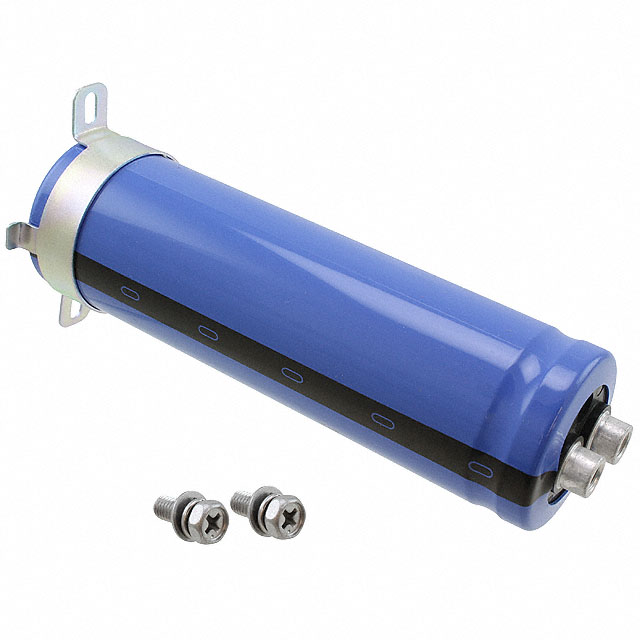

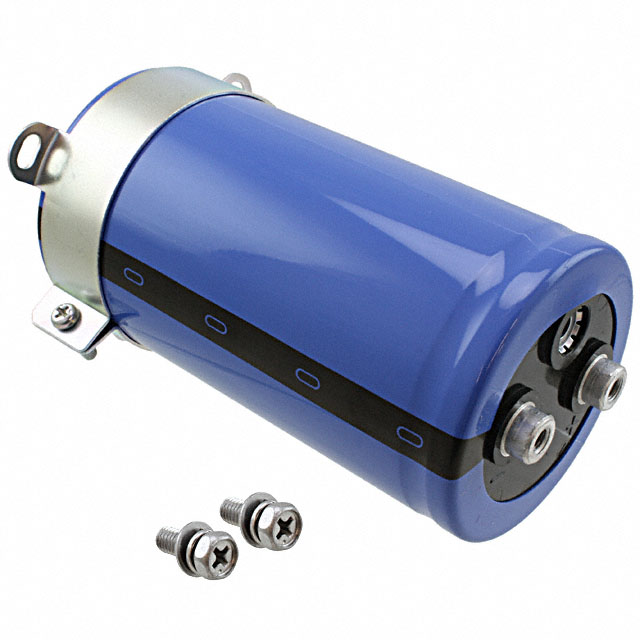

Nichicon LNR1C104MSE	Polar	12.19 A	123 mm	4.843 in	10.6 A	85 °C	-40 C	100000 µF	16 V	Radial Can - Screw Terminals	General Purpose	0.5 in	12.7 mm	1.378 "	35 mm	Chassis Mount	20 %	5000 Hrs
Nichicon LNR2D682MSEB	Polar	8.76 A	143 mm	5.63 in	7.3 A	85 °C	-25 °C	6800 µF	200 VDC	Radial Can - Screw Terminals	General Purpose	0.866 "	22 mm	2.008 in	51 mm	Chassis Mount	20 %	5000 Hrs
Nichicon LNR2A473MSEN	Polar	16.56 A	143 mm	5.63 in	14.4 A	85 °C	-40 C	47 mF	100 V	Radial Can - Screw Terminals	General Purpose	1.126 "	28.6 mm	2.5 in	63.5 mm	Chassis Mount	20 %	5000 Hrs

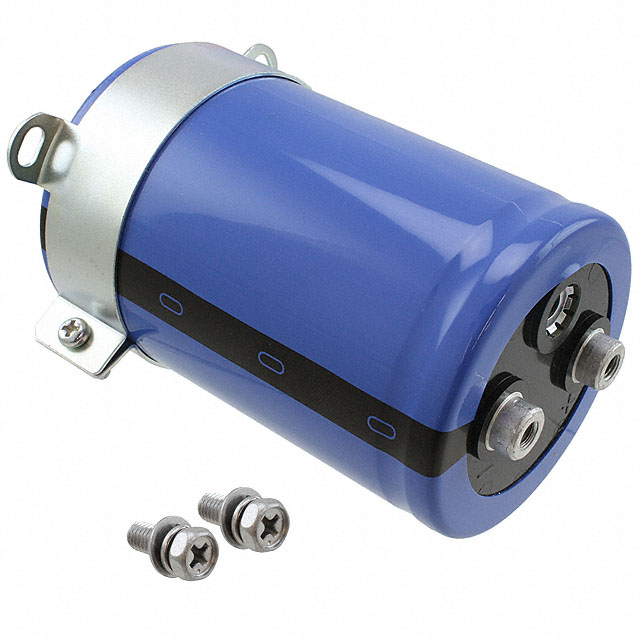

Nichicon LNR1A224MSEB	Polar	14.95 A			13 A	85 °C	-40 C	220 mF	10 V	Radial Can - Screw Terminals	General Purpose	0.866 "	22 mm	2.008 in	51 mm	Chassis Mount	20 %	5000 Hrs	103 mm	4.055 in
Nichicon LNR1K473MSEB	Polar	14.605 A			12.7 A	85 °C	-40 C	47 mF	80 V	Radial Can - Screw Terminals	General Purpose	1.126 "	28.6 mm	2.5 in	63.5 mm	Chassis Mount	20 %	5000 Hrs	103 mm	4.055 in
Nichicon LNR1E154MSE	Polar	17.595 A	123 mm	4.843 in	15.3 A	85 °C	-40 C	150000 µF	25 VDC	Radial Can - Screw Terminals	General Purpose	0.866 "	22 mm	2.008 in	51 mm	Chassis Mount	20 %	5000 Hrs
Nichicon LNR2C103MSE	Polar	10.92 A			9.1 A	85 °C	-25 °C	10000 µF	160 V	Radial Can - Screw Terminals	General Purpose	1.126 "	28.6 mm	2.5 in	63.5 mm	Chassis Mount	20 %	5000 Hrs	103 mm	4.055 in
Nichicon LNR2C153MSEN	Polar	14.4 A			12 A	85 °C	-25 °C		160 V	Radial Can - Screw Terminals	General Purpose	1.252 in	31.8 mm	3 in	76.2 mm	Chassis Mount	20 %	5000 Hrs	103 mm	4.055 in
Nichicon LNR2D153MSEB	Polar	15.6 A	123 mm	4.843 in	13 A	85 °C	-25 °C		200 VDC	Radial Can - Screw Terminals	General Purpose	1.252 in	31.8 mm	3 in	76.2 mm	Chassis Mount	20 %	5000 Hrs
