UCP Series
Manufacturer: Nichicon
Beta
⌘K
ALUMINUM ELECTROLYTIC CAPACITORS - RADIAL LEADED 400V 100UF 20%
| Part | Voltage - Rated | Lead Spacing | Lead Spacing | Applications | Capacitance | Tolerance | Ripple Current @ High Frequency | Size / Dimension [diameter] | Size / Dimension [diameter] | Height - Seated (Max) [Max] [z] | Height - Seated (Max) | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Lifetime @ Temp. | Polarization | Package / Case | Ripple Current @ Low Frequency | Height - Seated (Max) [Max] [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

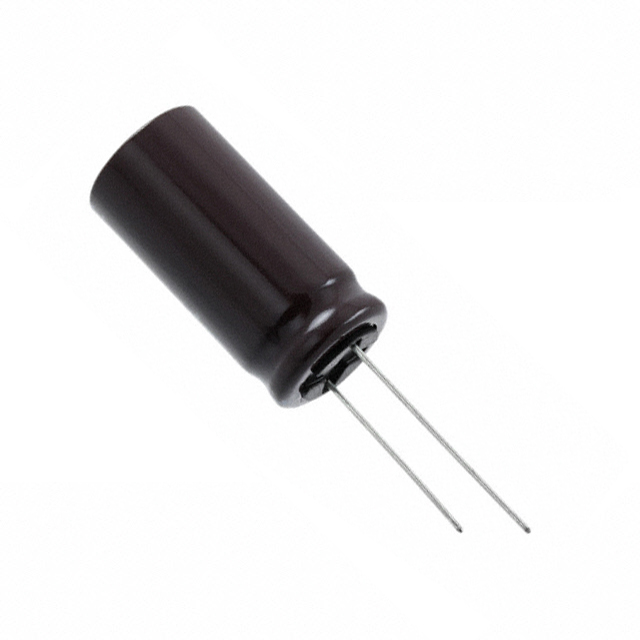

 Nichicon | 400 V | 0.295 in | 7.5 mm | General Purpose | 100 µF | 20 % | 1.065 A | 0.63 in | 16 mm | 1.319 in | 33.5 mm | Through Hole | 105 ░C | -25 °C | 10000 Hrs | Polar | Can Radial | 710 mA | |

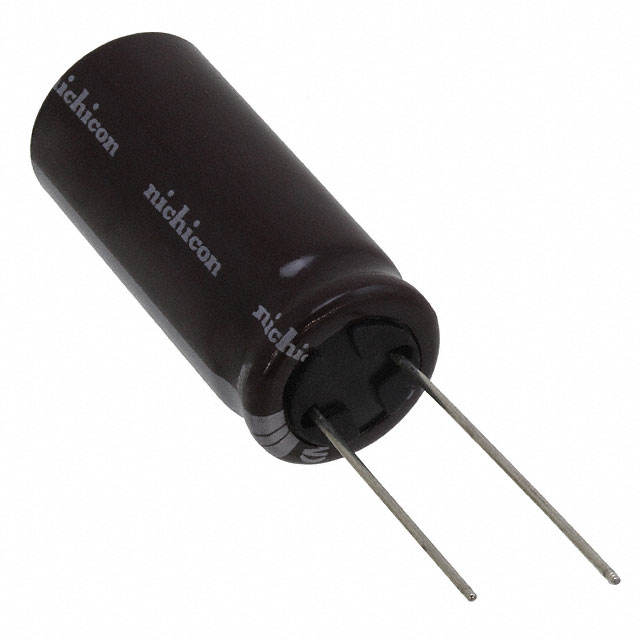

 Nichicon | 420 V | 0.295 in | 7.5 mm | General Purpose | 120 µF | 20 % | 1.17 A | 0.63 in | 16 mm | 1.654 in | Through Hole | 105 ░C | -25 °C | 10000 Hrs | Polar | Can Radial | 780 mA | 42 mm |
