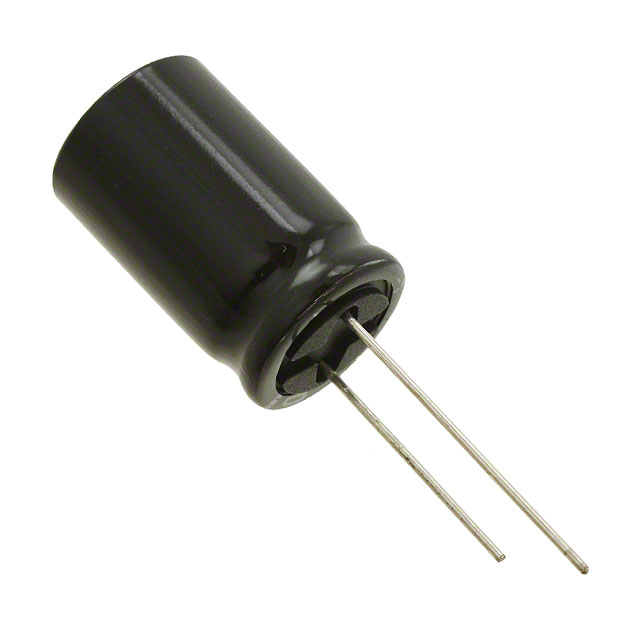

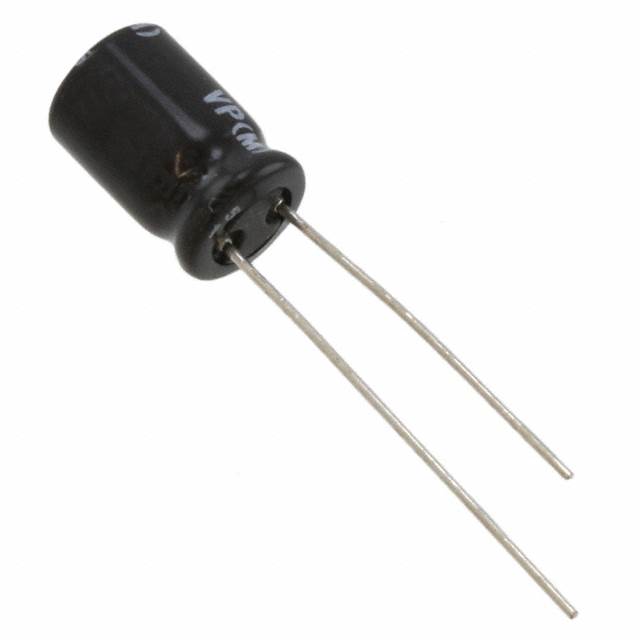

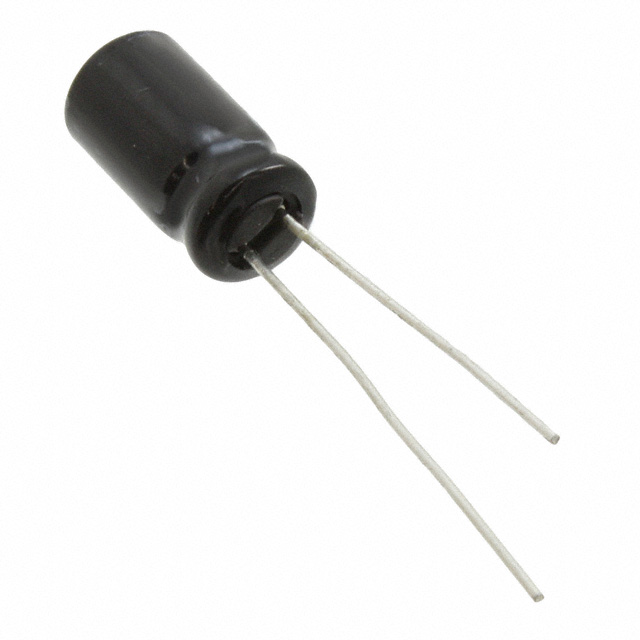

UVP Series

Manufacturer: Nichicon

Catalog

ELECTROLYTIC CAPACITOR, BI-POLAR, 10 ΜF, 16 V, ± 20%, PC PIN, 2000 HOURS @ 85°C

Part	Lifetime @ Temp.	Applications	Capacitance	Polarization	Size / Dimension [diameter]	Size / Dimension [diameter]	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Package / Case	Lead Spacing	Lead Spacing	Ripple Current @ Low Frequency	Operating Temperature [Max]	Operating Temperature [Min]	Tolerance	Voltage - Rated	Ripple Current @ High Frequency	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]
Nichicon UVP1C100MDD	2000 Hrs	General Purpose	10 µF	Bi-Polar	0.197 in	5 mm	Through Hole	11 mm	0.433 in	Can Radial	2 mm	0.079 in	42 mA	85 °C	-40 C	20 %	16 V
Nichicon UVP1J3R3MDD	2000 Hrs	General Purpose	3.3 µF	Bi-Polar	0.197 in	5 mm	Through Hole			Can Radial	2 mm	0.079 in	28 mA	85 °C	-40 C	20 %	63 V	56 mA	0.492 in	12.5 mm
Nichicon UVP1E102MHD1TN	2000 Hrs	General Purpose	1000 µF	Bi-Polar	0.63 in	16 mm	Through Hole			Can Radial	7.5 mm	0.295 in	120 Hz 950 mA	85 °C	-40 C	20 %	25 VDC	1.0925 A	27 mm		1.063 in
Nichicon UVP1C100MDD1TD	2000 Hrs	General Purpose	10 µF	Bi-Polar	0.197 in	5 mm	Through Hole			Can Radial	2.5 mm	0.098 in	42 mA	85 °C	-40 C	20 %	16 V		0.492 in	12.5 mm
Nichicon UVP0J471MPD	2000 Hrs	General Purpose	470 µF	Bi-Polar	0.394 in	10 mm	Through Hole			Can Radial	5 mm	0.197 "	370 mA	85 °C	-40 C	20 %	6.3 VDC	555 mA	14 mm		0.551 in
Nichicon UVP0J222MHD1TO	2000 Hrs	General Purpose	2200 µF	Bi-Polar	0.492 in	12.5 mm	Through Hole			Can Radial	5 mm	0.197 "	1.16 A	85 °C	-40 C	20 %	6.3 VDC	1.334 A	27 mm		1.063 in
Nichicon UVP1J100MED1TA	2000 Hrs	General Purpose	10 µF	Bi-Polar	0.248 "	6.3 mm	Through Hole			Can Radial	2.5 mm	0.098 in	57 mA	85 °C	-40 C	20 %	63 V	114 mA	0.492 in	12.5 mm
Nichicon UVP1A221MPD1TD	2000 Hrs	General Purpose	220 µF	Bi-Polar	0.315 in	8 mm	Through Hole	13 mm	0.512 "	Can Radial	3.5 mm	0.138 in	215 mA	85 °C	-40 C	20 %	10 V	322.5 mA
Nichicon UVP1E221MPD1CV	2000 Hrs	General Purpose	220 µF	Bi-Polar	0.394 in	10 mm	Through Hole	0.689 in		Can Radial	5 mm	0.197 "	305 mA	85 °C	-40 C	20 %	25 VDC	457.5 mA				17.5 mm
Nichicon UVP1C101MPD1TA	2000 Hrs	General Purpose	100 µF	Bi-Polar	0.315 in	8 mm	Through Hole	13 mm	0.512 "	Can Radial	3.5 mm	0.138 in	160 mA	85 °C	-40 C	20 %	16 V	240 mA
