51H Series

Catalog

EMI GASKETS, SHEETS, ABSORBERS & SHIELDING GK,NICU,PTAFG,PU,V0,REC

Part	Shelf Life	Length [x]	Length [x]	Width [x]	Width [x]	Height	Height	Attachment Method	Shape	Type	Material	Height [z]	Height [z]	Shelf Life Start	Operating Temperature [Max]	Operating Temperature [Min]	Width	Width	Length	Length	Width [y]	Width [y]

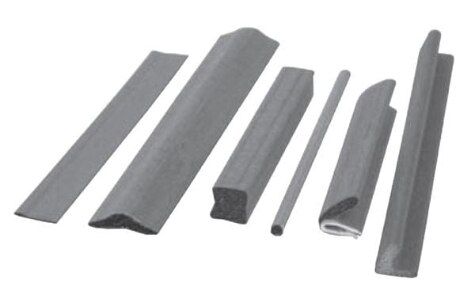

Laird Technologies EMI 4223PA51H01800	12 Months	457.2 mm	18 in	4 mm	0.157 in	1 mm	0.039 in	Adhesive	Rectangle	Fabric Over Foam	Polyurethane Foam Nickel-Copper Taffeta (NI/CU)
Laird Technologies EMI 4112PA51H01800	12 Months	457.2 mm	18 in	11 mm	0.433 "			Adhesive	D-Shape	Fabric Over Foam	Polyurethane Foam Nickel-Copper Taffeta (NI/CU)	0.157 in	4 mm

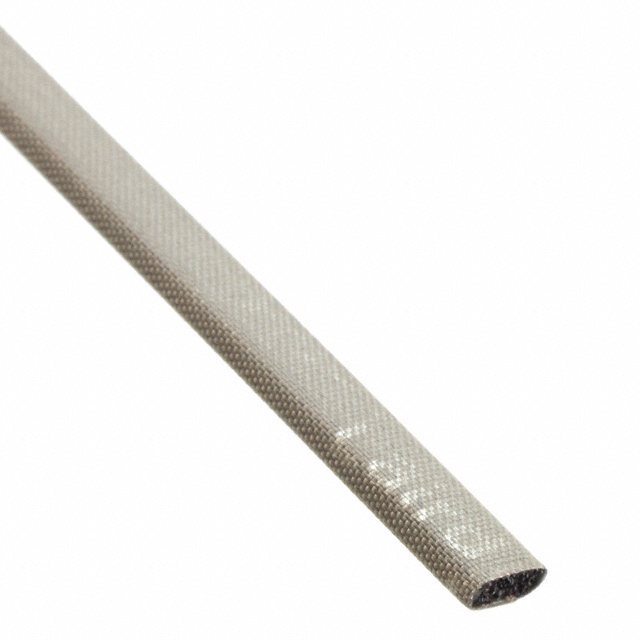

Laird Technologies EMI 4186PA51H01800	12 Months	457.2 mm	18 in	5.1 mm	0.201 in	2 mm	0.079 in	Adhesive	Rectangle	Fabric Over Foam	Polyurethane Foam Nickel-Copper Taffeta (NI/CU)

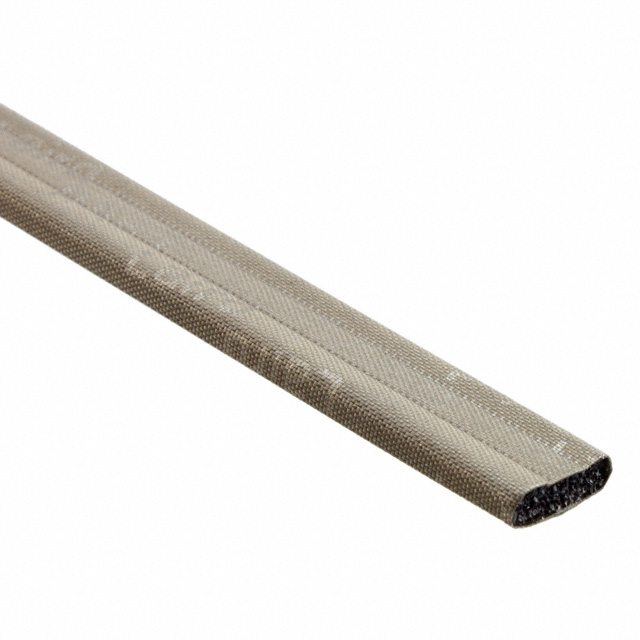

Laird Technologies EMI 4229PA51H01800		457.2 mm	18 in	9.7 mm	0.382 in				Double D
Laird Technologies EMI 4C13PA51H00400	12 Months	101.6 mm	4 "					Adhesive		Fabric Over Foam	Polyurethane Foam Nickel-Copper Taffeta (NI/CU)			Date of Manufacture	70 °C	-40 C
Laird Technologies EMI 4320PA51H01800	12 Months	457.2 mm	18 in	3.6 mm	0.142 in			Adhesive	D-Shape	Fabric Over Foam	Polyurethane Foam Nickel-Copper Taffeta (NI/CU)	0.051 in	1.3 mm

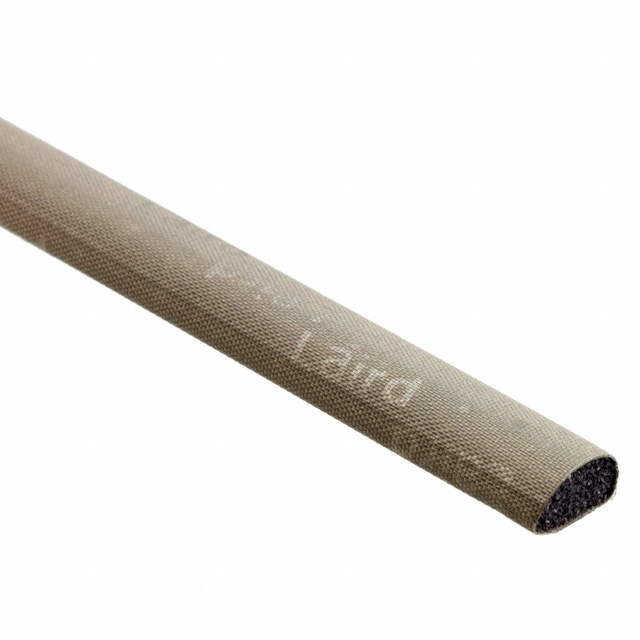

Laird Technologies EMI 4134PA51H01800	12 Months	457.2 mm	18 in	10 mm	0.394 "			Adhesive	D-Shape	Fabric Over Foam	Polyurethane Foam Nickel-Copper Taffeta (NI/CU)	0.197 in	5 mm
Laird Technologies EMI 4295PA51H04800	12 Months
Laird Technologies EMI 4215EV51H00315		80.01 mm	3.15 in			1 mm	0.039 in		Rectangle	Fabric Over Foam	Polyurethane Foam Nickel-Copper Taffeta (NI/CU)						7 mm	0.276 in
Laird Technologies EMI 4094PA51H01614						2 mm	0.079 in	Adhesive	Rectangle	Fabric Over Foam	Polyurethane Foam Nickel-Copper Taffeta (NI/CU)								16.14 in	409.96 mm	4.1 mm	0.161 in
