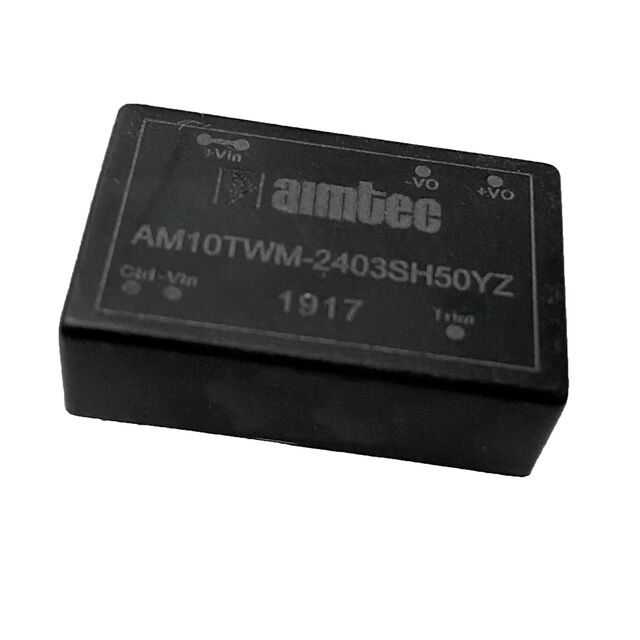

AM10T Series
Manufacturer: aimtec
Beta
⌘K
DC DC CONVERTER 15V 10W
| Part | Efficiency | Features | Voltage - Input (Min) | Current - Output (Max) | Mounting Type | Size / Dimension Height | Size / Dimension Width | Size / Dimension Length | Voltage - Input (Max) | Power (Watts) | Operating Temperature (Max) | Operating Temperature (Min) | Applications | Type | Package Leads | Package Name | Voltage - Isolation | Voltage - Output 1 | Number of Outputs | Voltage - Output 2 | Package / Case | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 aimtec | 84 % | Remote On/Off | 18 V | 670 mA | Through Hole | 0.39 in | 0.79 in | 1.24 in | 75 V | 10 W | 70 °C | -40 °C | Medical | Isolated Module | 8 Leads | 24-DIP Module | 5000 Vrms | 15 V | 1 | |||
aimtec | 84 % | Remote On/Off | 18 V | 2 A | Through Hole | 0.39 in | 0.79 in | 1.24 in | 75 V | 10 W | 70 °C | -40 °C | Medical | Isolated Module | 8 Leads | 24-DIP Module | 5000 Vrms | 5 V | 1 | |||
aimtec | 85 % | Remote On/Off | 18 V | 420 mA | Through Hole | 0.39 in | 0.79 in | 1.24 in | 75 V | 10 W | 70 °C | -40 °C | Medical | Isolated Module | 8 Leads | 24-DIP Module | 5000 Vrms | 12 V | 2 | -12 V | ||
aimtec | 84 % | Remote On/Off | 9 V | 1 A | Through Hole | 0.39 in | 0.79 in | 1.24 in | 36 V | 10 W | 70 °C | -40 °C | Medical | Isolated Module | 8 Leads | 24-DIP Module | 5000 Vrms | 5 V | 2 | -5 V | ||
aimtec | 85 % | Remote On/Off | 18 V | 340 mA | Through Hole | 0.39 in | 0.79 in | 1.24 in | 75 V | 10 W | 70 °C | -40 °C | Medical | Isolated Module | 8 Leads | 24-DIP Module | 5000 Vrms | 15 V | 2 | -15 V | ||
aimtec | 84 % | Remote On/Off | 9 V | 670 mA | Through Hole | 0.39 in | 0.79 in | 1.24 in | 36 V | 10 W | 70 °C | -40 °C | Medical | Isolated Module | 8 Leads | 24-DIP Module | 5000 Vrms | 15 V | 1 | |||
 aimtec | 87 % | Remote On/Off | 18 V | 667 mA | Through Hole | 0.43 in | 0.79 in | 1.26 in | 75 V | 10 W | 85 °C | -40 °C | ITE (Commercial) | Isolated Module | 1500 Vrns | 15 V | 1 | 24-DIP Module | CE UL | |||
 aimtec | 87 % | 18 V | 333 mA | Through Hole | 0.43 in | 0.79 in | 1.26 in | 36 V | 10 W | 85 °C | -40 °C | ITE (Commercial) | Isolated Module | 9 Leads | 24-DIP Module | 1500 Vrns | 15 V | 2 | -15 V | |||
aimtec | 87 % | 18 V | 667 mA | Through Hole | 0.43 in | 0.79 in | 1.26 in | 36 V | 10 W | 85 °C | -40 °C | ITE (Commercial) | Isolated Module | 9 Leads | 24-DIP Module | 1500 Vrns | 15 V | 1 | ||||
aimtec | 88 % | Remote On/Off | 18 V | 416 mA | Through Hole | 0.43 in | 0.79 in | 1.26 in | 75 V | 10 W | 85 °C | -40 °C | ITE (Commercial) | Isolated Module | 1500 Vrns | 24 V | 1 | 24-DIP Module | CE UL |
