DF1EA Series

Catalog

CONN PLUG HSG 2POS 2.50MM

Part	Note	Contact Type	Color	Number of Rows	Fastening Type	Mounting Type	Pitch	Pitch	Contact Termination	Connector Type	Insulation Material	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]
Hirose Electric Co Ltd DF1EA-2EP-2.5C	Contacts Not Included	Male Pin	White	1	Latch Holder	Free Hanging (In-Line)	2.5 mm	0.098 in	Crimp	Plug	Nylon Polyamide (PA)	2	85 °C	-35 °C

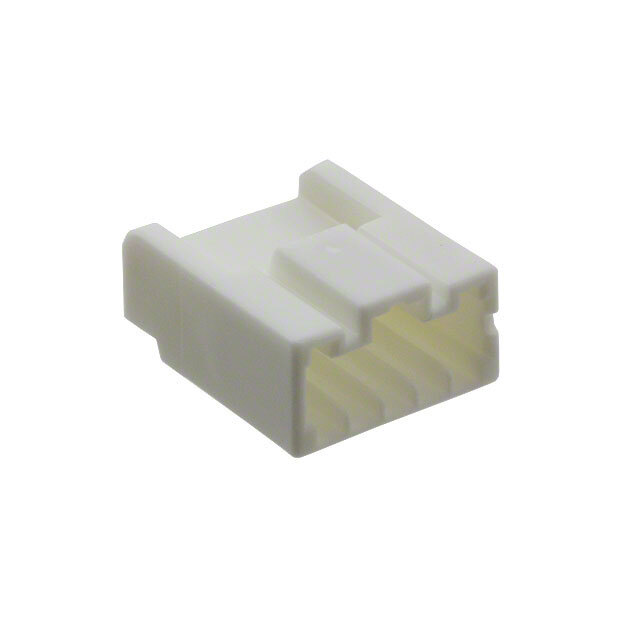

Hirose Electric Co Ltd DF1EA-5EP-2.5C	Contacts Not Included	Male Pin	White	1	Latch Holder	Free Hanging (In-Line)	2.5 mm	0.098 in	Crimp	Plug	Nylon Polyamide (PA)	5	85 °C	-35 °C

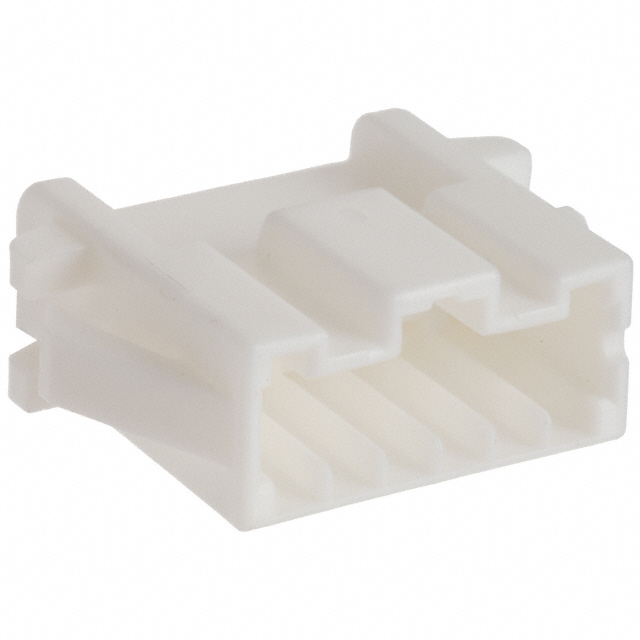

Hirose Electric Co Ltd DF1EA-6EP-2.5C	Contacts Not Included	Male Pin	White	1	Latch Holder	Free Hanging (In-Line)	2.5 mm	0.098 in	Crimp	Plug	Nylon Polyamide (PA)	6	85 °C	-35 °C

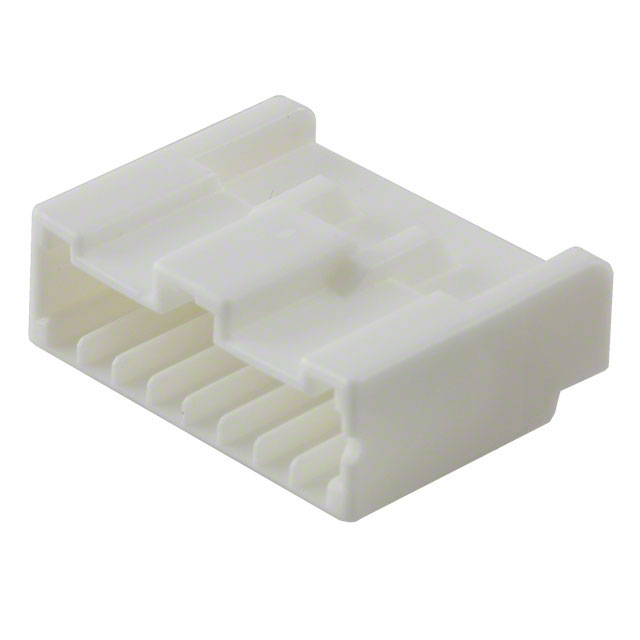

Hirose Electric Co Ltd DF1EA-8EP-2.5C	Contacts Not Included	Male Pin	White	1	Latch Holder	Free Hanging (In-Line)	2.5 mm	0.098 in	Crimp	Plug	Nylon Polyamide (PA)	8	85 °C	-35 °C
Hirose Electric Co Ltd DF1EA-7EP-2.5C	Contacts Not Included	Male Pin	White	1	Latch Holder	Free Hanging (In-Line)	2.5 mm	0.098 in	Crimp	Plug	Nylon Polyamide (PA)	7	85 °C	-35 °C

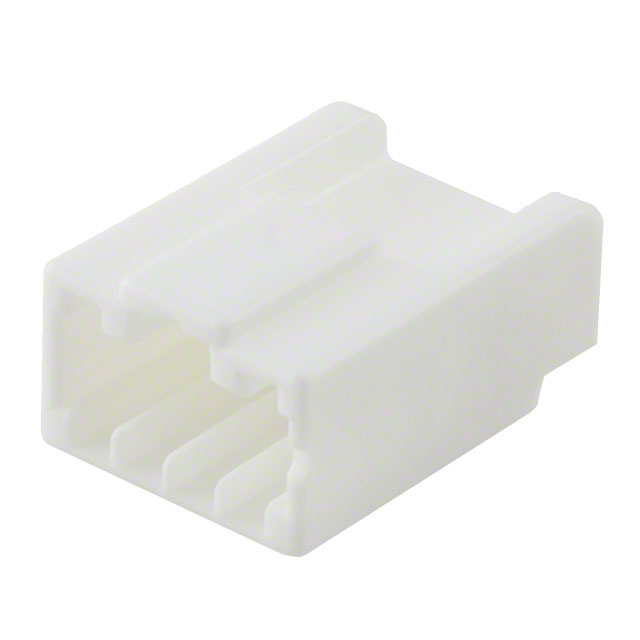

Hirose Electric Co Ltd DF1EA-4EP-2.5C	Contacts Not Included	Male Pin	White	1	Latch Holder	Free Hanging (In-Line)	2.5 mm	0.098 in	Crimp	Plug	Nylon Polyamide (PA)	4	85 °C	-35 °C

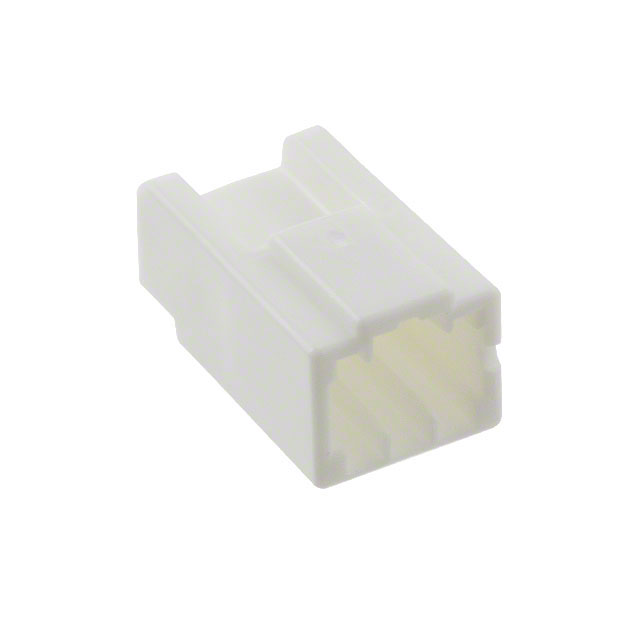

Hirose Electric Co Ltd DF1EA-3EP-2.5C	Contacts Not Included	Male Pin	White	1	Latch Holder	Free Hanging (In-Line)	2.5 mm	0.098 in	Crimp	Plug	Nylon Polyamide (PA)		85 °C	-35 °C
