LGR Series

Manufacturer: Nichicon

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - SNAP IN 400VOLTS 180UF LONG LIFE

Part	Lead Spacing	Lead Spacing	Applications	Package / Case	Voltage - Rated	Lifetime @ Temp.	Operating Temperature [Max]	Operating Temperature [Min]	Ripple Current @ High Frequency	Ripple Current @ Low Frequency	Capacitance	Size / Dimension [diameter]	Size / Dimension [diameter]	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Tolerance	Polarization	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension	Height - Seated (Max)

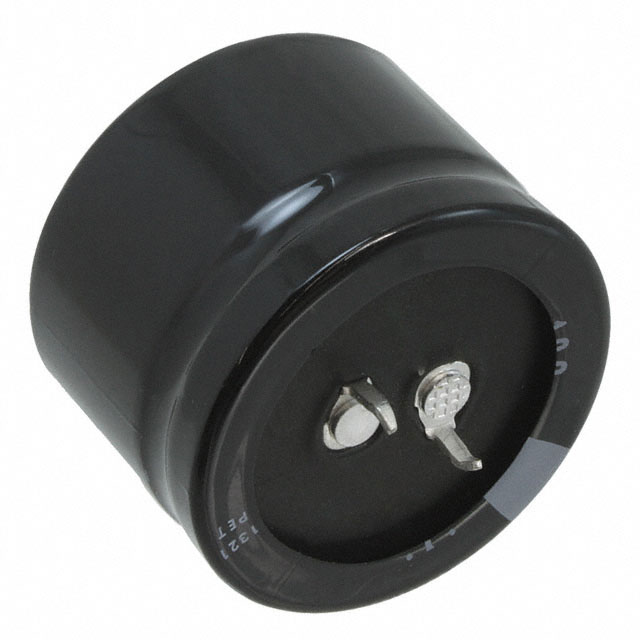

Nichicon LGR2G181MELC25	0.394 in	10 mm	General Purpose	Radial Can - Snap-In	400 V	10000 Hrs	105 ░C	-25 °C	1.287 A	900 mA	180 µF	1.378 "	35 mm	Through Hole	1.063 in	27 mm	20 %	Polar
Nichicon LGR2W470MELZ30	0.394 in	10 mm	General Purpose	Radial Can - Snap-In	450 V	10000 Hrs	105 ░C	-25 °C		400 mA	47 µF	0.866 "	22 mm	Through Hole			20 %	Polar	1.26 in	32 mm
Nichicon LGR2G271MELB45	0.394 in	10 mm	General Purpose	Radial Can - Snap-In	400 V	10000 Hrs	105 ░C	-25 °C	1.573 A	1.1 A	270 µF	1.181 "		Through Hole	1.85 in	47 mm	20 %	Polar			30 mm

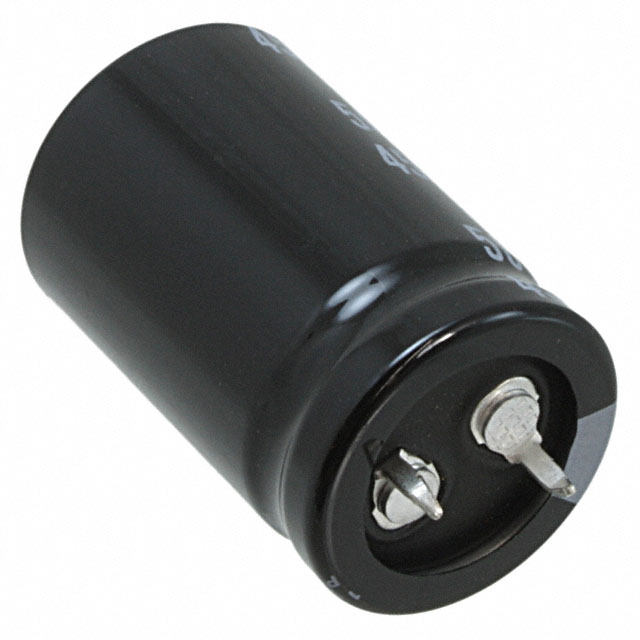

Nichicon LGR2D391MELZ35	0.394 in	10 mm	General Purpose	Radial Can - Snap-In	200 VDC	10000 Hrs	105 ░C	-40 C	1.95 A	1.3 A	390 µF	0.866 "	22 mm	Through Hole			20 %	Polar	1.457 in			37 mm
Nichicon LGR2G121MELB25	0.394 in	10 mm	General Purpose	Radial Can - Snap-In	400 V	10000 Hrs	105 ░C	-25 °C	1.0725 A	750 mA	120 µF	1.181 "		Through Hole	1.063 in	27 mm	20 %	Polar			30 mm
Nichicon LGR2W820MELB25	0.394 in	10 mm	General Purpose	Radial Can - Snap-In	450 V	10000 Hrs	105 ░C	-25 °C	800.8 mA	560 mA	0.082 mF	1.181 "		Through Hole	1.063 in	27 mm	20 %	Polar			30 mm

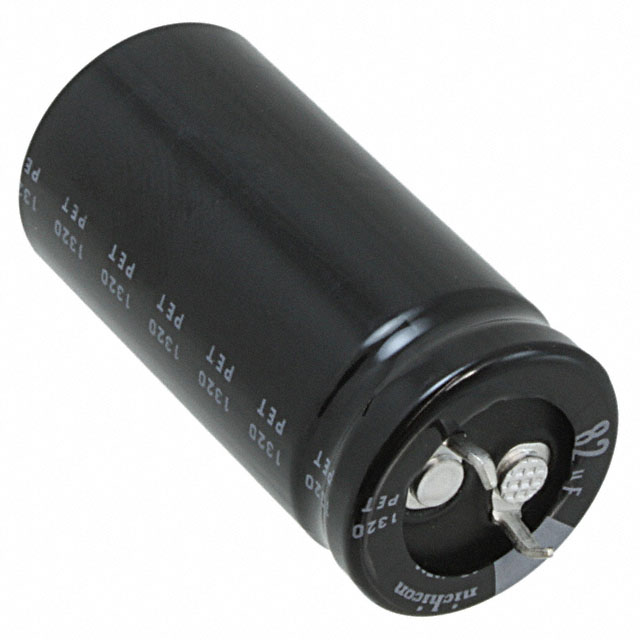

Nichicon LGR2W820MELZ45	0.394 in	10 mm	General Purpose	Radial Can - Snap-In	450 V	10000 Hrs	105 ░C	-25 °C	800.8 mA	560 mA	0.082 mF	0.866 "	22 mm	Through Hole	1.85 in	47 mm	20 %	Polar
Nichicon LGR2D331MELZ30	0.394 in	10 mm	General Purpose	Radial Can - Snap-In	200 VDC	10000 Hrs	105 ░C	-40 C		1.2 A	330 µF	0.866 "	22 mm	Through Hole			20 %	Polar	1.26 in	32 mm
