STL7LN80K5 Series
Manufacturer: STMicroelectronics
Beta
⌘K

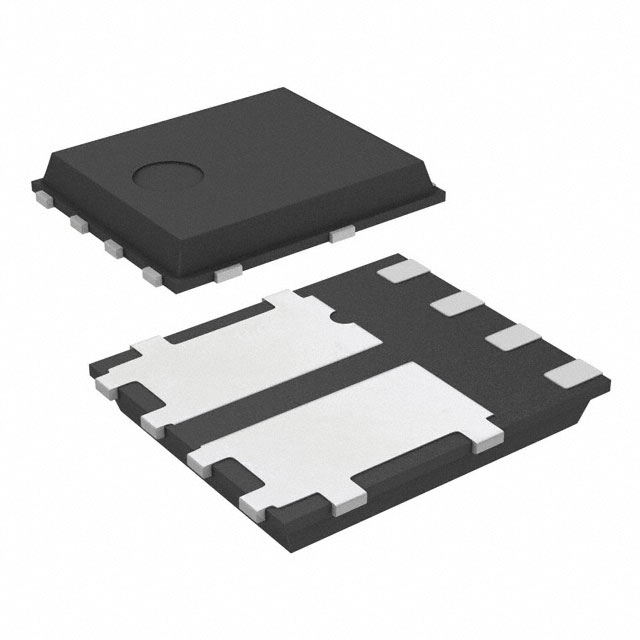

N-CHANNEL 800 V, 0.95 OHM TYP., 5 A MDMESH K5 POWER MOSFET IN A POWERFLAT 5X6 VHV PACKAGE
| Part | Power Dissipation (Max) | Technology | Rds On (Max) @ Id, Vgs | Current - Continuous Drain (Id) @ 25°C | FET Type | Operating Temperature [Max] | Operating Temperature [Min] | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs [Max] | Drive Voltage (Max Rds On, Min Rds On) | Drain to Source Voltage (Vdss) | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds [Max] | Package / Case | Supplier Device Package | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 STMicroelectronics | 42 W | MOSFET (Metal Oxide) | 1.15 Ohm | 5 A | N-Channel | 150 °C | -55 °C | 5 V | 12 nC | 10 V | 800 V | 30 V | 270 pF | 8-PowerVDFN | PowerFlat™ (5x6) | Surface Mount |
