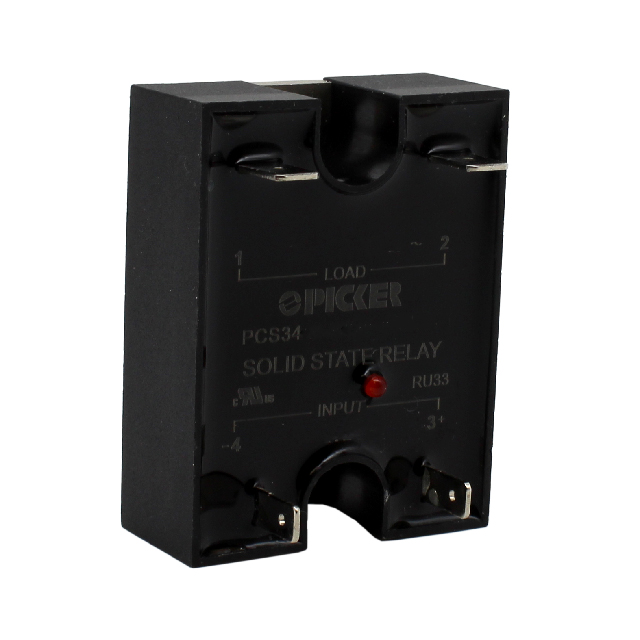

PCS34-D Series

Catalog

SSR RELAY 100A 48~530VAC SCREW T

Part	Termination Style	Voltage - Load (Max)	Voltage - Load (Min)	Voltage - Input (DC) Maximum	Voltage - Input (DC) Minimum	Output Type	Mounting Type	Approval Agency	Load Current	Package / Case	Package Name	Circuit	Operating Temperature (Min)	Operating Temperature (Max)	Quick Connect Size (0.250")	Quick Connect Size (Primary)	Quick Connect Size (Secondary)	Quick Connect Size (0.187")
Picker Components PCS34-D-480A-100RYL	Screw Terminal	530 V	48 V	32 VDC	4 VDC	AC	Chassis Mount	cURus	100 A	Hockey Puck	Hockey Puck	SPST-NO (1 Form A)	-30 °C	80 °C
Picker Components PCS34-D-240A-50ZLQ	Quick Connect	530 V	48 V	32 VDC	4 VDC	AC Zero Cross	Chassis Mount	cURus	50 A	Hockey Puck	Hockey Puck	SPST-NO (1 Form A)	-30 °C	80 °C	0.25 in	0.187 in	0.25 in	0.187 in
Picker Components PCS34-D-240A-25RLQ	Quick Connect	530 V	48 V	32 VDC	4 VDC	AC	Chassis Mount	cURus	25 A	Hockey Puck	Hockey Puck	SPST-NO (1 Form A)	-30 °C	80 °C	0.25 in	0.187 in	0.25 in	0.187 in
Picker Components PCS34-D-380A-100RL	Screw Terminal	280 V	48 V	32 VDC	4 VDC	AC	Chassis Mount	cURus	100 A	Hockey Puck	Hockey Puck	SPST-NO (1 Form A)	-30 °C	80 °C
Picker Components PCS34-D-600A-50ZLQ	Quick Connect	530 V	48 V	32 VDC	4 VDC	AC Zero Cross	Chassis Mount	cURus	50 A	Hockey Puck	Hockey Puck	SPST-NO (1 Form A)	-30 °C	80 °C	0.25 in	0.187 in	0.25 in	0.187 in
Picker Components PCS34-D-240A-50RL	Screw Terminal	530 V	48 V	32 VDC	4 VDC	AC	Chassis Mount	cURus	50 A	Hockey Puck	Hockey Puck	SPST-NO (1 Form A)	-30 °C	80 °C
Picker Components PCS34-D-240A-80ZYL	Screw Terminal	530 V	48 V	32 VDC	4 VDC	AC Zero Cross	Chassis Mount	cURus	80 A	Hockey Puck	Hockey Puck	SPST-NO (1 Form A)	-30 °C	80 °C
Picker Components PCS34-D-240A-25RL	Screw Terminal	530 V	48 V	32 VDC	4 VDC	AC	Chassis Mount	cURus	25 A	Hockey Puck	Hockey Puck	SPST-NO (1 Form A)	-30 °C	80 °C
Picker Components PCS34-D-240A-50ZYL	Screw Terminal	530 V	48 V	32 VDC	4 VDC	AC Zero Cross	Chassis Mount	cURus	50 A	Hockey Puck	Hockey Puck	SPST-NO (1 Form A)	-30 °C	80 °C
Picker Components PCS34-D-240A-50ZYLQ	Quick Connect	530 V	48 V	32 VDC	4 VDC	AC Zero Cross	Chassis Mount	cURus	50 A	Hockey Puck	Hockey Puck	SPST-NO (1 Form A)	-30 °C	80 °C	0.25 in	0.187 in	0.25 in	0.187 in
