JRC21BP Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K

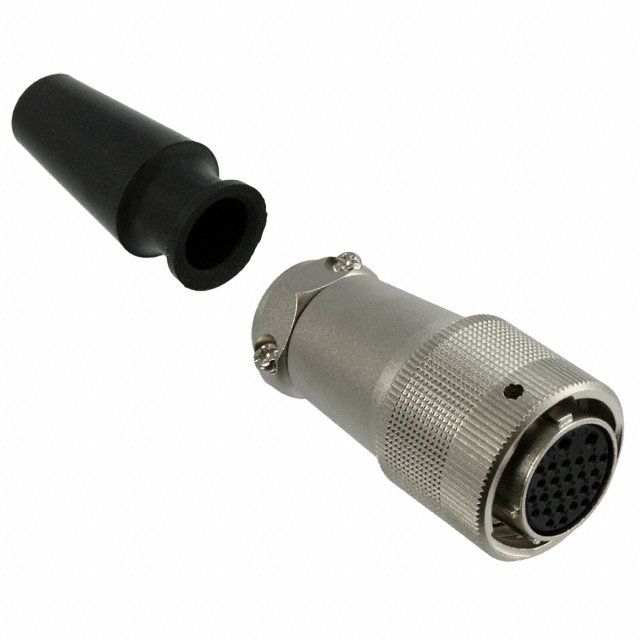

CONN PLUG FMALE 26P SOLDER CUP
| Part | Color | Contact Material | Primary Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Fastening Type | Current Rating (Amps) | Insert Material | Connector Type | Number of Positions | Shell Size - Insert [custom] | Contact Finish - Mating | Shell Finish | Backshell Material, Plating | Shielding | Orientation | Features | Voltage Rating | Operating Temperature [Max] | Operating Temperature [Min] | Material Flammability Rating | Shell Material | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | Silver | Copper Alloy | Metal | 78.7 µin | 2 µm | Bayonet Lock | 5 A | Phenol Formaldehyde (PF) | Plug Female Sockets | 26 | 21 | Silver | Nickel | Aluminum Alloy Nickel | Unshielded | Keyed | Backshell Clamp Coupling Nut Strain Relief | 250 VAC 350 VDC | 85 °C | -25 °C | UL94 V-0 | Aluminum Alloy | Free Hanging (In-Line) |
