JJD Series
Manufacturer: Nichicon
Beta
⌘K

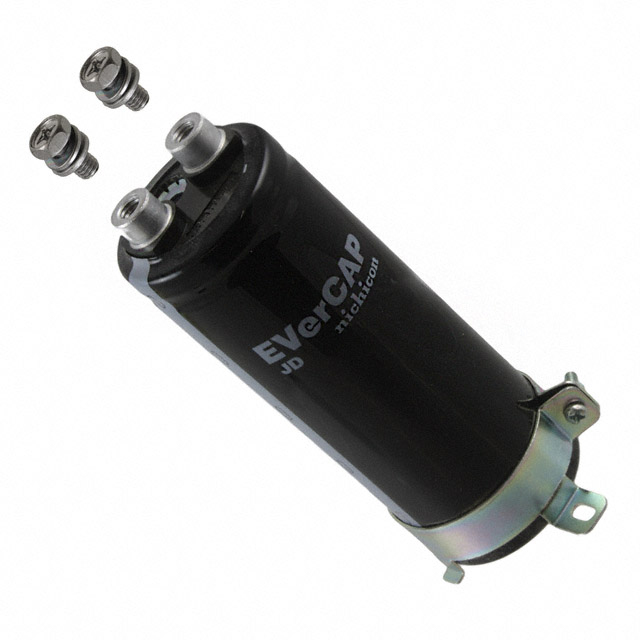

SUPERCAPACITORS / ULTRACAPACITORS 2300F 2.5 VOLTS 20% 2 LEG BRACKET
| Part | Lifetime @ Temp. | Lead Spacing | Lead Spacing | Mounting Type | Tolerance | Termination | ESR (Equivalent Series Resistance) | Voltage - Rated | Capacitance | Size / Dimension [diameter] | Size / Dimension [diameter] | Operating Temperature [Min] | Operating Temperature [Max] | Height - Seated (Max) [Max] | Height - Seated (Max) | Package / Case | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nichicon | 2000 Hrs | 1.024 in | 26 mm | Chassis Mount | 20 % | Screw Terminals | 4 mOhms | 2.5 V | 2300 F | 2.008 in | 51 mm | -25 °C | 60 °C | 5.433 in | 138 mm | Radial Can - Screw Terminals | ||
 Nichicon | 2000 Hrs | 0.74 in | 18.8 mm | Chassis Mount | 20 % | Screw Terminals | 8 mOhms | 2.5 V | 1000 F | 1.575 in | 40 mm | -25 °C | 60 °C | 4.252 in | Radial Can - Screw Terminals | 108 mm | ||
 Nichicon | 2000 Hrs | 1.126 " | 28.6 mm | Chassis Mount | 20 % | Screw Terminals | 2.2 mOhms | 2.5 V | 4000 F | 2.5 in | 63.5 mm | -25 °C | 60 °C | 153 mm | Radial Can - Screw Terminals | 6.024 in |
