14-650 Series

Catalog

CONN IC DIP SOCKET 14POS GOLD

Part	Current Rating (Amps)	Material Flammability Rating	Termination Post Length	Termination Post Length	Termination	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Number of Positions or Pins (Grid)	Housing Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Pitch - Mating	Pitch - Mating	Features	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material - Post	Type [custom]	Type [custom]	Type	Pitch - Post	Pitch - Post	Contact Material - Mating	Contact Finish - Post	Accessory Type	For Use With/Related Products	Number of Positions
Aries Electronics 14-6503-31	3 A	UL94 V-0	0.5 in	12.7 mm	Wire Wrap	Gold	0.25 µm	10 µin	Through Hole	14	Polyamide (PA46) Nylon 4/6 Glass Filled	10 Áin	0.25 çm	0.1 "	2.54 mm	Closed Frame	-55 C	125 °C	Phosphor Bronze	15.24 mm	0.6 in	DIP	0.1 in	2.54 mm	Beryllium Copper	Gold
Aries Electronics 14-650-20																											Cap (Cover)	0600 Series Header	14
Aries Electronics 14-6503-21	3 A	UL94 V-0	0.36 in	9.14 mm	Wire Wrap	Gold	0.25 µm	10 µin	Through Hole	14	Polyamide (PA46) Nylon 4/6 Glass Filled	10 Áin	0.25 çm	0.1 "	2.54 mm	Closed Frame	-55 C	125 °C	Phosphor Bronze	15.24 mm	0.6 in	DIP	0.1 in	2.54 mm	Beryllium Copper	Gold

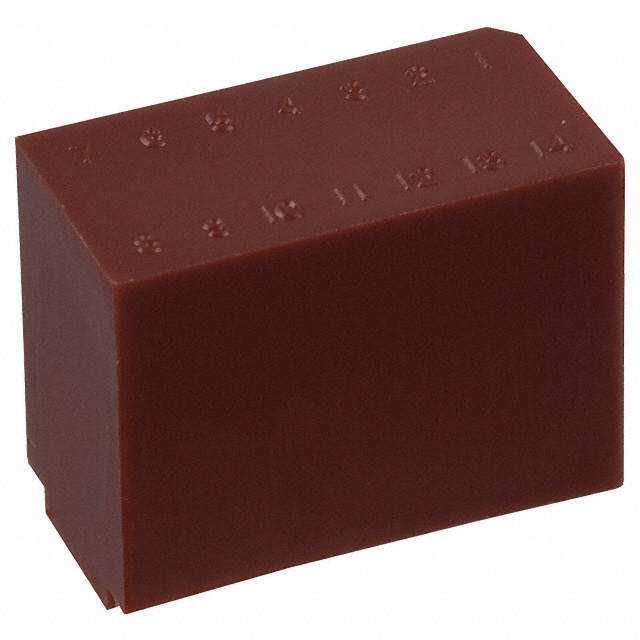

Aries Electronics 14-650-30																											Cap (Cover)	0600 Series Header	14

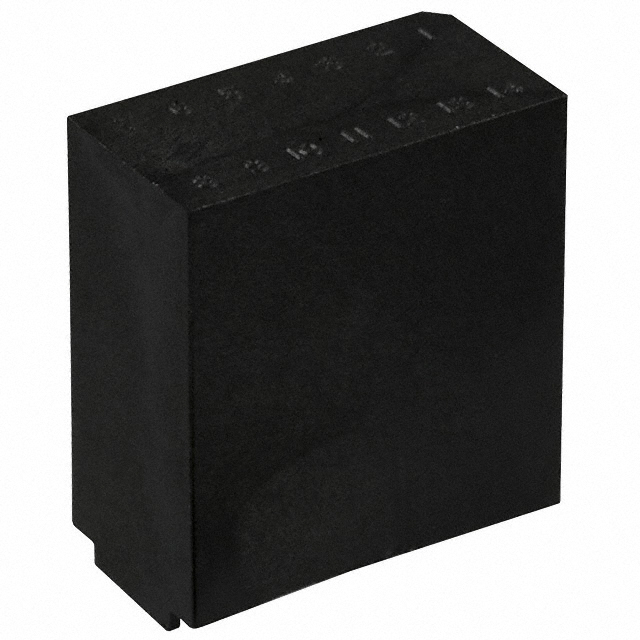

Aries Electronics 14-650-40																											Cap (Cover)	0600 Series Header	14
Aries Electronics 14-6503-20	3 A	UL94 V-0	0.36 in	9.14 mm	Wire Wrap	Gold	0.25 µm	10 µin	Through Hole	14	Polyamide (PA46) Nylon 4/6 Glass Filled	200 µin	5.08 µm	0.1 "	2.54 mm	Closed Frame	-55 C	105 ░C	Phosphor Bronze	15.24 mm	0.6 in	DIP	0.1 in	2.54 mm	Beryllium Copper	Tin
Aries Electronics 14-6501-21	1.5 A	UL94 V-0	0.69 in	17.52 mm	Wire Wrap	Gold	0.25 µm	10 µin	Through Hole	14	Polyamide (PA46) Nylon 4/6 Glass Filled	10 Áin	0.25 çm	0.1 "	2.54 mm	Closed Frame	-55 C	125 °C	Phosphor Bronze	15.24 mm	0.6 in	DIP	0.1 in	2.54 mm	Phosphor Bronze	Gold

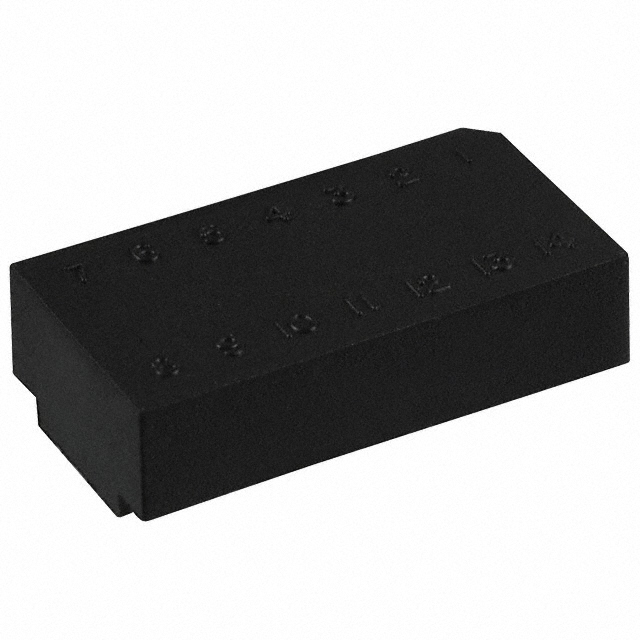

Aries Electronics 14-650-10																											Cap (Cover)	0600 Series Header	14
Aries Electronics 14-6501-20	1.5 A	UL94 V-0	0.69 in	17.52 mm	Wire Wrap		5.08 µm	200 µin	Through Hole	14	Polyamide (PA46) Nylon 4/6 Glass Filled	200 µin	5.08 µm	0.1 "	2.54 mm	Closed Frame	-55 C	125 °C	Phosphor Bronze	15.24 mm	0.6 in	DIP	0.1 in	2.54 mm	Phosphor Bronze	Tin
