DF23MR12 Series
Manufacturer: INFINEON
Beta
⌘K

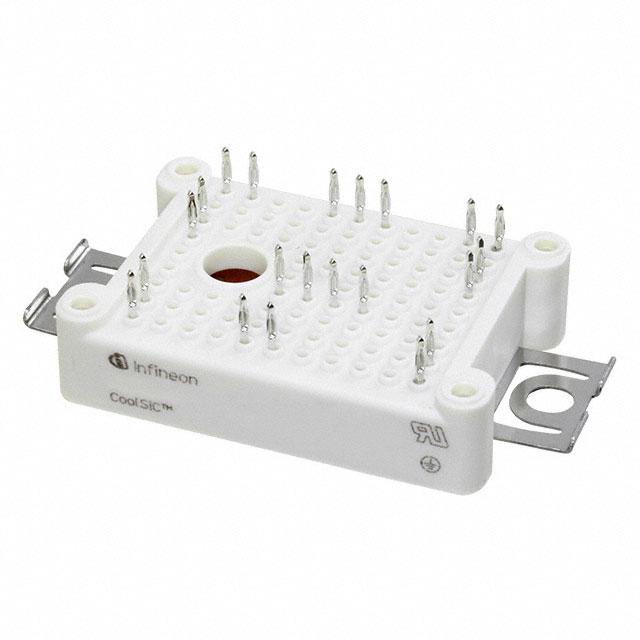

SIC 2N-CH 1200V AG-EASY1BM-2
| Part | Package / Case | Input Capacitance (Ciss) (Max) @ Vds | Operating Temperature [Min] | Operating Temperature [Max] | Technology | Configuration | Current - Continuous Drain (Id) @ 25°C | Vgs(th) (Max) @ Id | Drain to Source Voltage (Vdss) | Drain to Source Voltage (Vdss) | Gate Charge (Qg) (Max) @ Vgs [Max] | Mounting Type | Supplier Device Package | Rds On (Max) @ Id, Vgs | Gate Charge (Qg) (Max) @ Vgs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | Module | 2000 pF | -40 °C | 150 °C | Silicon Carbide (SiC) | 2 N-Channel (Dual) | 25 A | 5.5 V | 1.2 kV | 1200 V | 620 nC | Chassis Mount | AG-EASY1BM-2 | 45 mOhm | |
 INFINEON | Module | 1840 pF | -40 °C | 150 °C | Silicon Carbide (SiC) | 2 N-Channel (Dual) | 25 A | 5.55 V | 1.2 kV | 1200 V | Chassis Mount | AG-EASY1B-2 | 45 mOhm | 62 nC |
