ADM2485 Series
Manufacturer: Analog Devices
Beta
⌘K
2.5 KV SIGNAL ISOLATED, HIGH SPEED (16 MBPS), HALF DUPLEX RS-485 TRANSCEIVER W/ TRANSFORMER DRIVER
| Part | Inputs - Side 1/Side 2 [custom] | Inputs - Side 1/Side 2 [custom] | Supplier Device Package | Number of Channels [custom] | Mounting Type | Isolated Power | Package / Case [x] | Package / Case | Package / Case [y] | Voltage - Isolation | Common Mode Transient Immunity (Min) [Min] | Propagation Delay tpLH / tpHL (Max) [custom] | Propagation Delay tpLH / tpHL (Max) [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Technology | Type | Voltage - Supply | Channel Type | Data Rate | Function | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Analog Devices | 2 | 1 | 16-SOIC | 3 | Surface Mount | 0.295 in | 16-SOIC | 7.5 mm | 2500 Vrms | 25 kV/µs | 55 ns | 55 ns | 85 °C | -40 °C | Magnetic Coupling | RS422 RS485 | 3.3 V 5 V | Bidirectional | 16 MBd | ||||

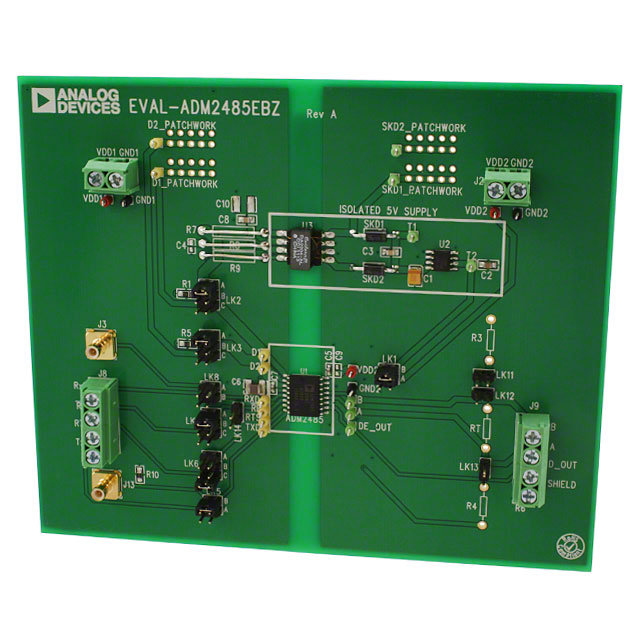

 Analog Devices | Interface | RS-422 RS-485 Transceiver | ADM2485 | Board(s) |
