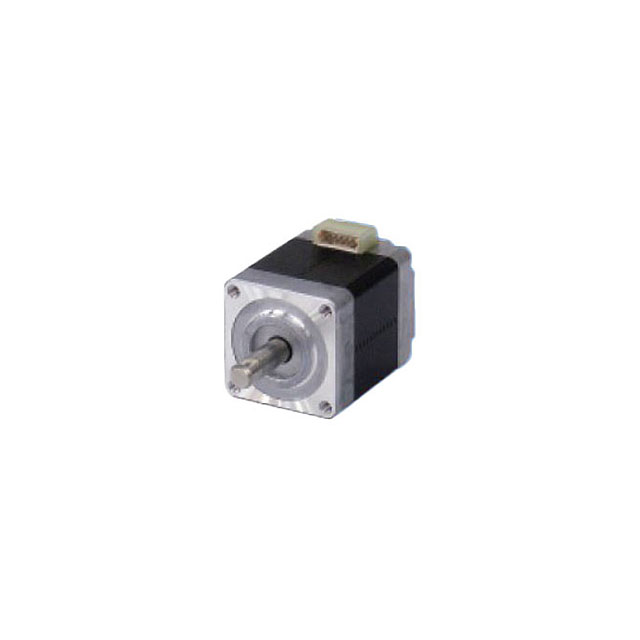

10PM Series
Manufacturer: NMB TECHNOLOGIES
Beta
⌘K
STEPPER MOTOR HYBRID BIPOLAR 24V
| Part | Weight | Weight | Rotor Inertia | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Diameter - Shaft [diameter] | Diameter - Shaft [diameter] | Length - Shaft and Bearing [x] | Length - Shaft and Bearing [x] | Steps per Revolution | Step Angle | Torque - Holding (oz-in / mNm) | Torque - Holding (oz-in / mNm) | Mounting Hole Spacing [custom] | Mounting Hole Spacing [custom] | NEMA Frame Size | Features | Type | Coil Resistance | Voltage - Rated | Termination Style | Current Rating (Amps) | Coil Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NMB TECHNOLOGIES | 150.14 g | 0.331 lb | 12 gcm˛ | 0.984 " | 25 mm | 0.984 " | 25 mm | 0.197 in | 5 mm | 10 mm | 0.394 " | 200 | 1.8 ° | 17 oz-in | 120 mNm | 20 mm | 0.787 in | 10 | Round Shaft | Hybrid | 1.6 Ohms | 24 VDC | Connector | 1.5 A | Bipolar |
