PHP20N06 Series
Manufacturer: Nexperia USA Inc.
Beta
⌘K

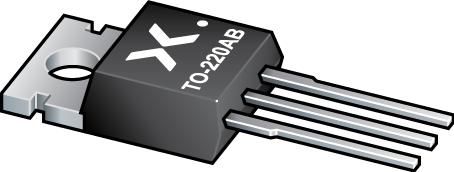

TRANS MOSFET N-CH 55V 20.3A 3-PIN(3+TAB) TO-220AB RAIL
| Part | Input Capacitance (Ciss) (Max) @ Vds | Technology | Vgs (Max) | Power Dissipation (Max) | Rds On (Max) @ Id, Vgs | Drain to Source Voltage (Vdss) | Operating Temperature [Max] | Operating Temperature [Min] | Supplier Device Package | Mounting Type | Gate Charge (Qg) (Max) @ Vgs | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Package / Case | FET Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nexperia USA Inc. | 483 pF | MOSFET (Metal Oxide) | 20 V | 62 W | 75 mOhm | 55 V | 175 °C | -55 °C | TO-220AB | Through Hole | 11 nC | 20.3 A | 10 V | TO-220-3 | N-Channel |
