STO67 Series
Manufacturer: STMicroelectronics
Beta
⌘K

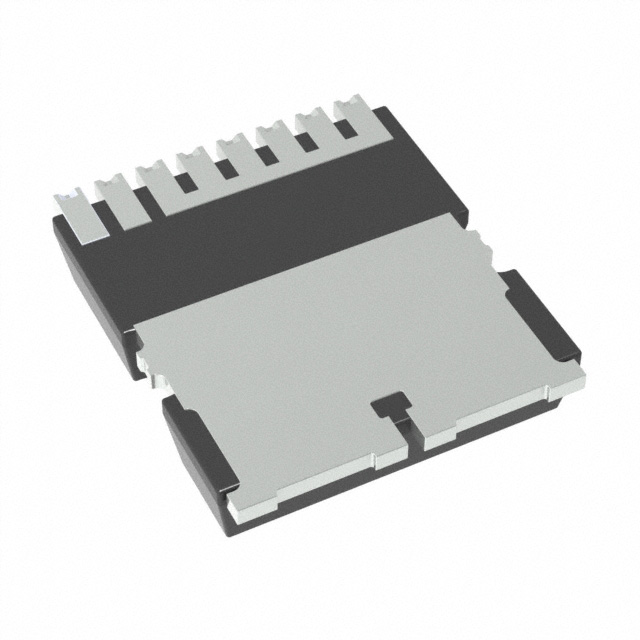

N-CHANNEL 600 V, 48 MOHM TYP., 58 A MDMESH DM6 POWER MOSFET IN A TO-LL PACKAGE
| Part | Supplier Device Package | Technology | Gate Charge (Qg) (Max) @ Vgs [Max] | Vgs (Max) | Rds On (Max) @ Id, Vgs | Input Capacitance (Ciss) (Max) @ Vds | Power Dissipation (Max) | Current - Continuous Drain (Id) @ 25°C | FET Type | Operating Temperature [Max] | Operating Temperature [Min] | Drive Voltage (Max Rds On, Min Rds On) | Drain to Source Voltage (Vdss) | Mounting Type | Vgs(th) (Max) @ Id | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 STMicroelectronics | TOLL (HV) | MOSFET (Metal Oxide) | 72.5 nC | 25 V | 59 mOhm | 3400 pF | 150 W | 33 A | N-Channel | 150 °C | -55 °C | 10 V | 600 V | Surface Mount | 4.75 V | 8-PowerSFN |
