TPC 080 Series

Catalog

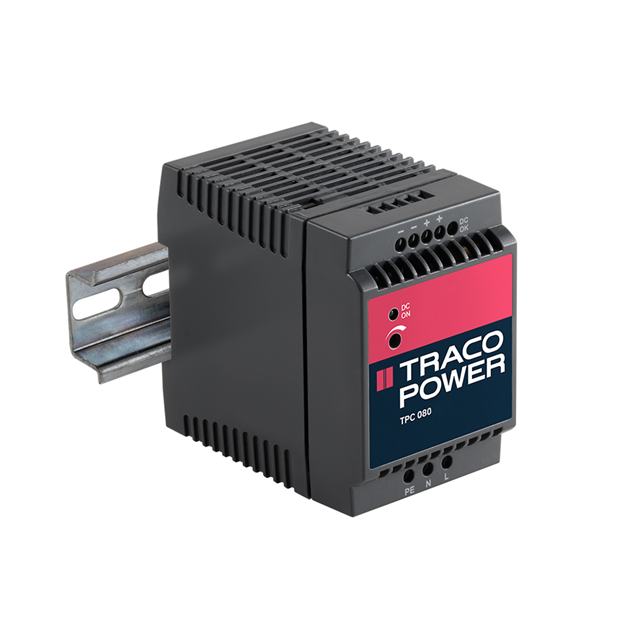

AC/DC DIN RAIL SUPPLY 12V 72W

Part	DC Voltage - Input (Max) [Max]	Number of Outputs	Current - Output (Max) [Max]	Input Type	Power (Watts)	Efficiency	AC Voltage - Input [Max]	AC Voltage - Input [Min]	Voltage - Output 1	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Features	DC Voltage - Input (Min) [Min]	Approval Agency	Applications
Traco Power TPC 080-112	375 V	1	6 A	AC or DC	72 W	87 %	264 VAC	85 VAC	12 V	70 °C	-25 °C	63 mm	89.9 mm	3.8 "	2.48 in	3.54 "	96.5 mm	Adjustable Output IP20 Universal Input	90 V	CB cCSAus CE SIQ	Industrial ITE (Commercial)
