ESDA6 Series

5 line ESD protection, 6.1 V VBR, in SOT666

Catalog

5 line ESD protection, 6.1 V VBR, in SOT666

Part	Supplier Device Package	Mounting Type	Package / Case	Voltage - Breakdown (Min) [Min]	Unidirectional Channels	Voltage - Reverse Standoff (Typ)	Applications	Type	Power - Peak Pulse	Operating Temperature [Max]	Operating Temperature [Min]	Unidirectional Channels [custom]	Current - Peak Pulse (10/1000µs)	Package / Case	Package / Case	Capacitance @ Frequency	Supplier Device Package [x]	Supplier Device Package [y]

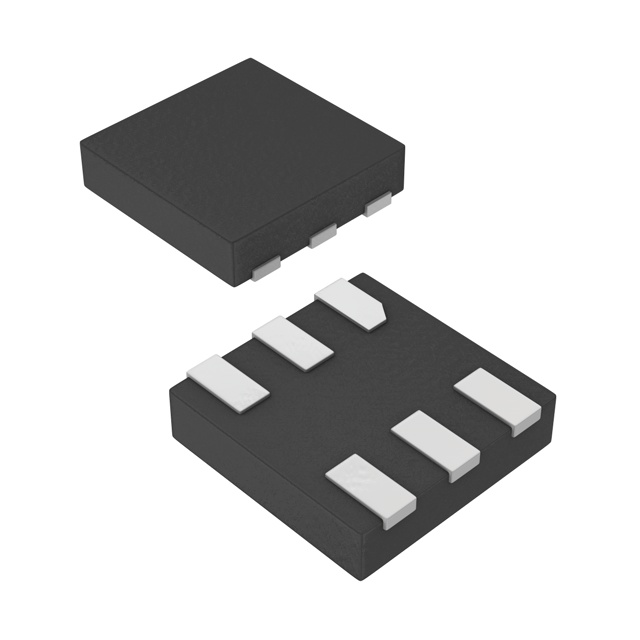

STMicroelectronics ESDA6V1-5T6	6-MicroDFN (1x1)	Surface Mount	6-UFDFN	6.1 V	5	3 V	General Purpose	Zener	35 W
STMicroelectronics ESDA6V1SC5	SOT-23-5	Surface Mount	SC-74A SOT-753	6.1 V		5.25 V	General Purpose	Zener	400 W	125 °C	-40 °C	4
STMicroelectronics ESDA6V1S3RL	20-SO	Surface Mount	20-SOIC (0.295" 7.50mm Width)	6.1 V	18	5.25 V	General Purpose	Zener	200 W

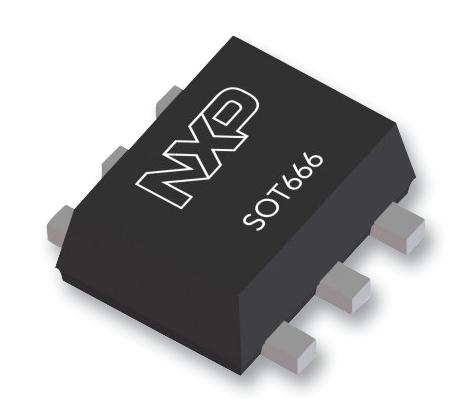

STMicroelectronics ESDA6V1-5P6	SOT-666IP	Surface Mount	SOT-563 SOT-666	6.1 V	5	3 V	General Purpose	Zener	150 W	150 °C	-40 °C

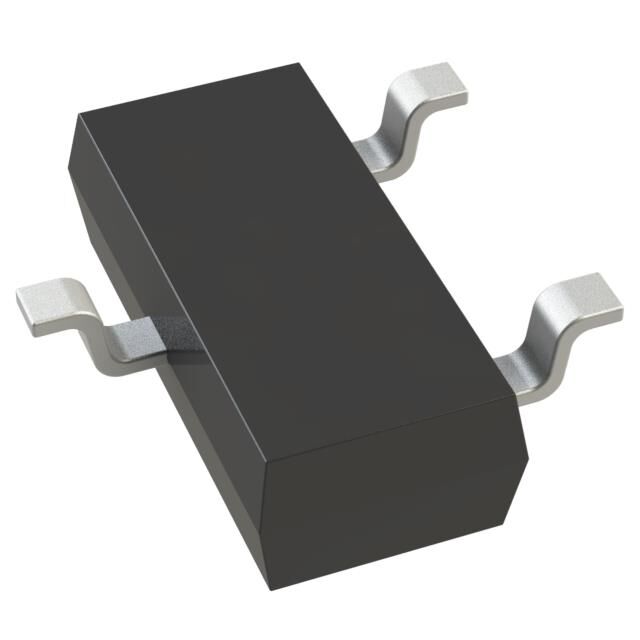

STMicroelectronics ESDA6V1L	SOT-23-3	Surface Mount	SC-59 SOT-23-3 TO-236-3	6.1 V	2	5.25 V	General Purpose	Zener	300 W	125 °C 150 °C	-40 C -40 °C		18 A
STMicroelectronics ESDA6V1P6	SOT-666IP	Surface Mount	SOT-563 SOT-666	6.1 V		3 V	General Purpose	Zener	150 W	150 °C	-40 °C	4
STMicroelectronics ESDA6V1U1	8-SOIC	Surface Mount	8-SOIC	6.1 V		5 V	General Purpose	Zener	200 W			6		0.154 in	3.9 mm
STMicroelectronics ESDA6V1M6	6-µQFN	Surface Mount	6-UFDFN	6.1 V		3 V	General Purpose	Zener	100 W	125 °C	-40 °C	4				70 pF	1.45	1
STMicroelectronics ESDA6V1U1RL	8-SOIC	Surface Mount	8-SOIC	6.1 V		5 V	General Purpose	Zener	200 W			6		0.154 in	3.9 mm

Catalog

5 line ESD protection, 6.1 V VBR, in SOT666

Description

The ESDAxxSC5 and ESDAxxSC6 are monolithic voltage suppressors designed to protect components which are connected to data and transmission lines against ESD. They clamp the voltage just above the logic level supply for positive transients, and to a diode drop below ground for negative transient.
