892-029 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SINGLE FML 29POS 0.100

Part	Material - Insulation	Termination Rows	Contact Finish	Gender	Color	Number of Positions	Card Thickness [Max]	Card Thickness [Min]	Flange Feature	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Card Type	Pitch	Pitch	Operating Temperature [Max]	Operating Temperature [Min]	Read Out	Number of Positions/Bay/Row	Contact Type	Termination	Contact Material	Mounting Type	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 892-029-524-107	Polyphenylene Sulfide (PPS)	1	Gold	Female	Black	29	0.07 in 1.78 mm	0.054 in 1.37 mm	Flush Mount M3 Threaded Insert Top Opening	0.25 Ám	10 Áin	1	Non Specified - Single Edge	0.1 "	2.54 mm	125 °C	-40 C	Single	29	Cantilever	Solder	Copper Alloy	Through Hole

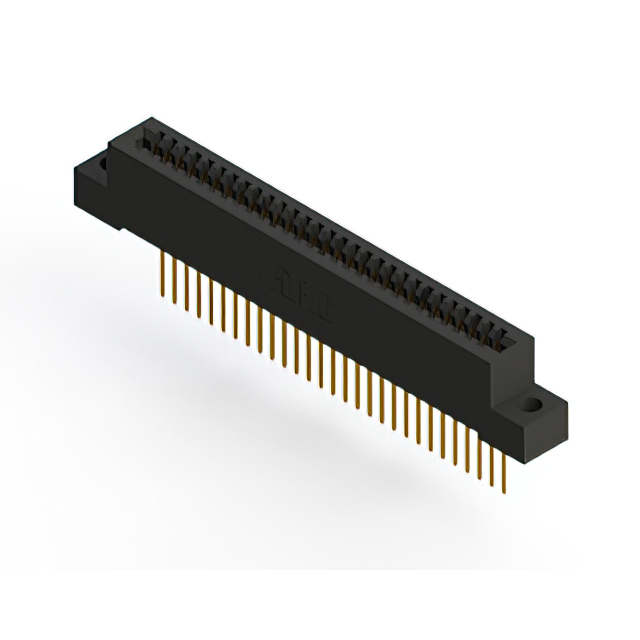

EDAC Inc. 892-029-540-104	Polyphenylene Sulfide (PPS)	1	Gold	Female	Black	29	0.07 in 1.78 mm	0.054 in 1.37 mm	Flush Mount Top Opening Unthreaded	0.25 Ám	10 Áin	1	Non Specified - Single Edge	0.1 "	2.54 mm	125 °C	-40 C	Single	29	Cantilever	Wire Wrap	Copper Alloy	Through Hole	0.156 "	3.96 mm

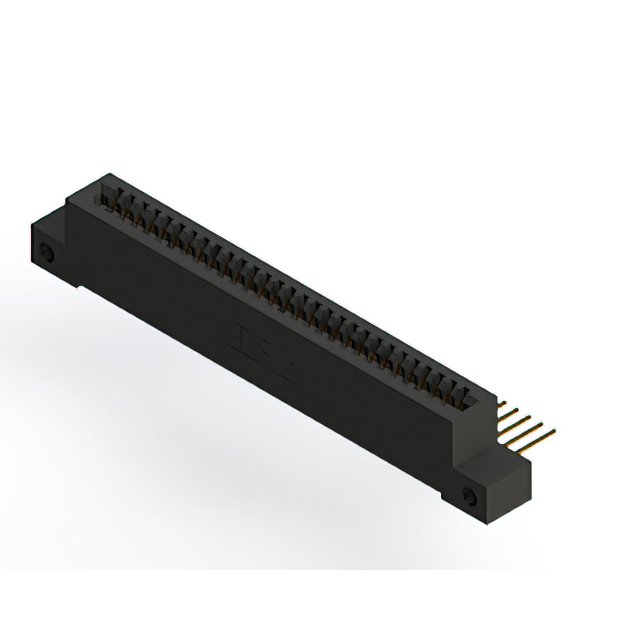

EDAC Inc. 892-029-559-112	Polyphenylene Sulfide (PPS)	1	Gold	Female	Black	29	0.07 in 1.78 mm	0.054 in 1.37 mm	Flush Mount Side Opening Unthreaded	0.25 Ám	10 Áin	1	Non Specified - Single Edge	0.1 "	2.54 mm	125 °C	-40 C	Single	29	Cantilever	Solder	Copper Alloy	Right Angle Through Hole	0.128 "	3.25 mm

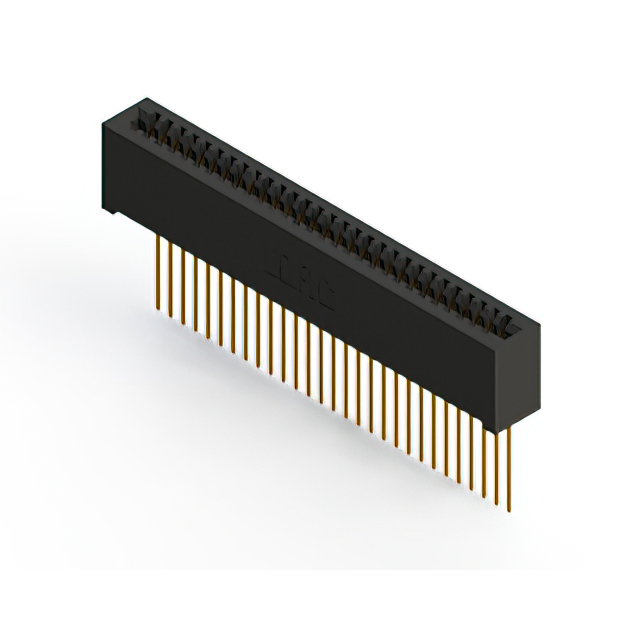

EDAC Inc. 892-029-541-101	Polyphenylene Sulfide (PPS)	1	Gold	Female	Black	29	0.07 in 1.78 mm	0.054 in 1.37 mm		0.25 Ám	10 Áin	1	Non Specified - Single Edge	0.1 "	2.54 mm	125 °C	-40 C	Single	29	Cantilever	Wire Wrap	Copper Alloy	Through Hole
EDAC Inc. 892-029-520-103	Polyphenylene Sulfide (PPS)	1	Gold	Female	Black	29	0.07 in 1.78 mm	0.054 in 1.37 mm	Floating Bobbin Flush Mount	0.25 Ám	10 Áin	1	Non Specified - Single Edge	0.1 "	2.54 mm	125 °C	-40 C	Single	29	Cantilever	Solder	Copper Alloy	Through Hole	0.116 "	2.95 mm
EDAC Inc. 892-029-520-107	Polyphenylene Sulfide (PPS)	1	Gold	Female	Black	29	0.07 in 1.78 mm	0.054 in 1.37 mm	Flush Mount M3 Threaded Insert Top Opening	0.25 Ám	10 Áin	1	Non Specified - Single Edge	0.1 "	2.54 mm	125 °C	-40 C	Single	29	Cantilever	Solder	Copper Alloy	Through Hole
EDAC Inc. 892-029-500-102	Polyphenylene Sulfide (PPS)	1	Gold	Female	Black	29	0.07 in 1.78 mm	0.054 in 1.37 mm	Flush Mount Top Opening Unthreaded	0.25 Ám	10 Áin	1	Non Specified - Single Edge	0.1 "	2.54 mm	125 °C	-40 C	Single	29	Cantilever	Solder Eyelet(s)	Copper Alloy	Through Hole	0.128 "	3.25 mm
EDAC Inc. 892-029-520-108	Polyphenylene Sulfide (PPS)	1	Gold	Female	Black	29	0.07 in 1.78 mm	0.054 in 1.37 mm	4-40 Flush Mount Threaded Insert Top Opening	0.25 Ám	10 Áin	1	Non Specified - Single Edge	0.1 "	2.54 mm	125 °C	-40 C	Single	29	Cantilever	Solder	Copper Alloy	Through Hole

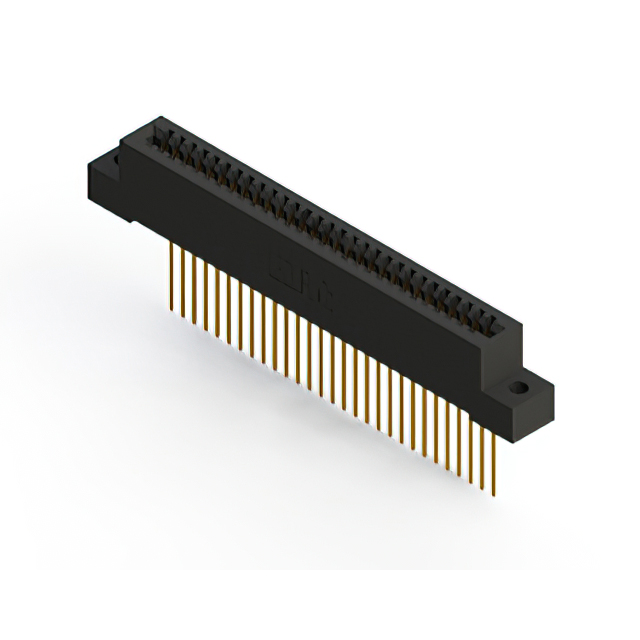

EDAC Inc. 892-029-541-102	Polyphenylene Sulfide (PPS)	1	Gold	Female	Black	29	0.07 in 1.78 mm	0.054 in 1.37 mm	Flush Mount Top Opening Unthreaded	0.25 Ám	10 Áin	1	Non Specified - Single Edge	0.1 "	2.54 mm	125 °C	-40 C	Single	29	Cantilever	Wire Wrap	Copper Alloy	Through Hole	0.128 "	3.25 mm
EDAC Inc. 892-029-521-103	Polyphenylene Sulfide (PPS)	1	Gold	Female	Black	29	0.07 in 1.78 mm	0.054 in 1.37 mm	Floating Bobbin Flush Mount	0.25 Ám	10 Áin	1	Non Specified - Single Edge	0.1 "	2.54 mm	125 °C	-40 C	Single	29	Cantilever	Solder	Copper Alloy	Through Hole	0.116 "	2.95 mm
