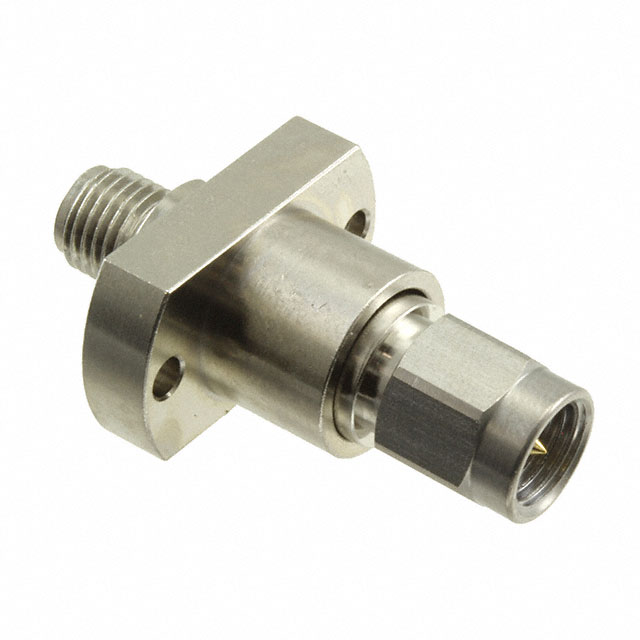

HRM-PA Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K
CONNECTOR
| Part | Body Material | Center Contact Material | Mating Cycles | Body Finish | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Center Contact Plating | Impedance | Convert From (Adapter End) | Convert To (Adapter End) | Frequency - Max [Max] | Adapter Series | Mounting Type | Mounting Feature | Style | Adapter Type | Conversion Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | ||||||||||||||||||
 Hirose Electric Co Ltd | Phosphor Bronze Stainless Steel | Beryllium Copper | 1000 | Gold Passivated | -55 C | 85 °C | Polytetrafluoroethylene (PTFE) | Gold | 50 Ohms | Female Socket SMA Jack | SMA Plug Male Pin | 6000 MHz | SMA to SMA | Panel Mount | Flange | Straight | Plug to Jack | Same Series |
