UM-QPJ-1 Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K
CONN UMC JACK STR 50OHM SOLDER
| Part | Body Material | Operating Temperature [Max] | Operating Temperature [Min] | Dielectric Material | Center Contact Plating | Mating Cycles | Body Finish | Connector Type | Housing Color | Shield Termination | Cable Group | Impedance | Number of Ports | Frequency - Max [Max] | Mounting Type | Connector Style | Center Contact Material | Fastening Type | Mounting Feature | Contact Termination | Includes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | Brass | 85 °C | -30 ░C | Polytetrafluoroethylene (PTFE) | Gold | 500 | Gold | Jack Male Pin | Gold | Clamp | RG-196 | 50 Ohms | 1 | 3 GHz | Panel Mount | U.FL (UMCC) | Brass | Snap-On | Bulkhead - Front Side Nut | Solder | |
Hirose Electric Co Ltd | |||||||||||||||||||||
Hirose Electric Co Ltd | |||||||||||||||||||||

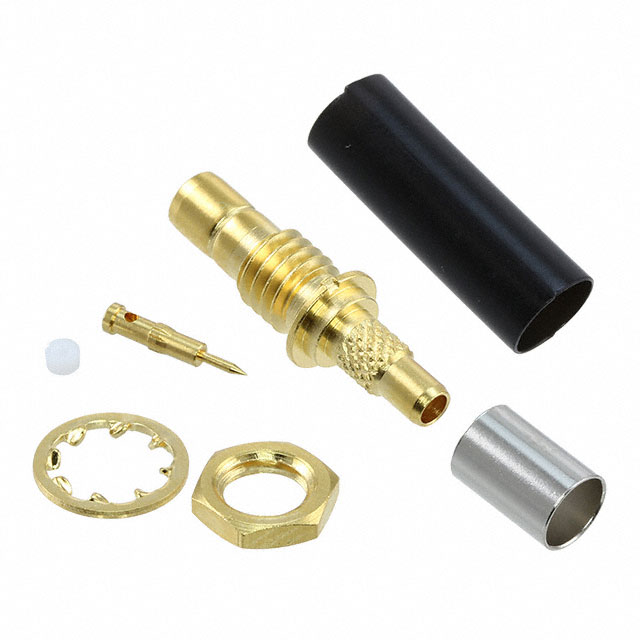

 Hirose Electric Co Ltd | Brass | 85 °C | -30 ░C | Polytetrafluoroethylene (PTFE) | Gold | 500 | Gold | Jack Male Pin | Gold | Crimp | 1.5D-2V 1.5D-HQEV 1.5D-QEV | 50 Ohms | 1 | 2 GHz | Panel Mount | U.FL (UMCC) | Brass | Snap-On | Bulkhead - Front Side Nut | Solder | 1 Connector 1 Heat Shrink 1 Lockwasher 1 Nut |
Hirose Electric Co Ltd |
