ADP220 Series

Catalog

DUAL, 200MA, LOW NOISE, HIGH PSRR VOLTAGE REGULATOR

Part	Protection Features	Current - Supply (Max) [Max]	Voltage - Input (Max) [Max]	Number of Regulators	Output Type	Current - Output	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Current - Quiescent (Iq)	Voltage - Output (Min/Fixed)	Control Features	Supplier Device Package [x]	Supplier Device Package [y]	Supplier Device Package	Output Configuration	Mounting Type	Voltage Dropout (Max) [Max]	Regulator Type	Supplied Contents	Channels per IC	Utilized IC / Part	Contents	Voltage - Input [Min]	Voltage - Input [Max]	Board Type	Voltage - Output	Voltage Dropout (Max)	PSRR [Min]	PSRR [Max]	Voltage - Output (Min/Fixed) [Min]

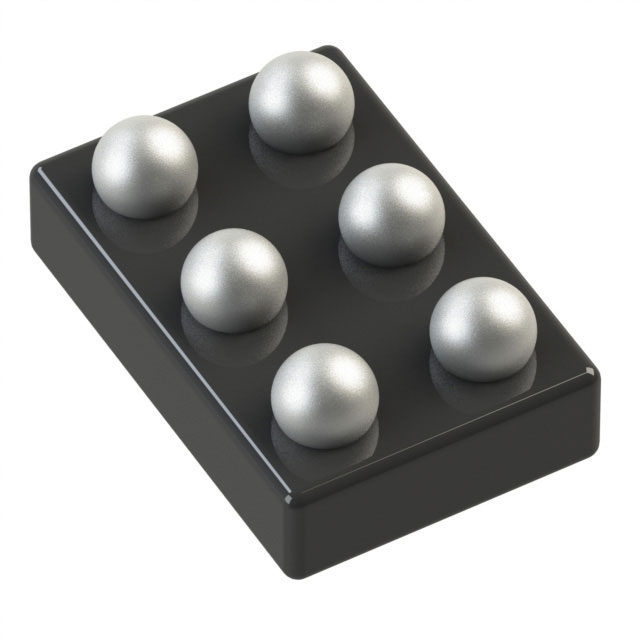

Analog Devices ADP220ACBZ-1812R7	Over Current Over Temperature	220 µA	5.5 V	2	1.81 mOhm	200 mA	-40 °C	125 ¯C	6-WFBGA WLCSP	120 µA	1.2 V 1.8 V	Enable	1.45	0.95	6-WLCSP	Positive	Surface Mount
Analog Devices ADP220ACBZ-1827R7	Over Current Over Temperature	220 µA	5.5 V	2	1.81 mOhm	200 mA	-40 °C	125 ¯C	6-WFBGA WLCSP	120 µA	1.8 V 2.7 V	Enable	1.45	0.95	6-WLCSP	Positive	Surface Mount	0.23 V
Analog Devices ADP220-2828-EVALZ						200 mA													Positive Fixed	Board(s)	2 - Dual	ADP220	Board(s)	2.5 V	5.5 V	Fully Populated	2.8 V
Analog Devices ADP220ACBZ-2827R7	Over Current Over Temperature	220 µA	5.5 V	2	1.81 mOhm	200 mA	-40 °C	125 ¯C	6-WFBGA WLCSP	120 µA	2.7 V 2.8 V	Enable	1.45	0.95	6-WLCSP	Positive	Surface Mount											0.23 V	40 dB	68 dB
Analog Devices ADP220ACBZ-2525R7	Over Current Over Temperature	220 µA	5.5 V	2	1.81 mOhm	200 mA	-40 °C	125 ¯C	6-WFBGA WLCSP	120 µA	2.5 V	Enable	1.45	0.95	6-WLCSP	Positive	Surface Mount											0.23 V			2.5 V
Analog Devices ADP220ACBZ-1118R7	Over Current Over Temperature	220 µA	5.5 V	2	1.81 mOhm	200 mA	-40 °C	125 ¯C	6-WFBGA WLCSP	120 µA	1.1 V 1.8 V	Enable	1.45	0.95	6-WLCSP	Positive	Surface Mount
Analog Devices ADP220ACBZ-2812R7	Over Current Over Temperature	220 µA	5.5 V	2	1.81 mOhm	200 mA	-40 °C	125 ¯C	6-WFBGA WLCSP	120 µA		Enable	1.45	0.95	6-WLCSP	Positive	Surface Mount	0.23 V											40 dB	68 dB
