1189A Series

Catalog

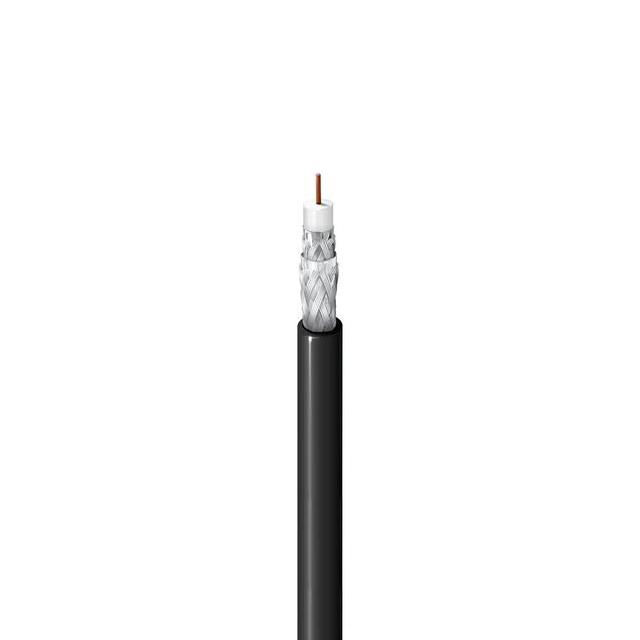

COAX 75 OHM RG6 18AWG

Part	VoP, Velocity of Propagation	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Dielectric Material	Conductor Material	Shield Material	Shield Coverage	Operating Temperature [Max]	Operating Temperature [Min]	Impedance	Usage	Shield Type	Wire Gauge	Features	Jacket (Insulation) Material	Cable Group	Cable Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Strand	Jacket Color	Length [x]	Length [x]

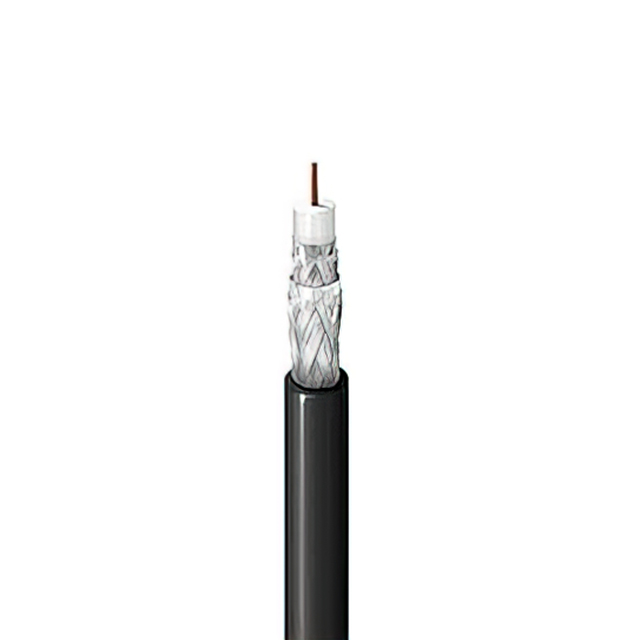

Belden Inc. 1189A 0091000	83	0.18 in	4.57 mm	Foam Polyethylene (FPE)	Copper Coated Steel	Aluminum	40 % 60 % 100 %	80 °C	-40 C	75 Ohms	CATV	Braid Foil	18 AWG	Quad Shield	Poly-Vinyl Chloride (PVC)	RG-6	Coaxial	0.294 in	7.47 mm	Solid	White	304.8 m	1000 ft
Belden Inc. 1189A 009N1000	83	0.18 in	4.57 mm	Foam Polyethylene (FPE)	Copper Coated Steel	Aluminum	40 % 60 % 100 %	80 °C	-40 C	75 Ohms	CATV	Braid Foil	18 AWG	Quad Shield	Poly-Vinyl Chloride (PVC)	RG-6	Coaxial	0.294 in	7.47 mm	Solid	White	304.8 m	1000 ft
Belden Inc. 1189A 010U1000	83	0.18 in	4.57 mm	Foam Polyethylene (FPE)	Copper Coated Steel	Aluminum	40 % 60 % 100 %	80 °C	-40 C	75 Ohms	CATV	Braid Foil	18 AWG	Quad Shield	Poly-Vinyl Chloride (PVC)	RG-6	Coaxial	0.294 in	7.47 mm	Solid	Black	304.8 m	1000 ft
Belden Inc. 1189A 009U1000	83	0.18 in	4.57 mm	Foam Polyethylene (FPE)	Copper Coated Steel	Aluminum	40 % 60 % 100 %	80 °C	-40 C	75 Ohms	CATV	Braid Foil	18 AWG	Quad Shield	Poly-Vinyl Chloride (PVC)	RG-6	Coaxial	0.294 in	7.47 mm	Solid	White	304.8 m	1000 ft
Belden Inc. 1189A 010U500	83	0.18 in	4.57 mm	Foam Polyethylene (FPE)	Copper Coated Steel	Aluminum	40 % 60 % 100 %	80 °C	-40 C	75 Ohms	CATV	Braid Foil	18 AWG	Quad Shield	Poly-Vinyl Chloride (PVC)	RG-6	Coaxial	0.294 in	7.47 mm	Solid	Black	152.4 m	500 ft
