LX5586H Series

5GHz FEM, 3.3V, 2.5x2.5x0.45mm

Catalog

5GHz FEM, 3.3V, 2.5x2.5x0.45mm

Part	Package / Case	Frequency [Min]	Frequency [Max]	Supplier Device Package	RF Type	Features

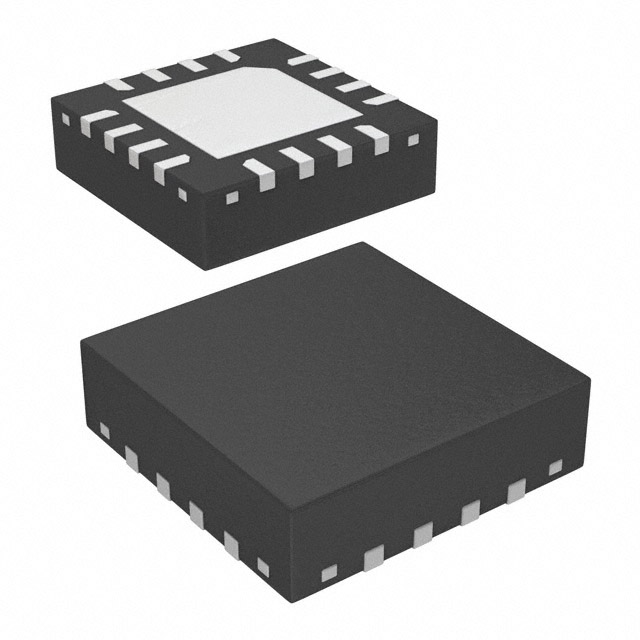

Microchip Technology LX5586HLL	16-XFQFN Exposed Pad	5.15 GHz	5.85 GHz	16-QFN (2.5x2.5)	802.11ac	SPDT
Microchip Technology LX5586ALL-TR	16-XFQFN Exposed Pad	5.15 GHz	5.85 GHz	16-QFN (2.5x2.5)	802.11n/ac	SPDT
Microchip Technology LX5586HLL-TR	16-XFQFN Exposed Pad	5.15 GHz	5.85 GHz	16-QFN (2.5x2.5)	802.11n/ac	SPDT
Microchip Technology LX5586LL-TR	16-XFQFN Exposed Pad	4.8 GHz	5.85 GHz	16-QFN (2.5x2.5)	General Purpose	SPDT

Catalog

5GHz FEM, 3.3V, 2.5x2.5x0.45mm

Key Features

• * Supply Voltage: 3.2V to 4.6V

• * Integrated 5GHz PA, LNA, and SPDT Tx/Rx Switch

• * POUT = 17dBm (typical) at -35dB EVM (256QAM/80MHz)

• * Bypassable Low Noise Figure LNA

• * Small Footprint: 2.5 x 2.5mm²

• * Low Profile: 0.45mm max

• * RoHS Compliant & Halogen Free

Description

The LX5586H is a complete integrated 5GHz Front-End Module (FEM) for an IEEE 802.11ac system. It includes a highly linear 5GHz Power Amplifier (PA) with power detector, Low Noise Amplifier (LNA) with bypass capability, and SPDT antenna switch. This highly integrated FEM only requires one bypass cap thus reducing system footprint, bill of materials, and manufacturing cost.
