VS5V0 Series

RASMID™ Series - Transient Voltage Suppressor

Catalog

RASMID™ Series - Transient Voltage Suppressor

Part	Voltage - Clamping (Max) @ Ipp [Max]	Current - Peak Pulse (10/1000µs)	Package / Case	Package / Case	Power - Peak Pulse	Voltage - Breakdown (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Bidirectional Channels [custom]	Type	Mounting Type	Supplier Device Package	Voltage - Reverse Standoff (Typ)	Capacitance @ Frequency	Current - Peak Pulse (10/1000µs)	Unidirectional Channels [custom]	Operating Temperature

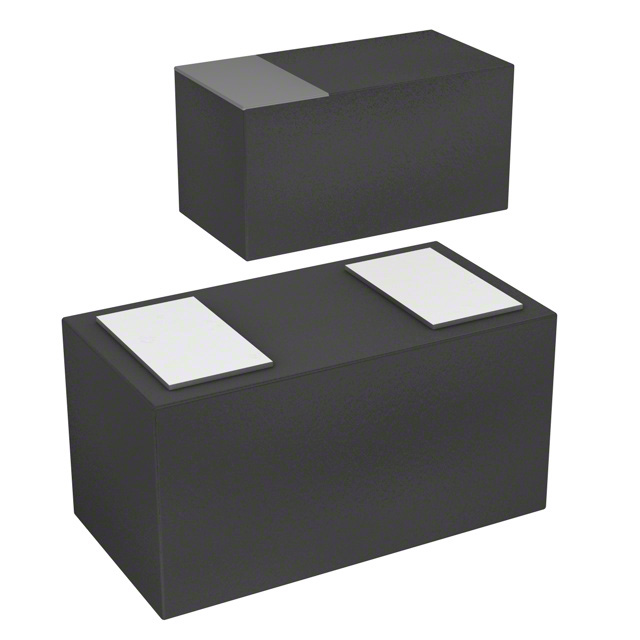

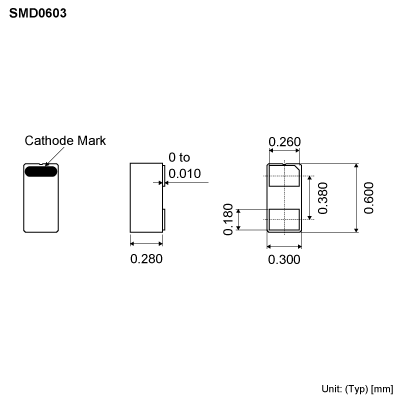

Rohm Semiconductor VS5V0BB1EST15R	11.4 V	2.2 A	0603 Metric	0201	25 W	6 V	150 °C	-55 °C	General Purpose	1	Zener	Surface Mount	DSN0603-2 SMD0603 SOD-962	5 V
Rohm Semiconductor VS5V0BA1FST27N	9.15 V	2.9 A		2-SMD No Lead	26.5 W	5.3 V	150 °C	-55 °C	General Purpose	1	Zener	Surface Mount	SMD0402	5 V	6 pF	0.4 µs
Rohm Semiconductor VS5V0BL1HST15R	18 V	2 A	0603 Metric	0201	36 W	6 V	150 °C	-55 °C	General Purpose	1	Zener	Surface Mount	DSN0603-2 SMD0603 SOD-962	5 V
Rohm Semiconductor VS5V0BN1HST15R	18 V	2 A	0603 Metric	0201	36 W	6 V	150 °C	-55 °C	General Purpose	1	Zener	Surface Mount	DSN0603-2 SMD0603 SOD-962	5 V
Rohm Semiconductor VS5V0BB1FST27N	9.5 V	4.75 A		2-SMD No Lead	45 W	5.3 V	150 °C	-55 °C	General Purpose	1	Zener	Surface Mount	SMD0402	5 V
Rohm Semiconductor VS5V0UA1LAMTR	10.5 V	57 A		SOD-128	600 W	6.45 V			General Purpose		Zener	Surface Mount	PMDTM	5 V			1	150 °C

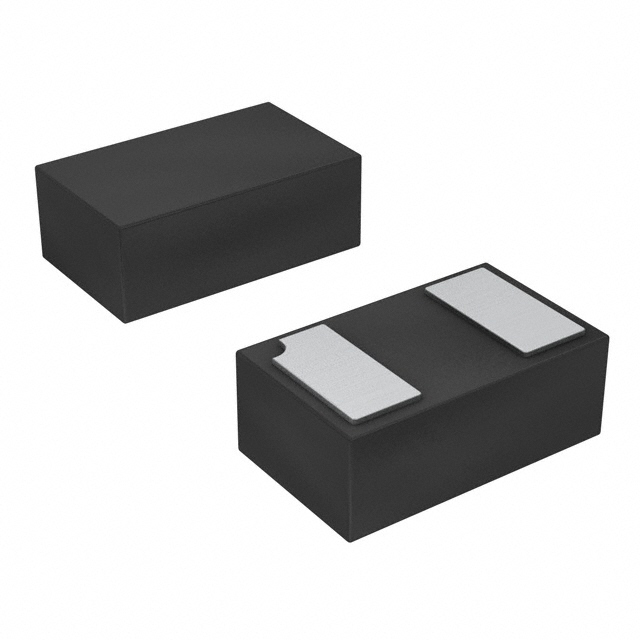

Rohm Semiconductor VS5V0BL1QST18R	17 V	1.8 A		2-SMD No Lead	30.6 W	7 V	150 °C	-55 °C	General Purpose	1	Zener	Surface Mount	SMD1006	5 V

Catalog

RASMID™ Series - Transient Voltage Suppressor

Description

VS5V0BA1FS is the TVS diode which is ideal for I/F protection in electronic devices and 01005(0402)-size. Low clamping voltage and high surge resistance provide superior protection.
