TF46 Series

Catalog

FFC & FPC CONNECTORS FFC/FPC CONNECTOR 0.5MM

Part	Mating Cycles	Housing Color	Actuator Color	Current Rating (Amps)	Contact Finish Thickness	Contact Finish Thickness	Locking Feature	Housing Material	Mounting Type	Number of Positions	Termination	Height Above Board [z]	Height Above Board [z]	FFC, FCB Thickness	Voltage Rating	Contact Material	Features	Actuator Material	Pitch	Pitch	Connector/Contact Type	Flat Flex Type	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Cable End Type	Material Flammability Rating
Hirose Electric Co Ltd TF46-60S-0.5SH(800)	50	Black	Black	0.5 A	1.25 Áin	0.03 Ám	Backlock Flip Lock	Liquid Crystal Polymer (LCP)	Right Angle Surface Mount	60	Solder	2.2 mm	0.087 in	0.3 mm	50 V	Copper Alloy	Solder Retention Zero Insertion Force (ZIF)	Liquid Crystal Polymer (LCP)	0.02 "	0.5 mm	Contacts Top and Bottom	FFC FPC	Gold	-40 C	105 ░C	Tabbed	UL94 V-0

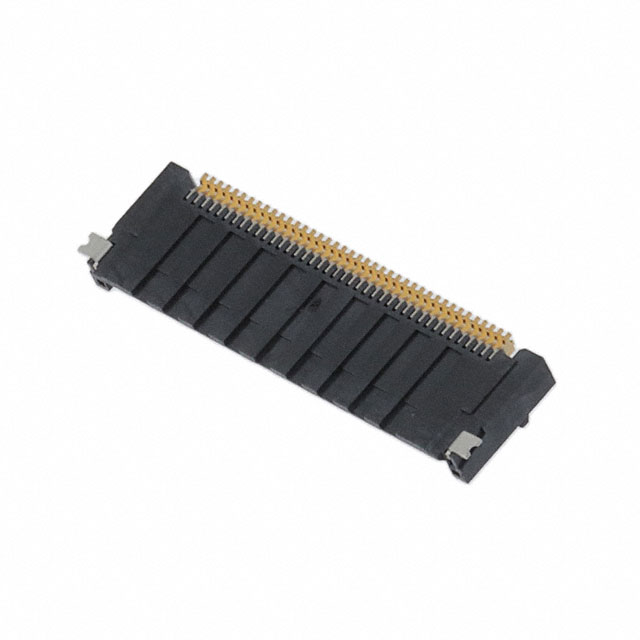

Hirose Electric Co Ltd TF46-40S-0.5SH(800)	20	Black	Black	0.5 A	1.25 Áin	0.03 Ám	Backlock Flip Lock	Liquid Crystal Polymer (LCP)	Right Angle Surface Mount	40	Solder	2.2 mm	0.087 in	0.3 mm	50 V	Copper Alloy	Solder Retention Zero Insertion Force (ZIF)	Liquid Crystal Polymer (LCP)	0.02 "	0.5 mm	Contacts Top and Bottom	FFC FPC	Gold	-40 C	105 ░C	Tabbed	UL94 V-0
