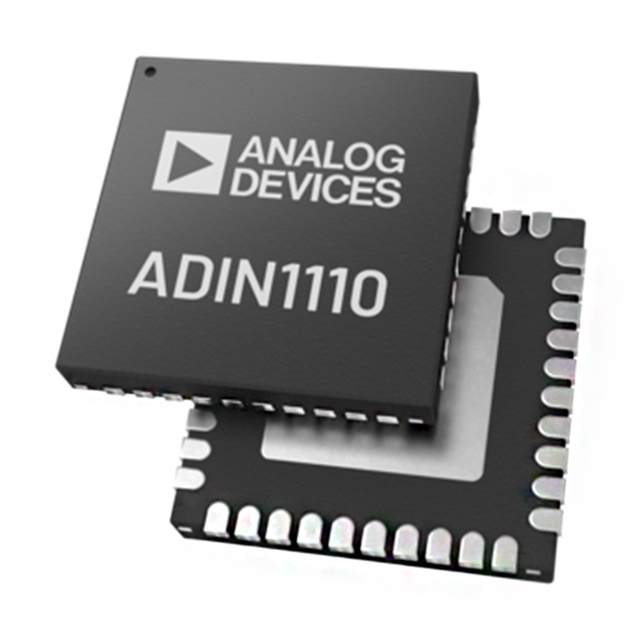

ADIN1110 Series

Robust, Industrial, Low Power 10BASE-T1L Ethernet MAC-PHY

Catalog

Robust, Industrial, Low Power 10BASE-T1L Ethernet MAC-PHY

Part	Package / Case	Protocol	Type	Data Rate	Operating Temperature [Max]	Operating Temperature [Min]	Duplex	Voltage - Supply [Max]	Voltage - Supply [Min]	Mounting Type	Supplier Device Package
Analog Devices ADIN1110BCPZ-R7	40-WFQFN Exposed Pad CSP	Ethernet	Transceiver	10 Mbps	105 °C	-40 °C	Full Half	1.2 V 3.46 V	1 V 1.71 V 3.13 V	Surface Mount	40-LFCSP (6x6)

Catalog

Robust, Industrial, Low Power 10BASE-T1L Ethernet MAC-PHY

Key Features

• 10BASE-T1L IEEE Standard 802.3cg-2019 compliant

• Cable reach up to 1700 m with 1.0 V/2.4 V

• Integrated MAC with SPISupports OPEN Alliance 10BASE-T1x MAC-PHY serial interface16 MAC address filtersHigh and low priority queues with 28 kB bufferCut through or store forward operationIEEE 1588 timestamp supportStatistics counters

• Supports OPEN Alliance 10BASE-T1x MAC-PHY serial interface

• 16 MAC address filters

• High and low priority queues with 28 kB buffer

• Cut through or store forward operation

• IEEE 1588 timestamp support

• Statistics counters

• Low power consumption: 42 mW (dual-supply, 1.0 V p-p)

• DiagnosticsCable fault detection with TDRLink quality indicator with MSEFrame generator and checkerMultiple loopback modesIEEE test mode support

• Cable fault detection with TDR

• Link quality indicator with MSE

• Frame generator and checker

• Multiple loopback modes

• IEEE test mode support

• Supports 1.0 V p-p and 2.4 V p-p transmit levels

• MDI polarity detection and correction

• 4-pin MDI (RXN, RXP, TXN, and TXP)

• Suitable for intrinsic safety applications

• External termination resistors

• Autonegotiation

• 25 MHz crystal or external clock input

• Electromagnetic compatibility (EMC) test standardsIEC 61000-4-4 electrical fast transient (±4 kV)IEC 61000-4-2 ESD (±4 kV contact discharge)IEC 61000-4-2 ESD (±8 kV air discharge)IEC 61000-4-6 conducted immunity (10 V/m)IEC 61000-4-5 surge (±4 kV)IEC 61000-4-3 radiated immunity (Class A)EN55032 radiated emissions (Class B)

• IEC 61000-4-4 electrical fast transient (±4 kV)

• IEC 61000-4-2 ESD (±4 kV contact discharge)

• IEC 61000-4-2 ESD (±8 kV air discharge)

• IEC 61000-4-6 conducted immunity (10 V/m)

• IEC 61000-4-5 surge (±4 kV)

• IEC 61000-4-3 radiated immunity (Class A)

• EN55032 radiated emissions (Class B)

• Small package: 40-lead (6 mm × 6 mm) LFCSP

• Temperature rangeIndustrial: −40°C to +85°CExtended: −40°C to +105°C

• Industrial: −40°C to +85°C

• Extended: −40°C to +105°C

Description

The ADIN1110 is an ultra low power, single port, 10BASE-T1L transceiver design for industrial Ethernet applications and is compliant with the IEEE®802.3cg-2019™Ethernet standard for long reach, 10 Mbps single pair Ethernet (SPE). Featuring an integrated media access control (MAC) interface, the ADIN1110 enables direct connectivity with a variety of host controllers via a 4-wire serial peripheral interface (SPI). This SPI enables the use of lower power processors without an integrated MAC, which provides for the lowest overall system level power consumption. The SPI can be configured to use the Open Alliance SPI protocol or a generic SPI protocol.The programmable transmit levels, external termination resistors, and independent receive and transmit pins make the ADIN1110 suited to intrinsic safety applications.The ADIN1110 has an integrated voltage supply monitoring and power-on reset (POR) circuitry to improve system level robustness.The ADIN1110 is available in a 40-lead, 6 mm × 6 mm lead frame chip scale package (LFCSP).APPLICATIONSField instrumentsBuilding automation and fire safetyFactory automationEdge sensors and actuatorsCondition monitoring and machine connectivity
