C0444 Series
Manufacturer: Prysmian Group
Beta
⌘K

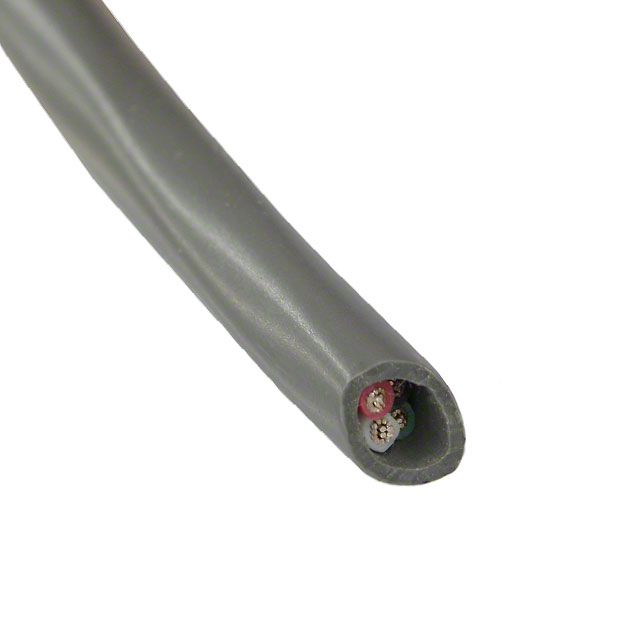

CABLE 4COND 18AWG GRAY 100'
| Part | Jacket (Insulation) Material | Length | Length | Operating Temperature [Min] | Operating Temperature [Max] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Insulation | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Voltage | Conductor Strand [custom] | Conductor Strand [custom] | Number of Conductors | Conductor Material | Length [x] | Length [x] | Cable Type | Jacket Color | Wire Gauge | Usage | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Prysmian Group | Poly-Vinyl Chloride (PVC) | 15.24 m 304.8 m | 50 ft 1000 ft | -20 ░C | 105 ░C | 6.53 mm | 0.257 in | Poly-Vinyl Chloride (PVC) | 0.94 mm | 0.037 in | 300 VDC | 16 | 30 AWG | 4 | Copper Annealed Tinned | 100 ft | 30.5 m | Multi-Conductor | Gray | 18 AWG | Communication Control | ASTM B-33 |
Prysmian Group | Poly-Vinyl Chloride (PVC) | 15.24 m 304.8 m | 50 ft 1000 ft | -20 ░C | 105 ░C | 6.53 mm | 0.257 in | Poly-Vinyl Chloride (PVC) | 0.94 mm | 0.037 in | 300 VDC | 16 | 30 AWG | 4 | Copper Annealed Tinned | 100 ft | 30.5 m | Multi-Conductor | Gray | 18 AWG | Communication Control | ASTM B-33 |
