C0474 Series
Manufacturer: Prysmian Group
Beta
⌘K

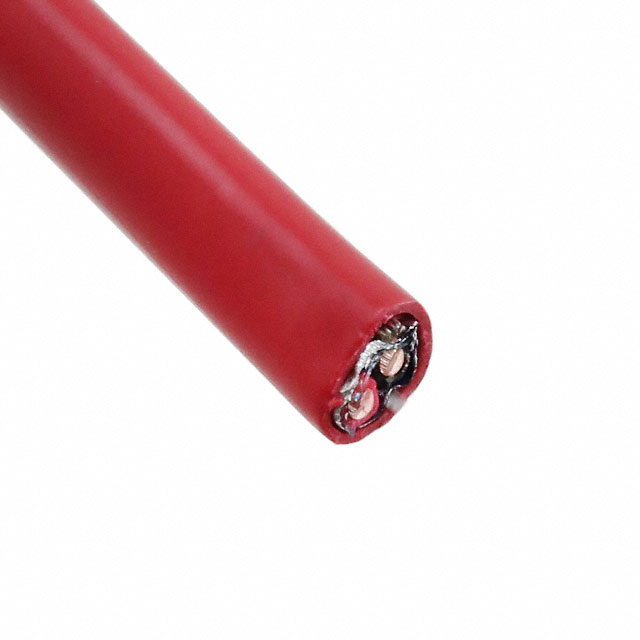

CABLE 2COND 16AWG RED SHLD
| Part | Length | Length | Length [x] | Length [x] | Cable Type | Voltage | Shield Type | Jacket (Insulation) Material | Jacket Color | Conductor Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Strand | Conductor Insulation | Number of Conductors | Wire Gauge | Ratings | Operating Temperature [Min] | Operating Temperature [Max] | Usage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Features | Shield Material | Shield Coverage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Prysmian Group | 15.24 m 152.4 m 304.8 m | 50 ft 500 ft 1000 ft | 100 ft | 30.5 m | Multi-Conductor | 300 VDC | Foil | Poly-Vinyl Chloride (PVC) | Red | Copper Annealed Bare | 5.44 mm | 0.214 in | Solid | Polypropylene (PP) | 2 | 16 AWG | ASTM B-3 | 0 °C | 60 °C | Alarm Safety | 0.02 " | 0.508 mm | Drain Wire | ||
Prysmian Group | 15.24 m 304.8 m | 50 ft 1000 ft | Multi-Conductor | 300 VDC | Foil | Poly-Vinyl Chloride (PVC) | Red | Copper Annealed Bare | 5.44 mm | 0.214 in | Solid | Polypropylene (PP) | 2 | 16 AWG | ASTM B-3 | 0 °C | 60 °C | Alarm Safety | 0.02 " | 0.508 mm | Drain Wire | Flexfoil® | 100 % |
