MIC37252 Series

Catalog

LV, 2.5A F2432CAP LDO 5 DDPAK T/R ROHS COMPLIANT: YES

Part	Voltage - Output (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Max) [Max]	Current - Output	Number of Regulators	Output Type	Voltage - Output (Min/Fixed)	Control Features	Voltage Dropout (Max) [Max]	Package / Case	Output Configuration	Mounting Type	Supplier Device Package	Protection Features
Microchip Technology MIC37252WU-TR	5.5 V	125 °C	-40 °C	6 V	2.5 A	1	Adjustable	1.24 V	Enable	1 V	D2PAK (5 Leads + Tab) TO-263-6 TO-263BA	Positive	Surface Mount	TO-263-5	Over Current Over Temperature Reverse Polarity

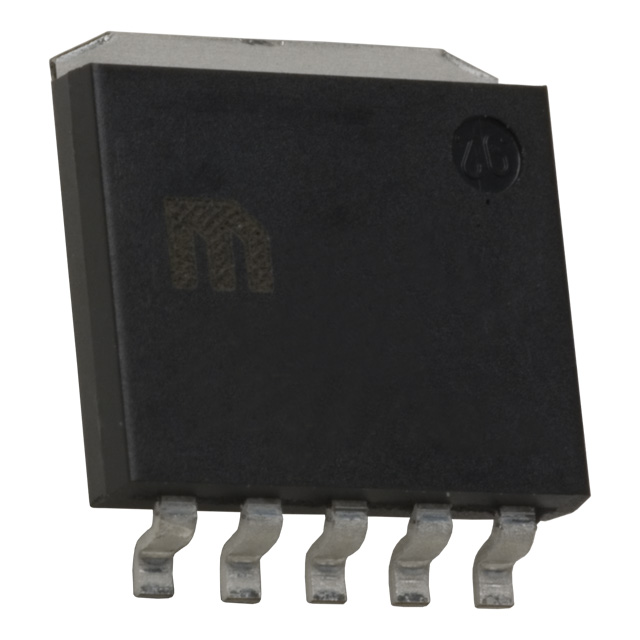

Microchip Technology MIC37252BR	5.5 V	125 °C	-40 °C	6 V	2.5 A	1	Adjustable	1.24 V	Enable	1 V	SPAK-5 (5 Leads + Tab)	Positive	Surface Mount	5-SPAK	Over Current Over Temperature Reverse Polarity
Microchip Technology MIC37252BU	5.5 V	125 °C	-40 °C	6 V	2.5 A	1	Adjustable	1.24 V	Enable	1 V	D2PAK (5 Leads + Tab) TO-263-6 TO-263BA	Positive	Surface Mount	TO-263-5	Over Current Over Temperature Reverse Polarity
Microchip Technology MIC37252BR TR	5.5 V	125 °C	-40 °C	6 V	2.5 A	1	Adjustable	1.24 V	Enable	1 V	SPAK-5 (5 Leads + Tab)	Positive	Surface Mount	5-SPAK	Over Current Over Temperature Reverse Polarity
Microchip Technology MIC37252WU	5.5 V	125 °C	-40 °C	6 V	2.5 A	1	Adjustable	1.24 V	Enable	1 V	D2PAK (5 Leads + Tab) TO-263-6 TO-263BA	Positive	Surface Mount	TO-263-5	Over Current Over Temperature Reverse Polarity
Microchip Technology MIC37252WR	5.5 V	125 °C	-40 °C	6 V	2.5 A	1	Adjustable	1.24 V	Enable	1 V	SPAK-5 (5 Leads + Tab)	Positive	Surface Mount	5-SPAK	Over Current Over Temperature Reverse Polarity
