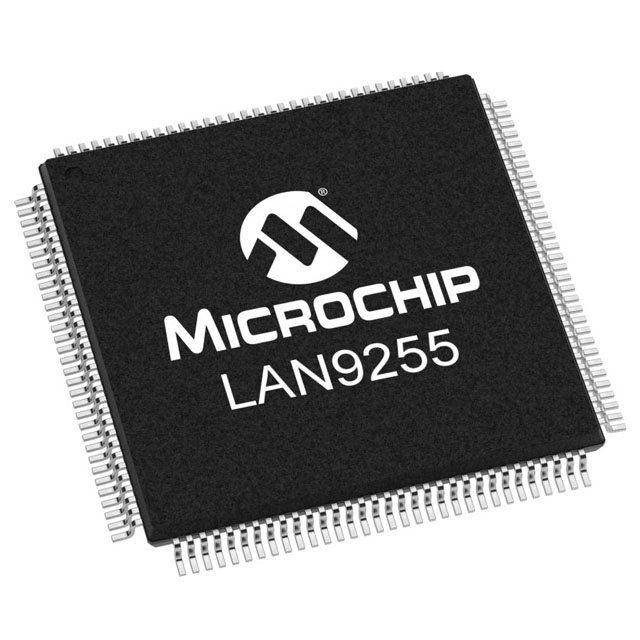

LAN9255 Series

EtherCAT Device with integrated Cortex M4F Microcontroller

Catalog

EtherCAT Device with integrated Cortex M4F Microcontroller

Part	Function	Interface	Operating Temperature [Max]	Operating Temperature [Min]	Protocol	Standards	Voltage - Supply	Package / Case	Supplier Device Package

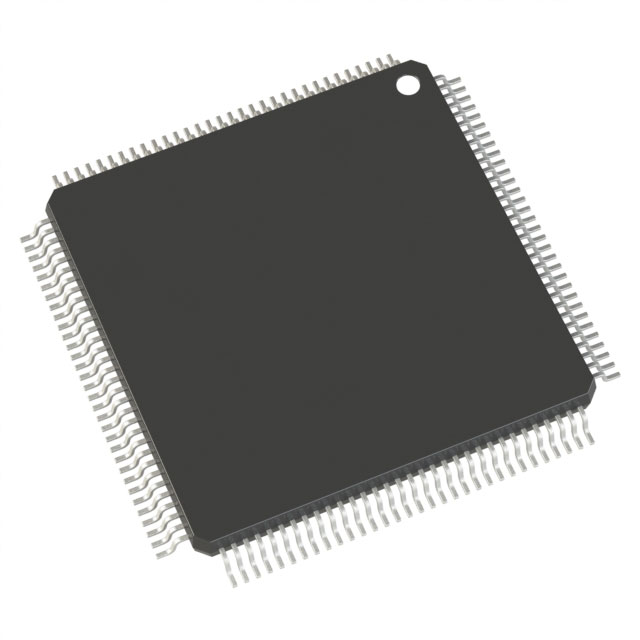

Microchip Technology LAN9255/ZMX020	Controller	Bus RMII USB	70 °C	0 °C	Ethernet	100 Base-TX PHY IEEE 802.3 USB 2.0	3.3 V	128-TQFP Exposed Pad
Microchip Technology LAN9255-I/ZMX019	Controller	Bus RMII USB	85 °C	-40 °C	Ethernet	100 Base-TX PHY IEEE 802.3 USB 2.0	3.3 V	128-TQFP Exposed Pad
Microchip Technology LAN9255-V/ZMX020	Controller	Bus RMII USB	105 ░C	-40 °C	Ethernet	100 Base-TX PHY IEEE 802.3 USB 2.0	3.3 V	128-TQFP Exposed Pad	128-TQFP-EP (14x14)
Microchip Technology LAN9255/ZMX018	Controller	Bus RMII USB	70 °C	0 °C	Ethernet	100 Base-TX PHY IEEE 802.3 USB 2.0	3.3 V	128-TQFP Exposed Pad
Microchip Technology LAN9255-V/ZMX018	Controller	Bus RMII USB	105 ░C	-40 °C	Ethernet	100 Base-TX PHY IEEE 802.3 USB 2.0	3.3 V	128-TQFP Exposed Pad
Microchip Technology LAN9255-V/ZMX019	Controller	Bus RMII USB	105 ░C	-40 °C	Ethernet	100 Base-TX PHY IEEE 802.3 USB 2.0	3.3 V	128-TQFP Exposed Pad
Microchip Technology LAN9255/ZMX019	Controller	Bus RMII USB	70 °C	0 °C	Ethernet	100 Base-TX PHY IEEE 802.3 USB 2.0	3.3 V	128-TQFP Exposed Pad

Catalog

EtherCAT Device with integrated Cortex M4F Microcontroller

Key Features

• [• Integrated SAM E53 MCU with standard peripheral suite](https://www.microchip.com/wwwproducts/en/ATSAME53N19A)

•

• [• Integrated LAN9253 with optimized EtherCAT Cycle Time](https://www.microchip.com/wwwproducts/en/LAN9253)

•

• EtherCAT* EtherCAT device controller with 8 Fieldbus Memory Management Units (FMMUs) and 8 SyncManagers

• * Dual Integrated EtherCAT PHYs (EtherCAT IN / EtherCAT OUT) with HP Auto-MDIX

• * Option to operate without ESI EEPROM

•

• Ethernet MAC* [MII/RMII connection to single port PHY or multiport Switch](https://www.microchip.com/wwwproducts/en/LAN8720A)

• * [LAN9303 Switch supported with code examples](https://www.microchip.com/wwwproducts/en/LAN9303)

• * [Flexibility to also design with LAN8770 100BASE-T1 PHY](https://www.microchip.com/wwwproducts/en/LAN8770)

Description

Microchip’s LAN9255 is an EtherCAT device controller (ESC) with Cortex M4F Microcontroller. EtherCAT functionality is delivered together with dual PHYs which each provide a full-duplex 100BASE-TX transceiver and support 100Mbps (100BASE-TX) operation. The LAN9255 supports HP Auto-MDIX, allowing the use of direct connect or cross-over LAN cables. This device provides system developers a cost-effective solution for realizing EtherCAT device solutions. The 3 port EtherCAT device controller provides 8K bytes of Dual Port memory (DPRAM), 8 SyncManagers, 8 Fieldbus Memory Management Units (FMMUs) and a 64-bit Distributed Clock. A CortexM4F controller provides a suite of peripherals including Ethernet MAC. Customers can realize multiprotocol designs in the knowledge all items are supported within the MPLABX Harmony Framework The LAN9255 is available in commercial, industrial and extended industrial temperature ranges and is packaged in 128 pin TQFP. Microchip's complimentary and confidential [MicroCHECK](https://www.microchip.com/en-us/support/design-help/design-check-services) design review service, which offers insight from the initial concept to the final PCB layout, is available to customers who are using our products in their projects. You can confidently submit your design materials in a secure and private setting, and our expert engineers will provide individualized feedback to enhance your design. MicroCHECK design review service is subject to Microchip's [Program Terms and Conditions](https://www.microchip.com/en-us/support/design-help/design-check-services/design-check-services-program-terms-and-conditions) and requires a myMicrochip account.
