FX30B Series

Catalog

CONN HEADER VERT 2POS 3.81MM

Part	Mated Stacking Heights	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Shape	Number of Positions Loaded	Contact Finish - Post	Voltage Rating	Contact Type	Material Flammability Rating	Contact Material	Connector Type	Mounting Type	Insulation Color	Shrouding	Contact Length - Post	Contact Length - Post	Insulation Material	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Termination	Fastening Type	Contact Finish - Mating	Features	Insulation Height	Insulation Height	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Applications
Hirose Electric Co Ltd FX30B-2P-3.81DSA25	25 mm	39.4 çin	1 çm	Rectangular	All	Tin	250 V	Male Blade	UL94 V-0	Copper Alloy	Header	Through Hole	Black	Shrouded - 2 Wall	0.13 "	3.3 mm	Nylon Polyamide (PA)	16 A	3.9 µin	0.099 µm	0.15 in	3.81 mm	Solder	Push-Pull	Gold	Board Guide Board Lock	19.2 mm	0.756 in	1	-55 C	105 ░C	2
Hirose Electric Co Ltd FX30B-3P-3.81DSA20	20 mm	39.4 çin	1 çm	Rectangular	All	Tin	250 V	Male Blade	UL94 V-0	Copper Alloy	Header	Through Hole	Black	Shrouded - 2 Wall	0.13 "	3.3 mm	Nylon Polyamide (PA)	15 A	3.9 µin	0.099 µm	0.15 in	3.81 mm	Solder	Push-Pull	Gold	Board Guide Board Lock	14.2 mm	0.559 "	1	-55 C	105 ░C

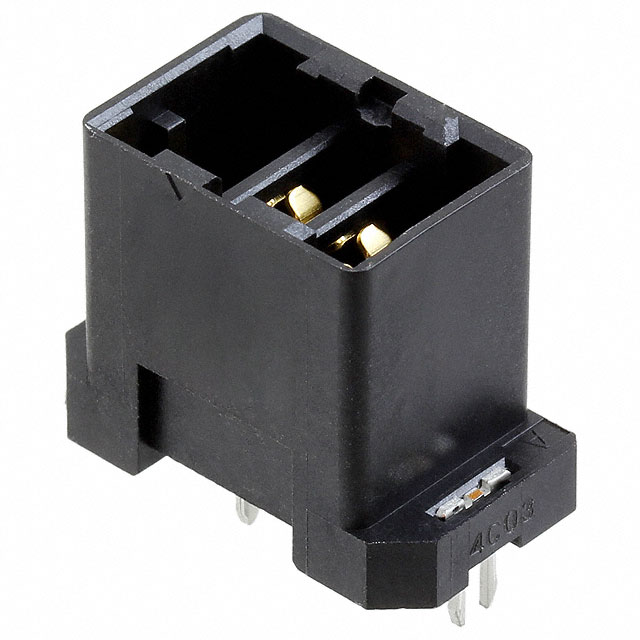

Hirose Electric Co Ltd FX30B-2S-3.81DSA		39.4 çin	1 çm	Rectangular	All	Tin	250 V	Female Blade Socket	UL94 V-0	Copper Alloy	Receptacle	Through Hole	Black		0.13 "	3.3 mm	Nylon Polyamide (PA)	16 A	3.9 µin	0.099 µm	0.15 in	3.81 mm	Solder	Latch Holder	Gold	Board Guide Board Lock	16 mm	0.63 in	1	-55 C	105 ░C	2	General Purpose

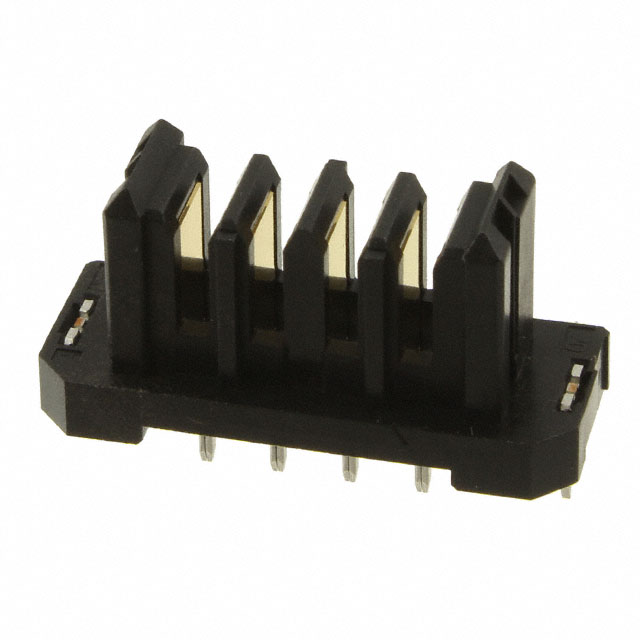

Hirose Electric Co Ltd FX30B-4P-3.81DSA20	20 mm	39.4 çin	1 çm	Rectangular	All	Tin	250 V	Male Blade	UL94 V-0	Copper Alloy	Header	Through Hole	Black	Shrouded - 2 Wall	0.13 "	3.3 mm	Nylon Polyamide (PA)	13 A	3.9 µin	0.099 µm	0.15 in	3.81 mm	Solder	Push-Pull	Gold	Board Guide Board Lock	14.2 mm	0.559 "	1	-55 C	105 ░C	4

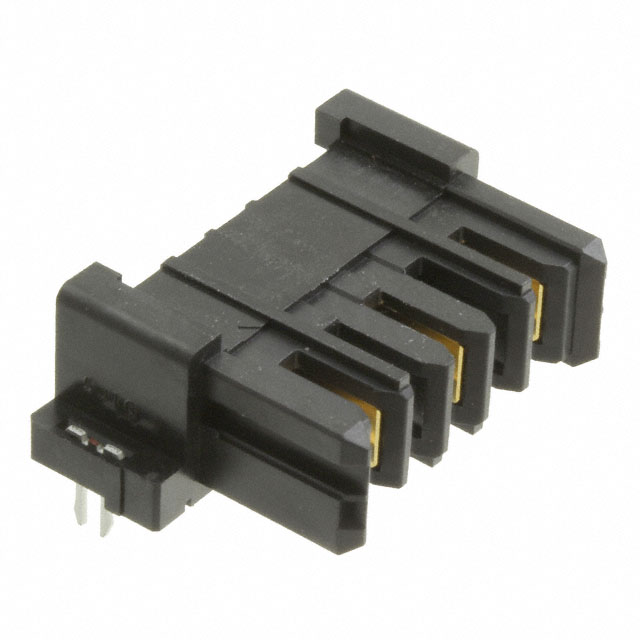

Hirose Electric Co Ltd FX30B-3P-7.62DS		39.4 çin	1 çm	Rectangular	All	Tin	250 V	Male Blade	UL94 V-0	Copper Alloy	Header	Right Angle Through Hole	Black	Shrouded - 2 Wall	0.13 "	3.3 mm	Nylon Polyamide (PA)	15 A	3.9 µin	0.099 µm	0.3 in	7.62 mm	Solder	Push-Pull	Gold	Board Guide Board Lock	11 mm	0.433 "	1	-55 C	105 ░C

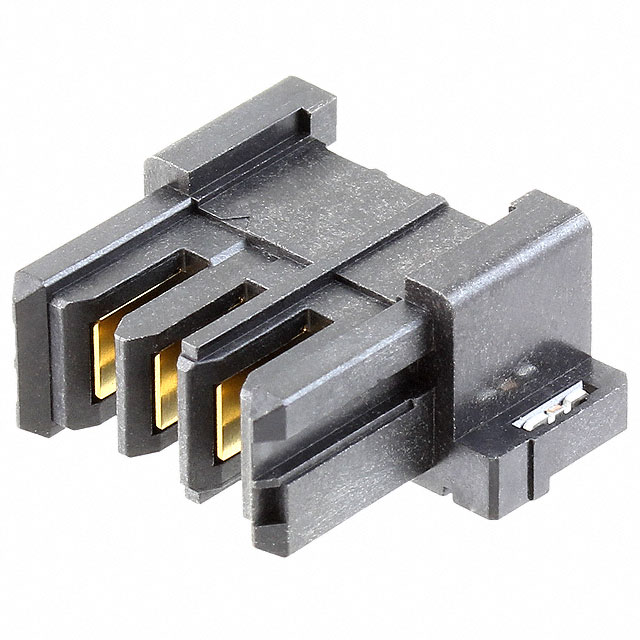

Hirose Electric Co Ltd FX30B-3P-3.81DS		39.4 çin	1 çm	Rectangular	All	Tin	250 V	Male Blade	UL94 V-0	Copper Alloy	Header	Right Angle Through Hole	Black	Shrouded - 2 Wall	0.13 "	3.3 mm	Nylon Polyamide (PA)	15 A	3.9 µin	0.099 µm	0.15 in	3.81 mm	Solder	Push-Pull	Gold	Board Guide Board Lock	11 mm	0.433 "	1	-55 C	105 ░C

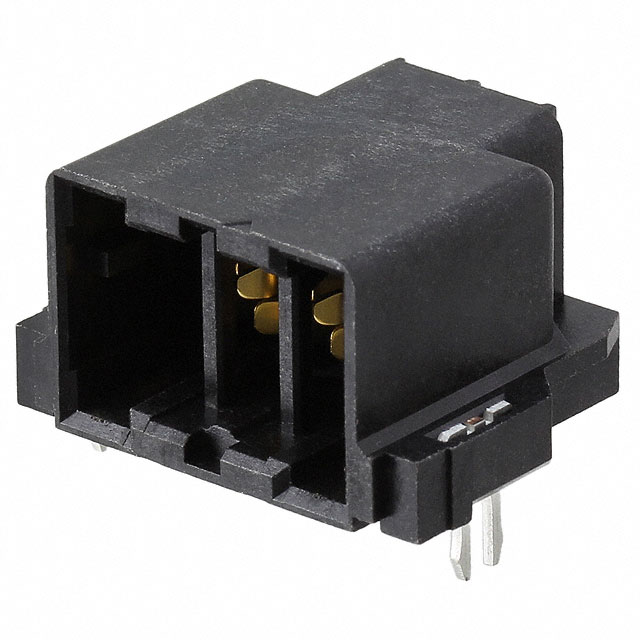

Hirose Electric Co Ltd FX30B-2S-3.81DS		39.4 çin	1 çm	Rectangular	All	Tin	250 V	Female Blade Socket	UL94 V-0	Copper Alloy	Receptacle	Right Angle Through Hole	Black		0.13 "	3.3 mm	Nylon Polyamide (PA)	16 A	3.9 µin	0.099 µm	0.15 in	3.81 mm	Solder	Latch Holder	Gold	Board Guide Board Lock	11 mm	0.433 "	1	-55 C	105 ░C	2	General Purpose

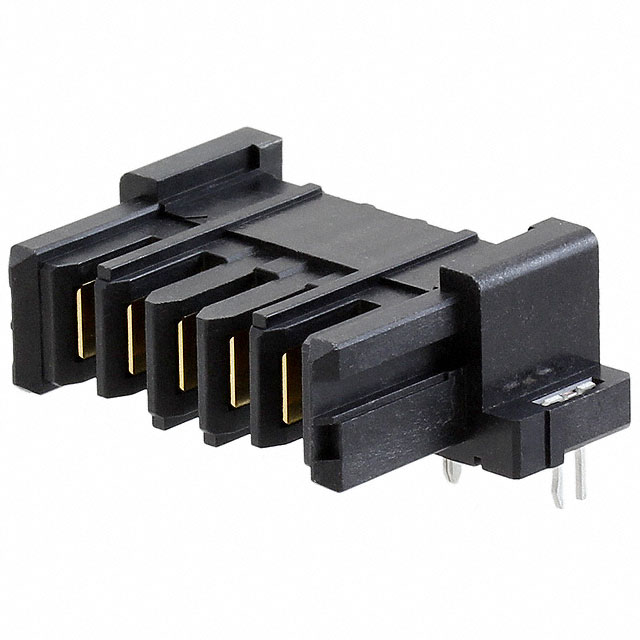

Hirose Electric Co Ltd FX30B-5P-3.81DS		39.4 çin	1 çm	Rectangular	All	Tin	250 V	Male Blade	UL94 V-0	Copper Alloy	Header	Right Angle Through Hole	Black	Shrouded - 2 Wall	0.13 "	3.3 mm	Nylon Polyamide (PA)	13 A	3.9 µin	0.099 µm	0.15 in	3.81 mm	Solder	Push-Pull	Gold	Board Guide Board Lock	11 mm	0.433 "	1	-55 C	105 ░C	5

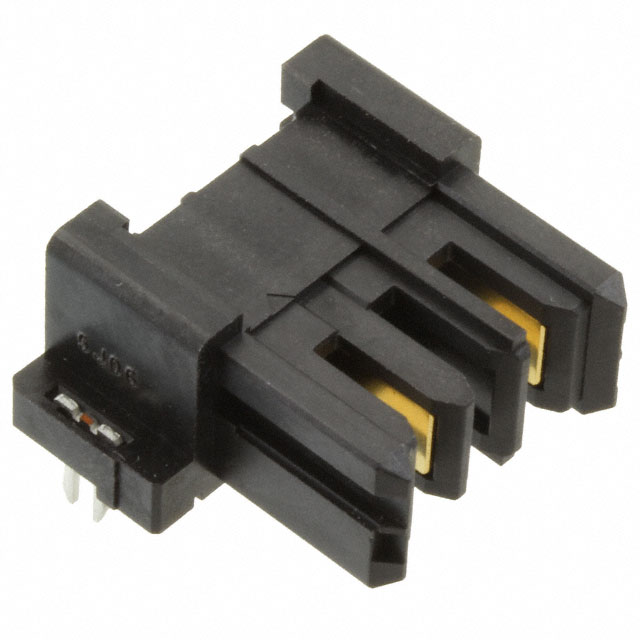

Hirose Electric Co Ltd FX30B-2P-7.62DS		39.4 çin	1 çm	Rectangular	All	Tin	250 V	Male Blade	UL94 V-0	Copper Alloy	Header	Right Angle Through Hole	Black	Shrouded - 2 Wall	0.13 "	3.3 mm	Nylon Polyamide (PA)	16 A	3.9 µin	0.099 µm	0.3 in	7.62 mm	Solder	Push-Pull	Gold	Board Guide Board Lock	11 mm	0.433 "	1	-55 C	105 ░C	2

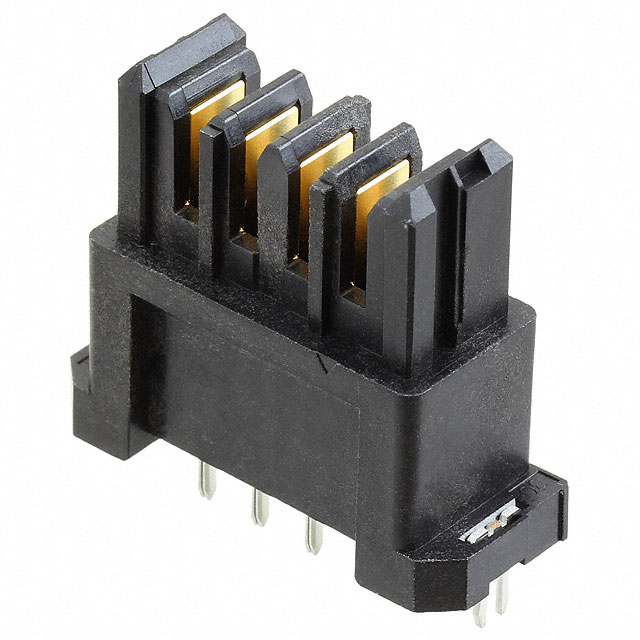

Hirose Electric Co Ltd FX30B-4P-3.81DSA30	30 mm	39.4 çin	1 çm	Rectangular	All	Tin	250 V	Male Blade	UL94 V-0	Copper Alloy	Header	Through Hole	Black	Shrouded - 2 Wall	0.13 "	3.3 mm	Nylon Polyamide (PA)	13 A	3.9 µin	0.099 µm	0.15 in	3.81 mm	Solder	Push-Pull	Gold	Board Guide Board Lock	24.2 mm	0.953 in	1	-55 C	105 ░C	4
