K.FL2 Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K
RF CONNECTORS / COAXIAL CONNECTORS
| Part | Body Finish | Dielectric Material | Center Contact Plating | Body Material | Operating Temperature [Max] | Operating Temperature [Min] | Mating Cycles | Connector Style | Fastening Type | Center Contact Material | Mounting Type | Housing Color | Frequency - Max [Max] | Contact Termination | Number of Ports | Shield Termination | Impedance | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | Gold | Liquid Crystal Polymer (LCP) | Gold | Phosphor Bronze | 90 °C | -40 C | 20 | K.FL2 | Snap-On | Phosphor Bronze | Surface Mount | Gold | 8 GHz | Solder | 1 | Solder | 50 Ohms | Female Socket Plug |

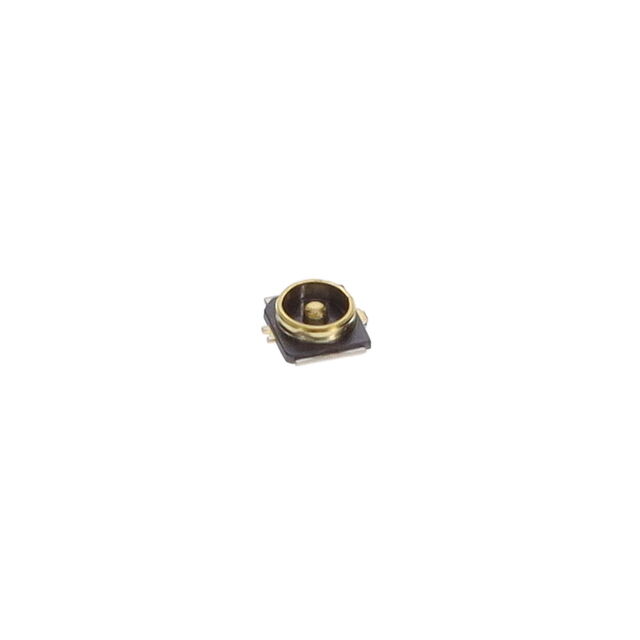

 Hirose Electric Co Ltd | Gold | Liquid Crystal Polymer (LCP) | Gold | Phosphor Bronze | 90 °C | -40 C | 20 | K.FL2 | Snap-On | Brass | Surface Mount | Gold | 8 GHz | Solder | 1 | Solder | 50 Ohms | Receptacle Male Pin |
