ADG620 Series

Catalog

IC SWITCH SPDT X 1 6.5OHM 8MSOP

Part	Voltage - Supply, Single (V+) [Max]	Voltage - Supply, Single (V+) [Min]	Number of Circuits	Channel-to-Channel Matching (ΔRon)	Mounting Type	Channel Capacitance (CS(off), CD(off)) [custom]	Channel Capacitance (CS(off), CD(off)) [custom]	-3db Bandwidth	Switch Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Switch Time (Ton, Toff) (Max) [custom]	Switch Time (Ton, Toff) (Max) [custom]	Package / Case	Package / Case [custom]	Package / Case	Charge Injection	On-State Resistance (Max) [Max]	Current - Leakage (IS(off)) (Max) [Max]	Multiplexer/Demultiplexer Circuit	Supplier Device Package	Voltage - Supply, Dual (V±) [Min]	Voltage - Supply, Dual (V±) [Max]
Analog Devices ADG620BRM-REEL7	5.5 V	2.7 V	1	700 mOhm	Surface Mount	25 pF	25 pF	190 MHz	SPDT	85 °C	-40 °C	65 ns	330 ns	8-MSOP 8-TSSOP	0.118 in	3 mm	110 pC	6.5 Ohm	250 pA	2:1	8-MSOP	-2.7 V	5.5 V

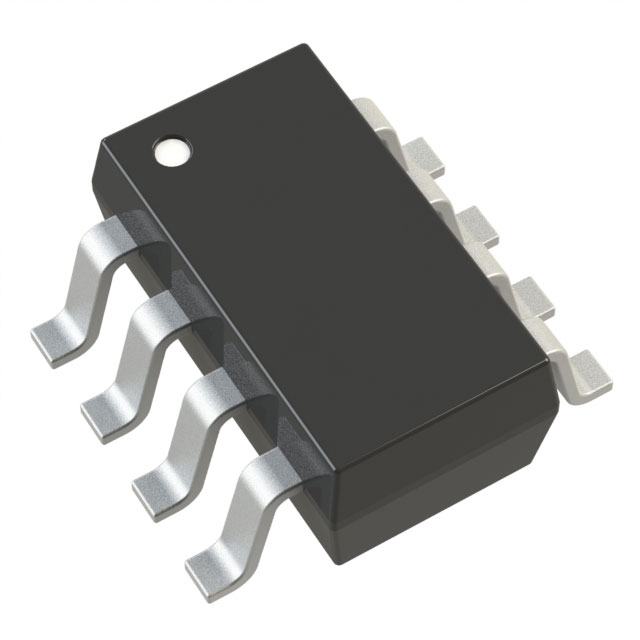

Analog Devices ADG620BRTZ-REEL7	5.5 V	2.7 V	1	700 mOhm	Surface Mount	25 pF	25 pF	190 MHz	SPDT	85 °C	-40 °C	65 ns	330 ns	SOT-23-8			110 pC	6.5 Ohm	250 pA	2:1	SOT-23-8	-2.7 V	5.5 V
Analog Devices ADG620BRM-REEL	5.5 V	2.7 V	1	700 mOhm	Surface Mount	25 pF	25 pF	190 MHz	SPDT	85 °C	-40 °C	65 ns	330 ns	8-MSOP 8-TSSOP	0.118 in	3 mm	110 pC	6.5 Ohm	250 pA	2:1	8-MSOP	-2.7 V	5.5 V
Analog Devices ADG620BRM	5.5 V	2.7 V	1	700 mOhm	Surface Mount	25 pF	25 pF	190 MHz	SPDT	85 °C	-40 °C	65 ns	330 ns	8-MSOP 8-TSSOP	0.118 in	3 mm	110 pC	6.5 Ohm	250 pA	2:1	8-MSOP	-2.7 V	5.5 V
Analog Devices ADG620BRMZ	5.5 V	2.7 V	1	700 mOhm	Surface Mount	25 pF	25 pF	190 MHz	SPDT	85 °C	-40 °C	65 ns	330 ns	8-MSOP 8-TSSOP	0.118 in	3 mm	110 pC	6.5 Ohm	250 pA	2:1	8-MSOP	-2.7 V	5.5 V
